  • Page 1 NEUATION i R O L L P R 3 5 P R O D U C T U S E R M A N U A L...

  • Page 2: Table Of Contents

    CONTENTS Product Description Safety Precautions Installation Standard Part Listing User Interface and Display Removing & lnstalling the Plate Operation Removal of Tubes from the Plate Maintenance & Cleaning 10. Warranty Statement 11. Product Disposal...

  • Page 3: Product Description

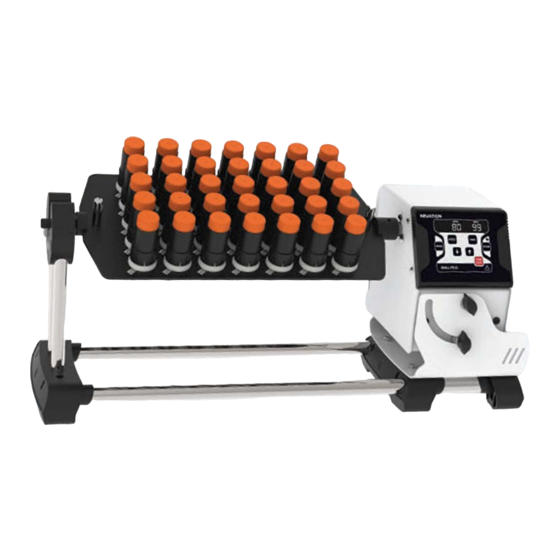

    1. PRODUCT DESCRIPTION 1.1 INTRODUCTION This digital plate rotator is equipped with a lang life BLDC motor with a small footprint. The rotating motion provides gentle rocking and offers pulse function for thorough mixing. Set up to 9 user-def ned programs with the digital display for the accurate and easy setting.

  • Page 4: Safety Precautions

    1. PRODUCT DESCRIPTION 1.6 TECHNICAL SPECIFICATIONS Motor Type Brushless DC Motion Type Rotating Speed Range 10to80 RPM Speed Accuracy ±3 RPM Speed steps ±1 RPM Timer range o to 99 mins & infinite mode Max Loading Capacity 1.5 kg Removable attached plate D i mensions (mm) 540 X 274 X 186 IP 21...

  • Page 5: Installation

    2. SAFETY PRECAUTIONS • The maximum capacity of2 kg must not exceeded. • This product must be used for specified applications only. lt must not be operated in a hazardous or flammable environment and must not be used to mix explosive or highly reactive substances.

  • Page 6: Standard Part Listing

    3. INSTALLATION 2. Keep clearance of at least 30cm from all sides to guarantee cooling efficiency. 3. Keep this away from heat or water to avoid sample temperature issues. 4. Do not place the device in such a place that it becomes difficult to operate. 3.2 CONNECTING THE POWER ADAPTOR 1.

  • Page 7: User Interface And Display

    4. STANDARD PART USTING BackSide Knob for adjusting angle of the plate 5. USER INTERFACE & DISPLAY 1. Oisplay-->s:,----, r + Speed Time Button Button ----t - .,.. 8. Prog Button Oecrement----t-+-:rl ---t '\...''_J Button Description The display shows the set speed as well as the time value. lt 1.

  • Page 8: Removing & Lnstalling The Plate

    S. USER INTERFACE & DISPLAY Press 'lncrement / Decrement' to set require value of speed, 4/5. lncrement/ time or program (Prog Mode) Decrement Press • Start/Stop • to start the operation or to stop the 6. Start/Stop ongoing operation. Press 'Pulse' once to start pulse Operation and press it again 7.

  • Page 9: Operation

    6. REMOVfNG & INSTALLING PLATE 7. OPERATION 7.1 POWERING THE DEVICE ON Power Adaptor After connecting the power adaptor to back side of the device, switch the main power supply to "ON" & then switch the device on from the rear. Make sure that tubes are loaded property before use.
  • Page 10 7. OPERATION incremental/decremental steps of 1 RPM. Speed values are saved after blinking 5 times. 7.3 TIME SETTING Press "Time" to select time value and use increment or decrement button to set run time. Run time for operation can be set between 1 minute to 99 minutes with an incremental/decremental step of 1 minute.
  • Page 11 7. OPERATION parameters by simplyturning on the program mode. To turn the program mode on, hold down "Prog" untH "Prog on• displays indicating program mode is activated. Press Oefault Mode After a few seconds, the display will show "Pl" and "speed & time value• alternatively.
  • Page 12 7. OPERATION 's.,-- --!---+ p·2 · Start 81inkin c ®��@ -:--/ Selectfflg. Program Start Bllnklng st,rt Blinltina Settina Speed V.lue Speed and time value for that particular program is now saved. Press the "Start Button" to start the program mode operation. Once set RPM is reached, the program "Px"...
  • Page 13 7. OPERATION '0 8, �� © ----, r---.. Press "'STOP'" button to stop Procram Mode ()pefation To leave Program mode, hold down the "Program" button again to turn OFF the Program mode. lt will display "Prog oft" indicating program mode is oft. ,_,, �...

  • Page 14: Removal Of Tubes From The Plate

    8. REM OVAL OF TUBES FROM PLATE In order to remove tubes from the plate, d e not try to rotate the plate by bare hands. Procedure to remove the tubes attached at the bottom cf the plate is mentioned below: 1) Single press PULSE button to rotate the plate so that the tubes at the bottom cf the plate comes at the top.

  • Page 15: Product Disposal

    10. WARRANTY STATEMENT or limitotion of lncidental or consequentia/ domages. This warranty gives you specific lego/ rights. This warronty is given expressly in 1/eu of oll other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and there are no other remedies or warranties, implied, which extend beyond the description on the face of the agreement.
  • Page 16 Accumax Lab Devices Private Limited P l ot No. IS, 16 & 32 GIDC EJectronte Pafk. SEZ., SectOf 26, Gandhtnagar, Gujar,t, Jndia � 382026. Wffllte; www.neu.ation..com...
