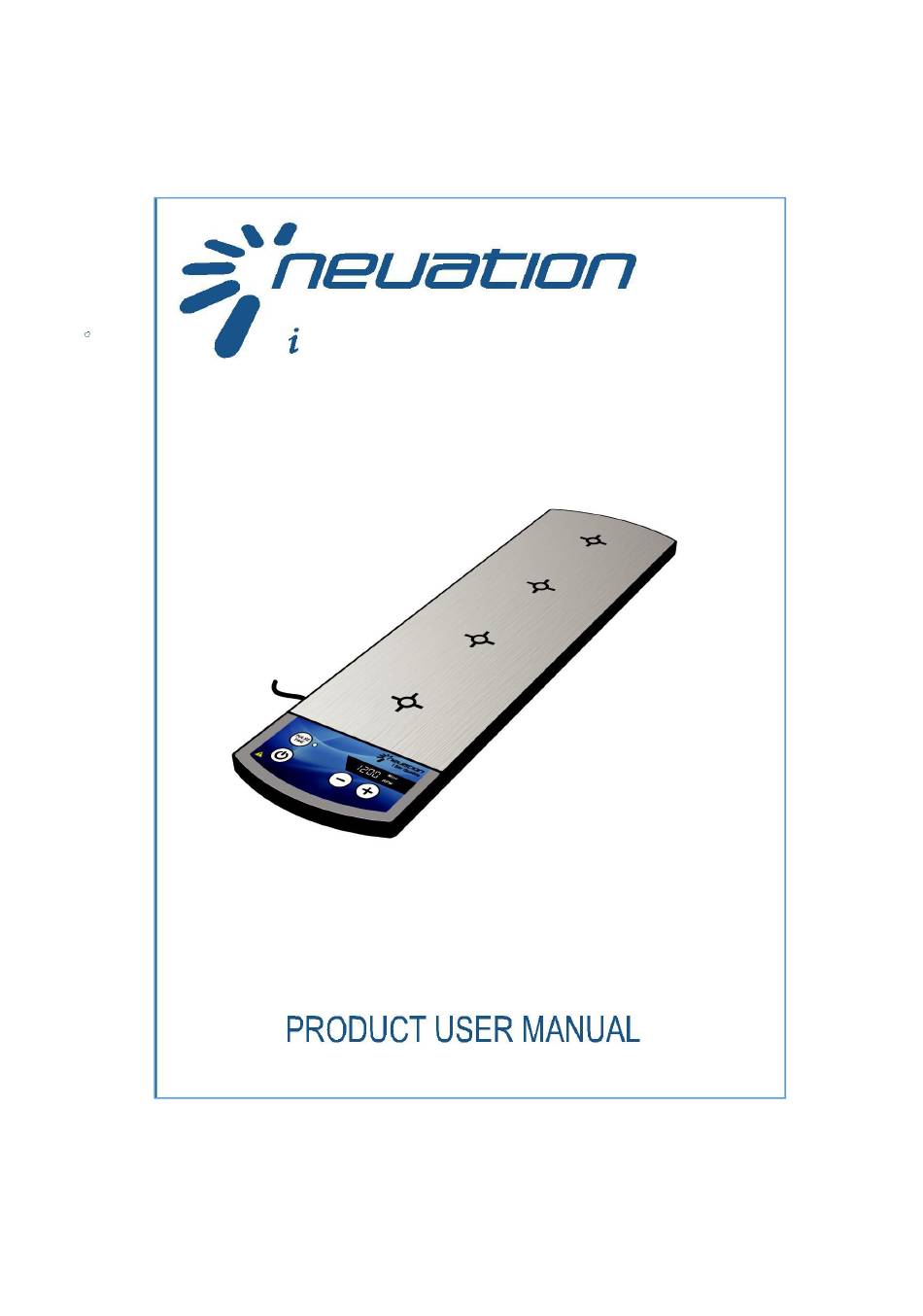

- Page 1 Stir Quattro Four Position Electromagnetic Stirrer... Address:East Room 306,3th Floor,1st Building,Shenhua Industrial Park,Meihua Road, Futian District,Shenzhen City Tel:0755-32978297 Email:hj@pce-instruments.cn...
-
Page 2: Table Of Contents
1. PRODUCT DESCRIPTION....................... 3 2. INTENDED USE........................3 3.FEATURES..........................3 4.ACCESSORIES......................... 3 5. TECHNICAL SPECIFICATIONS....................4 6. MAINTENANCE & SAFETY INSTRUCTIONS................5 6. MAINTENANCE & SAFETY INSTRUCTIONS................6 7. INSTALLATION & OPERATION....................7 7.INSTALLATION & OPERATION ....................8 7. INSTALLATION & OPERATION....................9 7. -
Page 3: Product Description

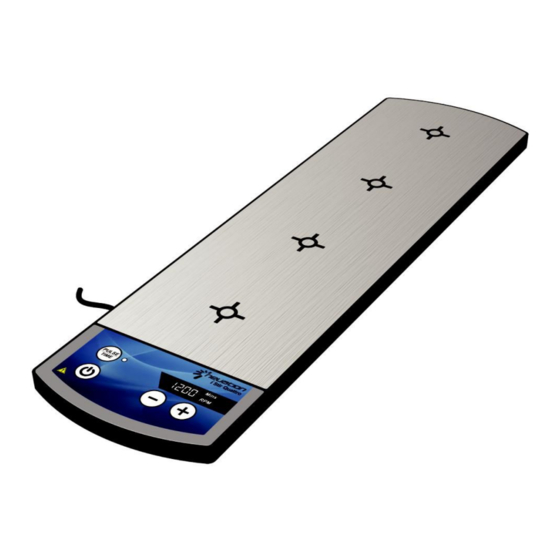

1. PRODUCT DESCRIPTION Congratulation! You are using 4 position electromagnetic stirrer designed to give synchronous stirring. Modern magnetic coil technology provides noiseless and consistent stirring. It provides high IP protection class (IP 65) with no moving parts attached to it. Setting of speed and time with digital display showing real time speed. -
Page 4: Technical Specifications
5. TECHNICAL SPECIFICATIONS Number of Stirring positions 400 ml at 1200 RPM Stirred quantity (Max) with 25mm stirring (Tested in H2O) bar per stirring position. Speed range 15 - 1200 rpm Time range 1 to 99 mins Auto direction change/Pulse Mode Auto direction change time interval 30 seconds Digital Display... -
Page 5: Maintenance & Safety Instructions
6. MAINTENANCE & SAFETY INSTRUCTIONS Read the following safety instruction before using the electromagnetic stirrer for your as well as equipment safety. 1. Do not place any steel or magnetic material on the base plate except the recommended magnetic stirring bar with beaker or flask in between. Doing this can affect the magnetism of device. -
Page 6: Maintenance & Safety Instructions
6. MAINTENANCE & SAFETY INSTRUCTIONS 10.The base plate may warm after continuous usage. Do not touch the base plate immediately after operation. 11. Process pathogenic materials only in closed vessel under a suitable extractor hood. Do not operate the appliance in explosive atmospheres, with hazardous substance or under water. 12.Only use that liquid for mixing that will not react dangerously to the extra energy produced through processing. -
Page 7: Installation & Operation
7. INSTALLATION & OPERATION The electromagnetic stirrer is provided in the box. Open the box, then remove the packaging and gently place the device on the firm & leveled surface. Take care while unpacking & do not pull the AC power adaptor as it is attached with the device. -
Page 8: Installation & Operation
7.INSTALLATION & OPERATION 1. Connect the AC power adaptor to the mains. 2. Fill the beaker or vessel with the medium or liquids to be processed then place the magnetic stirring bar in the beaker, flask or vessel. 3. Place the vessel or beaker on the center of the base plate. 4. -
Page 9: Installation & Operation
7. INSTALLATION & OPERATION TIME SETTING The default timer is set as infinite more when stirrer starts. In order to set time, Long press the “PULSE/TIME” button, to activate time mode. By default the timer will be infinite and will be seen by “... -
Page 10: Installation & Operation
7. INSTALLATION & OPERATION PULSE MODE In pulse mode, the stirring direction will be reversed every 30 seconds. In order to select the pulse mode & to reverse the direction of stirring at regular interval, single press pulse button. First set the required speed & then single press the pulse button to start stirring process in pulse mode. -
Page 11: Warranty Statement
7. WARRANTY STATEMENT This products is warranted to be free from defects in material and workmanship for a period of two (2) years from date of purchase. Your product will be duly repaired upon prompt notification in compliance with the following conditions : This warranty is valid only if the product is used for its intended purpose and within the guidelines specified in this instruction manual. -
Page 12: Warranty Statement
7. WARRANTY STATEMENT Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and that there are no other remedies or warranties, expressed or implied, which extend beyond the description on the face of the agreement.
