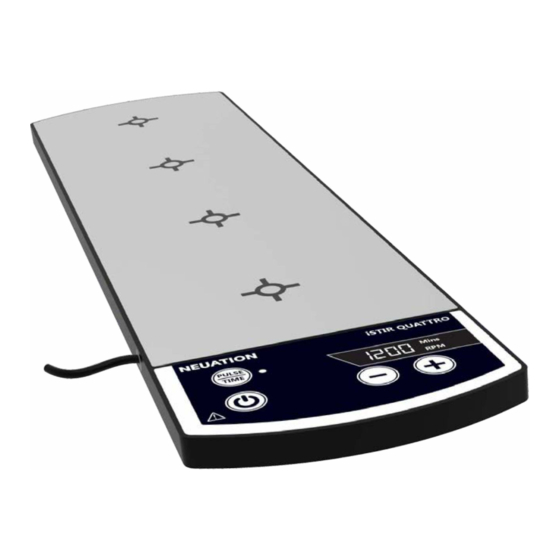

- Page 1 NEUATION iSTIR QUATTRO PRODUCT USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS 1. Product Description ............1 2. lntended Use ..............1 3. Features ................1 4. Accessories ..............2 5. Technical Specifications ..........2 6. Maintenance & Safety Precautions ........ 3 7. Installation & Operation ..........5 8 . Maintenance & Cleaning ..........8 9 . -
Page 4: Product Description
1. PRODUCT DESCRIPTION This magnetic stirrer is a 4 position electromagnetic stirrer designed to give synchronous stirring. The modern magnetic coil technology provides noiseless and consistent stirring. lt provides high IP protection dass (IP 65) with no moving parts attached to it. The setting of speed and time is simple &... -
Page 5: Accessories
4. ACCESSORIES • Power adapter & Stirrer Bar (set of 4) PTFE coated • Usermanual & Warrantycard 5. TECHNICAL SPECIFICATIONS Stirred Quantity (Max) 400ml (Tested in H 2O) Number of Stirring positions Speed Range 15 -1200 RPM Time Range 1 to 99 mins Auto Direction Change /Pulse Mode Auto Direction Change Time lnterval 30 seconds... -
Page 6: Maintenance & Safety Precautions
6. SAFETY PRECAUTION Read all safety & usage information provided in this manual • carefully before using the device. 1. Do not place any steel or magnetic material on the base plate except the recommended magnetic stirring bar with a beaker or flask in between. - Page 7 6. SAFETY PRECAUTION 10. Do ot touch the base plate imme iately afte atio The base plate may get wa m afte uous usage. 11. P ocess pathoge ic mate ials o ly i a close vessel u a suitable ext acto .
-
Page 8: Installation & Operation
7. INSTALLATION & OPERATION Open the box, then remove the packaging and gently place the device on a firm and leveled surface. Gently unpack and do not pull the AC power adaptor as it is attached with the device. The user manual should be kept near the device. - Page 9 7. INSTALLATION & OPERATION 1. Connect the AC power adaptor to the main power supply. 2. Fill the beaker or vessel with the medium or liquids to be processed. Then place the magnetic stirring bar in the beaker, or vessel. 3.
- Page 10 7. INSTALLATION & OPERATION TIME SETTING • The default tim er is set as infinite when stirrer starts. Long press the PULSE/TIME" button, to activate time mode. By default the timer will be infinite and will be seen as " t J[ "in display. •...
-
Page 11: Maintenance & Cleaning
7. INSTALLATION & OPERATION PULSE MODE • In pulse mode, the stirring direction will be reversed every 30 seconds. • In order te select the pulse mode press the pulse mode once. • First set the required speed & then single press the pulse button to start the stirring process in pulse mode. -
Page 12: Warranty Statement
9. WARRANTY STATEMENT This product is warranted to be free from defects in material and workmanship for a period of two (2) years from date of purchase. Your product will be duly repaired upon prompt notification in compliance with the following conditions: •... - Page 13 9. WARRANTY STATEMENT warranties, implied, which extend beyond the description on the face of the agreement. This warranty is only applicable to the original purchaser. • Products received without proper authorization will not be processed for warranty or service. All items returned for service should be sent with postage prepaid in the original packaging or other suitable packaging, padded to avoid damage.
-
Page 14: Product Disposal
10. PRODUCT DISPOSAL In case the product is to be disposed of, the relevant legal regulations are tobe observed. Information on the disposal of electrical and electronic devices in the European Community The disposal of electrical devices is regulated within the European Community by national regulations based on EU Directive 2012 / 19 / EU on waste electrical and electronic equipment (WEEE). - Page 16 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Seetor 26, Gandhinagar, Gujarat, India - 382026. www.neuation.com Website:...
