- Page 1 NEUATION iSHAK BL UNO VT PRODUCT USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS Introduction Intended Use Features Accessories Technical Specification Types of Clamps Installation Installing plate using O - Ring Installing Foam Operation Tips for Efficient Operation Remote Operation Safety Precautions Cleaning & Maintenance Warranty Statement Product Disposal... -
Page 5: Introduction

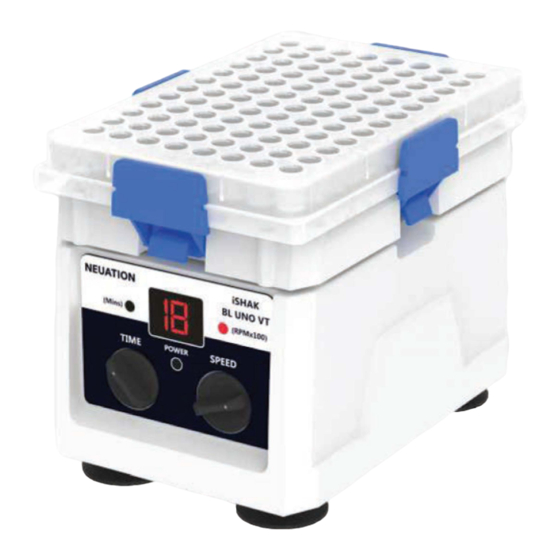

1. INTRODUCTION This is a compact personal microplate shaker designed for accurate & even mixing of samples in a microplate. lt is optimized to accept all standard plates and its 2.0 mm orbital motion allows thorough mixing across each weil. The speed can be set from 300to 1800 RPM. -
Page 6: Types Of Clamps
384 x 60 µI Maximum Volume Variable Speed 300 RPM to 1800 RPM Run Time & Modes 1- 99 min & Infinite Mode Digital Display Recommended plate size (LxW) 127.76 mm x 85.48 mm Dimensions (W x D x H) 127 x 86 x 85 mm Permissible ambient Temp. -
Page 7: Installation
USING DIFFERENT TYPES OF CLAMPS Type -A Clamps are universal clamps and are use for most standard plates. Type - B Clamps are use for larger microplates which contains outside ribs. 3. Adjustable Clamp are use to place microplate easily and lock it after placing it. 7. - Page 8 Opening Adjustable Clamp ° After opening the adjustable clamp to 90 , place the microplate as shown in the ° next figure. Gently pull the microplate inside and lock the clamp by turning 90 firmlytight the microplate on shaking platform. The front side of the shaker contain speed &...
-
Page 9: Installing Plate Using O - Ring
8. INSTALLING PLATE USING O - RING After placing or attaching the microplate between 4 clamps, if microplate is not attached firmly or it moves on the shaking platform during operation, then to attach microplate firmly, O-Rings are needed to attach first. Below figure shows that microplate is not attached firmly . -
Page 10: Operation
Placing foam on shaking platform The above image shows the image of Foam. Place this Foam on the shaking platform and use O-Ring to attach the foam. Tight the Foam by pushing the O-Ring on the back side of the champs as shown in above figure. Once the Foam is attached, place the microtubes for shaking. -
Page 11: Tipsfor Efficient Operation
For remote operation, connect the USB cable to the back side of shaker. Once USB cable is connected, controls of shaker will be disabled & only the ON/OFF switch will function. To stop operation turns OFF the power switch from back side. NOTE: Remote o peration isforthe model having USB mode. - Page 12 installation, software icon will appear on the desktop. 12.3 CONNECTING USB CABLE Connect one side of USB cable to the back side of shaker and another side to computer USB port. NOTE: Remote operation is for the model having USB mode. 12.4 UNDERSTANDING &OPERATING GU I After installing the G U I software, open G U I software by double clicking the software icon.
- Page 13 Once you connect the USB cable, the COM PORT for the shaker is detected automatically. Now click on the CONNECT button to connect shaker and computer for remote operation. After connection, the TEXT BOX will show "COM, iShak Connected". Note: ff any other device is connected after connecting Shaker then the COM PORT of software gets update.
- Page 14 start operation. To stop operation, dick on the STOP button. 12. 4 . 4 SETTI NG PROGRAM AND ITS SELECTION User can save upto 4 user defined programs. To set program, dick on the speed and time up/down scroll button of specific program and set the desired value. After setting desired speed and time value, dick on the SAVE button to save the programs.
-
Page 15: Safety Precautions
The followingtype of operation details will saved in an excel sheet. ********************************************* Date: Tuesday, December 24, 2013 Time: 2:33:22 PM 1D:SA1312AA0001 Version 1.1, D 1.1 Opera 7 Sample o e: SET SPEED 700 RPM TIME: ------------------------------------------------------- STOP SPEED 700 RPM STOP TIME: 10 MI RU TIME 0 Hour And 0... -
Page 16: Cleaning & Maintenance
After cleaning, ensure that all parts are dried. Shaker should be used for the specified application only. lt must not be operated in a hazardous or flammable environment and must not be used to mix explosive or highly reactive material. 10. -
Page 17: Product Disposal
The warranty is invalidated by any non-factory modification, which will immediately terminate all liabilities on us for the products or damages caused by its use. The buyer and its customer shall be responsible for the product or use of products as weil as any supervision required for safety. lf requested the products must be returned to the distributor in weil packed and insured manner and all shipping charges must be paid. - Page 18 national regulations based on EU Directive 2012 / 19 / EU on waste electrical and electronic equipment (WEEE). According to these regulations, any devices supplied after 13.06.05 in the business to business sphere, to which this product is assigned, may no langer be disposed off in municipal or domestic waste. They are marked with the following symbol to indicate this.
- Page 20 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Seetor 26, Gandhinagar, Gujarat, India - 382026. www.neuation.com Website:...
