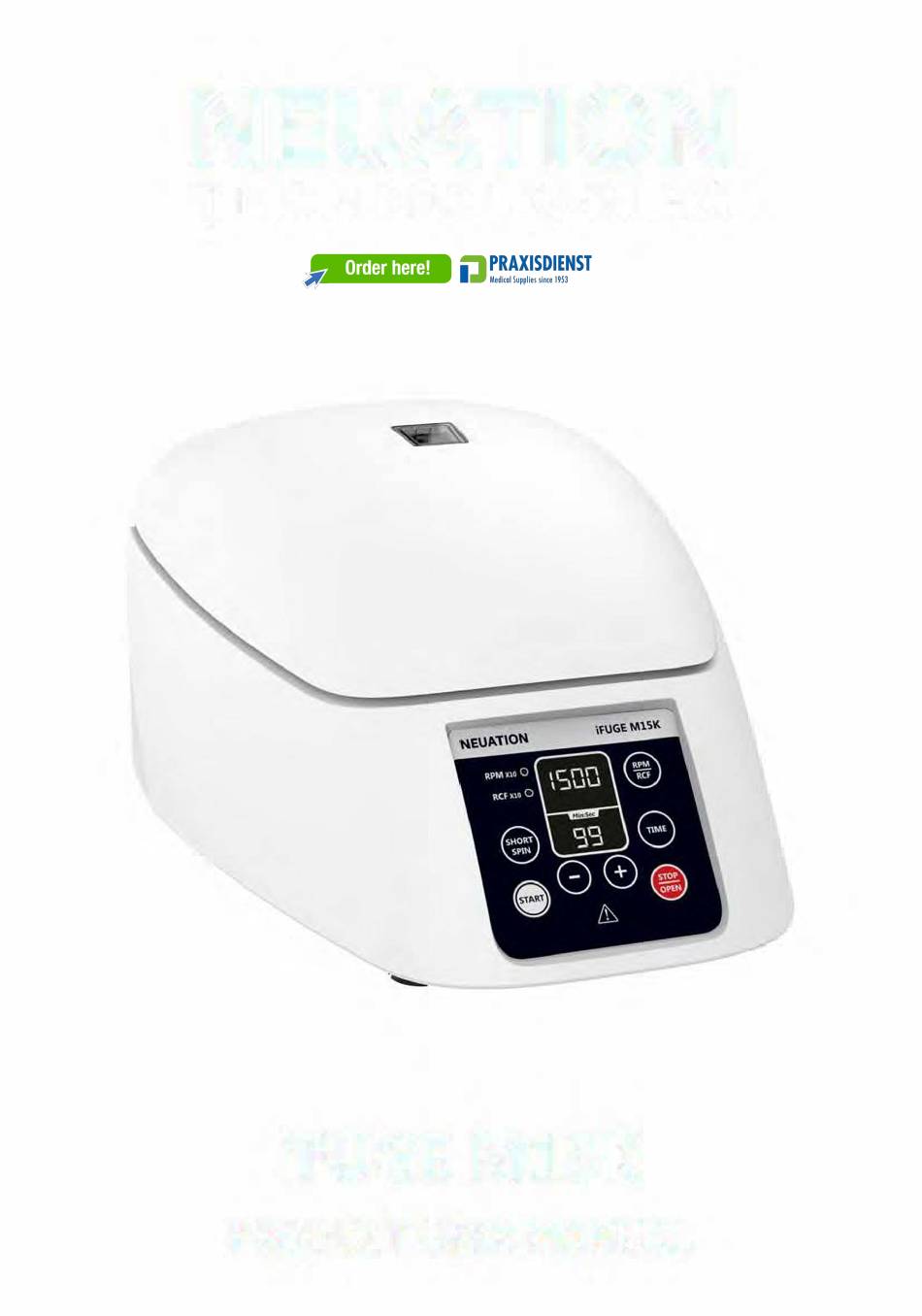

NEUATION
TECHNOLOGIES
iFUGE MlSK
PRODUCT USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iFUGE MlSK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neuation iFUGE MlSK

Summary of Contents for Neuation iFUGE MlSK

  • Page 1 NEUATION TECHNOLOGIES iFUGE MlSK PRODUCT USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. INTENDED USE 3. FEATURES 4. TECHNICAL SPECIFICATIONS 5. STANDAR D ACCES SORIES ROTOR AND REDUCED ADAPTORS SAFETY PRECAUTIONS INSTALLATION ROTOR INSTALLATION 10. BALANCING THE ROTOR 11. OPERATION 12. SAFETY PRECAUTION 13. TROUBLESHOOTING 14. MAINTENANCE AND CLEANING 15.

  • Page 3: Introduction

    1. INTRODUCTION This manual provides important safety information for this centrifuge. lt should be kept near the centrifuge for quick & easy reference. This centrifuge is equipped with maintenance free brushless DC motor drive with microprocessor controlled and a safety feature of imbalance detection. The centrifuge is designed for high speed spin downs applications.

  • Page 4: Standard Accessories

    4. TECHNICAL SPECIFICATION Weight 2.450 Kg approx {with rotor) Input Voltage 24V :-:-: 2.3A Power Consu mption 5. STANDARD ACCESSORIES • Power Adaptor: 100-240 VAC, 50 / 60 Hz, lAmp (Input), 24 V= 4A (Output) • 12 - slot rotor (Pre-installed) with reduction adaptors for 0.1 / 0.2 & 0.5ml tu bes •...
  • Page 5 7. SAFETY PRECAUTIONS • Using equipment in any manner not specified in this manual or by the manufacturer, will void the warranty. • Never move the centrifuge while the rotor is spinning. • The rotor and the rotor lid must always be securely fastened. lf the centrifuge makes unusual noise during operation, the rotor or rotor lid fit needs to be checked.

  • Page 6: Installation

    7. SAFETY PRECAUTIONS cleaned immediately using a natural cleaning liquid (like water). This is particularly important for the bores of the tu bes. lf any damage is seen, contact the service technician. • Before using cleaning or decontamination methods, other than those stipulate by the manufacturer, contact the manufacturer to ensure that the intended method will not damage the centrifuge.

  • Page 7: Rotor Installation

    8. INSTALLATION 3. The sticker on the body & jack are indicating the position of the rib on the jack. While fitting the adaptor to the unit-please match the sticker position as shown in the figure below & gently push it in. 4.

  • Page 8: Balancing The Rotor

    9. ROTOR INSTALLATION The rotor of the centrifuge is pre-installed. In case of any spillage, remove the rotor as shown in the above figure to clean the rotor and its chamber thoroughly. 9.1 RE MOVING ROTOR 1. To remove rotor, first remove the Tube Holders. 2.

  • Page 9: Operation

    11. OPERATION After properly installing the centrifuge, switch ON the centrifuge from the rear side by pressing the power switch. The lid status will be seen in the display. lf the lid is open, the display will show "Lid" and if it is closed, the set RPM will be displayed. Please ensure that the Tube Holders are inside the rotor.
  • Page 10 11. OPERATION 11.5 TIME Upon turning the power on the machine, RPM/RCF display will be of previous set timer. The timer can be set from 1 minute to 99 minutes & infinite mode. The timer can be set by using increment (+) and decrement (-) button. The set timer will automatically get saved.

  • Page 11: Safety Precaution

    12. SAFETY PRECAUTION 1. Never use the centrifuge in any manner not specified in the manual. 2. Never move the centrifuge while it's operating. 3. The roter must always be securely fastened. lf the centrifuge makes an unusual noise du ring the operation, the rotor fit needs to be checked.
  • Page 12 13. TROUBLESHOOTING Wait for the rotor to come Rotor is still spinning to a stop Centrifuge lid cannot be opened Press emergency lid release Power failure after rotor stops Load rotor symmetrically & Rotor is not loaded symmetrically restart operation Centrifuge shakes during Either a broken tube,...

  • Page 13: Maintenance And Cleaning

    14. MAINTENANCE AND CLEANING 1. The rotor and the outside of the centrifuge should be cleaned regularly with a moist cloth. 2. Ensure that while cleaning the unit it is not plugged in. 3. The brushless motor in the centrifuge does not require routine maintenance. Any required service should be performed by authorized, qualified personnel only.

  • Page 14: Product Disposal

    15. WARRANTY STATEMENT Products received without proper authorization will not be entertained. All items returned for service should be sent postage prepaid in the original packaging or other suitable carton, padded to avoid damage. We will not be responsible for damage incurred by im proper packaging.
  • Page 15 Neuation Technolo g ies Pvt. Ltd. Plot No. 15, GIDC Electronic Park SEZ Kolavada Road, Gandhinagar - 382026, Gujarat, India www.neuation.com Website:...
