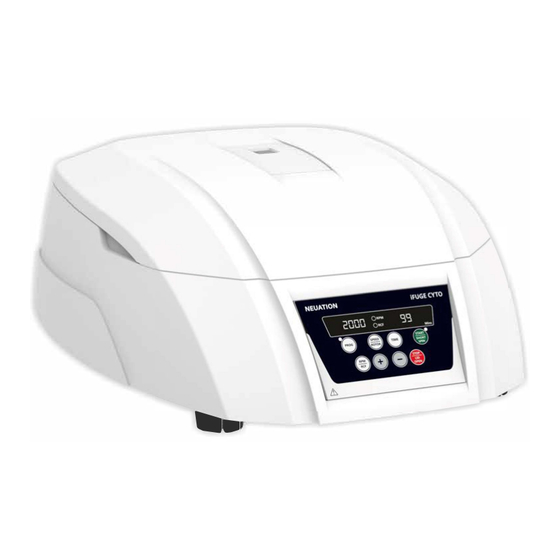

  • Page 1 NEUATION iFUGE CVTO PRODUCT USER MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Intended Use Symbol Features Technical Specification Standard Accessories Safety Precaution Installation Standard Parts Listing 10. User Interface & Display 11. Rotor Installation 12. Balancing the Rotor 13. Operating the Centrifuge 14. Maintenance and Cleaning 15. Troubleshooting 16.

  • Page 5: Introduction

    1. INTRODUCTION The Cyto centrifuge is a micro-processor controlled general purpose smart benchtop centrifuge that comes with a safety lock feature. The multifunctional and user-friendly centrifuge performs everyday cytology-based tasks and provides consistent results. lt can load up to 6 *BD Surepath Direct to Slide Kits i.e.
  • Page 6 5. TECHNICAL SPECIFICATION ± 100 RPM Speed Accuracy Speed Steps 10 RPM Run Time & Modes 1 to 999 minutes & infinite mode Acceleration time 35 ± 5 seconds Deceleration time 50 ± 5 seconds Dimension (W x D x H) 381 x 480 x 185 (mm) Weight of the equipment 8.

  • Page 7: Standard Accessories

    5. TECHNICAL SPECIFICATION Acceleration in sec Deceleration in sec 6. STANDARD ACCESSORIES 1. Power Adapter 2. T-Allen Key 3. Slide Bucket 4. Product user manual & warranty card 7. SAFETY PRECAUTIONS A\_ Read all safety & usage information provided in this manual carefully before �...

  • Page 8: Installation

    7. SAFETY PRECAUTIONS centrifuge in order te prevent possible damage by condensation. • Rotor and bucket are high-graded components which are subject to extreme mechanical strain. Even slight scratches and tears can lead to serious internal material damage. Ensure to check roter for any signs of damage before use. Rotor &...

  • Page 9: Connecting Power Adaptor

    8. INSTALLATION 8.1 LOCATION & MOUNTING Place the centrifuge on a flat and leveled surface; ensure that all the four feet of this centrifuge stands on the surface firmly. Avoid installing on a slippery surface or surface prone to vibration. °...

  • Page 10: Standard Parts Listing

    9. STANDARD PARTS USTING FrontView RearView 1. View Window 4. Power Switch 2. Groove to open the lid 5. Adaptor Port 3. Operation and setting Buttons f©r"r--_,. Rubber Mount/ Base Mount BottomView 10. USER INTERFACE & DISPLAY...

  • Page 11: Rotor Installation

    10. USER INTERFACE & DISPLAY ltem Name Function START/ Short press "START" to start the operation of Centrifuge. SH ORT SPIN Lang press "START/SHORT & hold this button after START/ SPIN setting required speed to run centrifuge for short time. SH ORT SPIN Press this button to stop the ongoing operation.

  • Page 12: Balancing The Rotor

    11.ROTORINSTALLATION T-Allen Key Motor Shaft 12. BALANCING THE ROTOR 1. Always balance the rotor before beginning the operation. Following are the process of symmetrical loading of cyto slides in the rotor. 2. Symmetrical loading of slides in the rotor is necessary. Otherwise vibration or imbalance can occur which can cause serious damage to the centrifuge.

  • Page 13: Operating The Centrifuge

    12. BALANCING THE ROTOR Err 55 will be seen indicating slides are not loaded symmetrically. To resume operation, load cyto slides symmetrically & restart the centrifuge. 4. lncorrect method of loading the cyto slides in centrifuge rotor (ref. image below) NOTE: 1) lncorrect method of /oading cyto slide can /ead to an accident.
  • Page 14 13. OPERATING THE CENTRIFUGE After connecting the power adaptor, switch ON the main power supply & the switch at the rear side of the centrifuge. Make sure to check the rotor fitment before use. Centrifuge will not operate with open lid. NOTE: Maintain a gap of 3 seconds between switch OFF and switch ON again.

  • Page 15: Imbalance Detection

    13. OPERATING THE CENTRIFUGE 13.5 PROGRAM MODE Program mode operation is the feature which allows user to save 99 programs which can have different speed and time parameters. User can use any of these program simply by turning ON the program mode. To turn ON the program mode, Lang press "PROG"...

  • Page 16: Maintenance And Cleaning

    13. OPERATING THE CENTRIFUGE rotor is not loaded symmetrically, the imbalance detector gets activated and will cut off the centrifugation. The error "Err 55" will be shown on the display. First correct the imbalance load using method described in the balancing the rotor section of this manual.

  • Page 17: Warranty Statement

    15. TROUBLESHOOTING After the error 01 please do power oft and then power on. After that use the Lid not close perfectly Err 1 emergency lid through the allen key on the clockwise rotation lf lid is closed and display Make power oft and then power on.

  • Page 18: Product Disposal

    16. WARRANTY STATEMENT exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and that there are no other remedies or warranties, expressed or implied, which extend beyond the description on the face of the agreement.
  • Page 20 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Seetor 26, Gandhina g ar, Gu j arat, lndia - 382026. www.accumaxlab.com Website:...
