CONTENTS INTRODUCTION INTENDED USE SALIENT FEATURES STANDARD ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS INSTALLATION Location and Mounting USER INTERFACE AND DISPLAY OPERATING THE CENTRIFUGE Switch on the Centrifuge • Speed Setting • Time Setting Acc/Dcc • Quick Spin • PEdit program Rotor Start &...

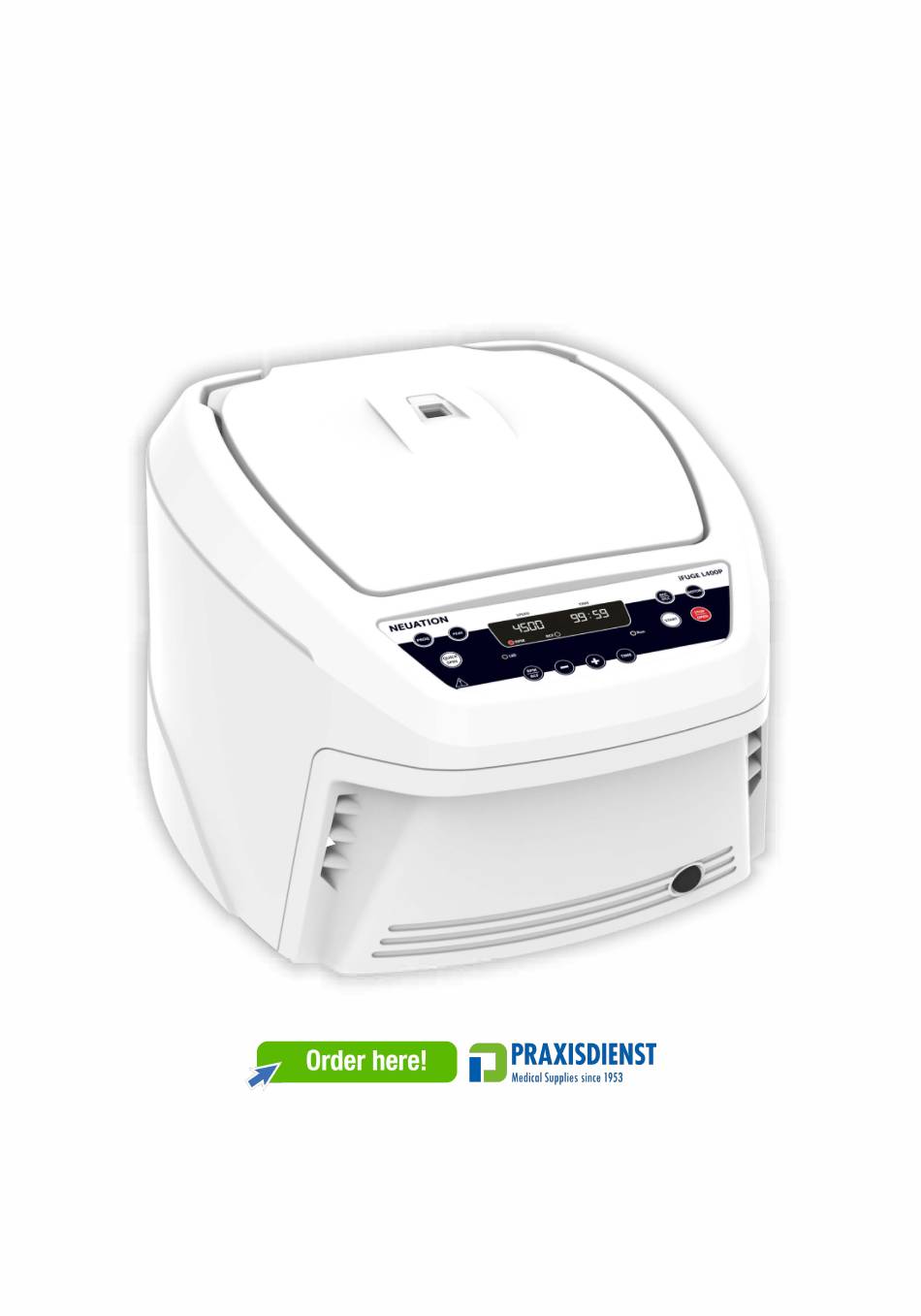

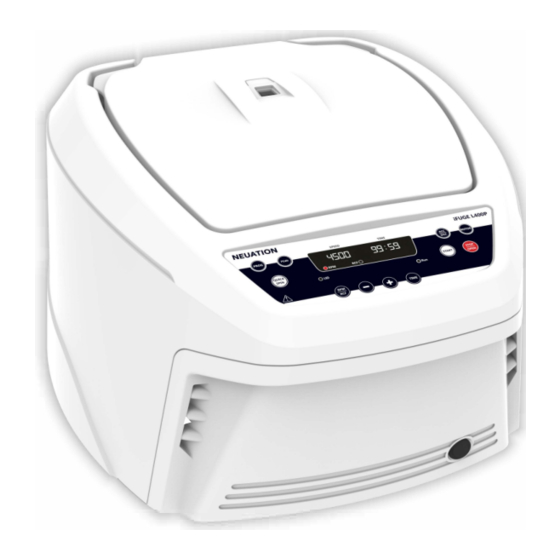

1. INTRODUCTION This centrifuge is equipped with a maintenance free drive, a large display & simple interface for efficient operation for daily lab usage. The programmable centrifuge can deliver up to 4500 RPM and can accommodates different types of rotors. lt features various programmable mode to save time &...
± 100 rpm Speed Accuracy Run Time 1 min to 99 mins & infinite mode Min. Acceleration Time 30 seconds Min. Deceleration Time 30 seconds Noise Level <65 dB Ambient Temperature ° 5 - 40 Permissible Relative Moisture <80% Size (LX B X H) 475 x 585 x 325 mm Weight 23 Kg (without rotor)
potential hazardous material within the clearance area/envelope. • Equipment if used in any manner not specified in this manual or by the manufacturer can result in the lapse of the product warranty. • Repairs must only be performed by authorized service technician. •...
8. USER INTERFACE & DISPLAY ®000 ltem Button Name Function Single press, motor will start as per selected rpm and time if lid closed. Startbutton works only if lid closed. Start Motor start or stop, indicates with LED Single press stop/open button, will stop motor as per defined DCC time if motor is running.
Press PRG button to select the program from 1-99. The different parameters can be set in each program for quick selection. Press hold for immediate centrifugation up to last set Quick Spin 9. OPERATING THE CENTRIFUGE SWITCH ON THE CENTRIFUGE After connecting the power cord.
PRG: Press PRG button to select the program from 1-99. The different parameters can be set in each programm for quick selection. To set parameters in each program follow the parameters (Speed, time & Acc/Dcc) as described above. To select from programs press using +/- button for increment or decrement.
L30-134 Rotor 9 6x50 ml 4500 2644 L30-137 Rotor 10 24x 15 ml 4500 2852 L30-131 Rotor 11 4500 16 x 15 ml 3144 L30-132 Rotor 12 12 x 15 ml 4500 3144 L30-133 Rotor 13 8x 15 ml 4500 2644 L30-138 Rotor46...
Page 12
ERROR PROBLEM SOLUTION No main power Power check & proper plug-in of connection. mains cable at both ends. No display Power failure Check the mains fuse of the lab. lmproper connection. Connect adaptor properly. Lid not closed correctly. Close lid correctly. Error with lid closing and Contact service.
• Maintain 3 seconds gap between switch OFF and switch ON. Instant ON-OFF can lead to a reset, erasing last run memory. • lf motor gets hat due to which there will be fluctuation in speed value then allow centrifuge to get cool for atleast 30 minutes. Do not do any operation for 30 minutes.
observed. 13. PRODUCT DISPOSAL Information on the disposal of electrical and electronic devices in the European Community The disposal of electrical devices is regulated within the European Community by national regulations based on EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).
Page 16
Neuation Technolo g ies Pvt. Ltd. Plot No. 15, GIDC Electronic Park SEZ Kolavada Road, Gandhinagar - 382026, Gujarat, India www.neuation.com Website:...
