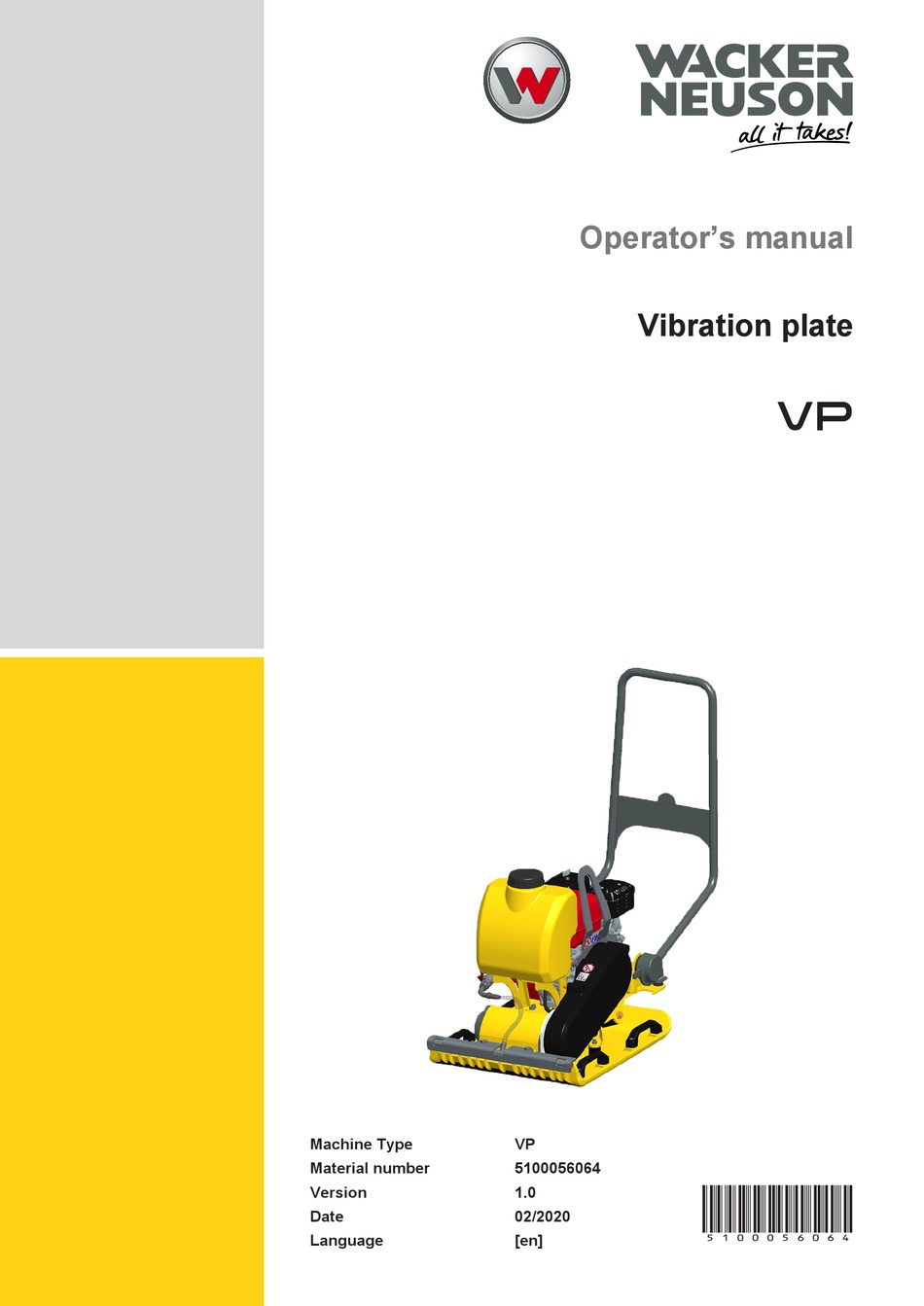

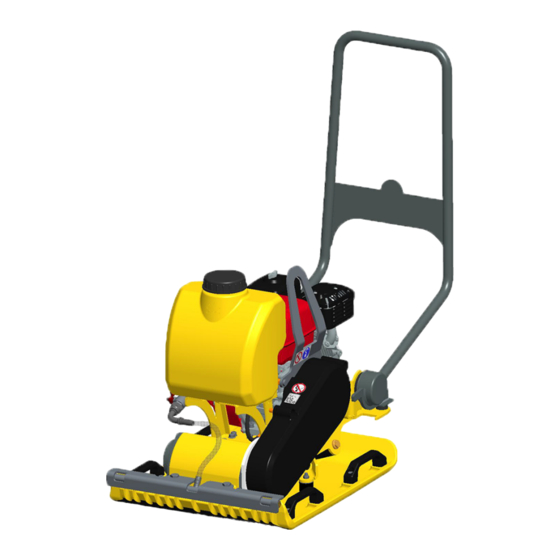

- Page 1 Operator’s manual Vibration plate Machine Type Material number 5100056064 5100056064 Version Date 02/2020 Language [en]...
- Page 2 Violations of legal regulations, in particular of the copyright protection, will be subject to civil and criminal prosecu- tion. Wacker Neuson Produktion GmbH & Co. KG reserves the right to change its products and their technical specific- ations for further technical development at any time without any claim to changes to machines already delivered.
-
Page 3: Table Of Contents
Prerequisites and preparations ....................... 25 Lifting the machine.......................... 25 Lashing the machine........................ 26 Commissioning Tests before commissioning ...................... 27 Safety instructions for operation ..................... 27 Putting into operation ........................ 28 Operation [en] | 02/2020 | 5100056064 | VP | Operator’s manual... - Page 4 Final shutdown.......................... 40 Accessories 12.1 Accessories............................. 41 Technical data 13.1 General instructions ........................ 42 13.2 Noise and vibration data ......................... 42 13.3 VP .............................. 42 13.4 Combustion engine ......................... 46 Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
-
Page 5: Ec Declaration Of Conformity
EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Wackerstraße 6, D-85084 Reichertshofen This declaration of conformity is issued under the sole responsibility of the manufacturer. Product VP1135 Product type Vibratory plate Function of product Soil compaction... - Page 6 EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Wackerstraße 6, D-85084 Reichertshofen This declaration of conformity is issued under the sole responsibility of the manufacturer. Product VP1340 Product type Vibratory plate Function of product Soil compaction...
- Page 7 EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Wackerstraße 6, D-85084 Reichertshofen This declaration of conformity is issued under the sole responsibility of the manufacturer. Product VP1550 Product type Vibratory plate Function of product Soil compaction...
- Page 8 EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Wackerstraße 6, D-85084 Reichertshofen This declaration of conformity is issued under the sole responsibility of the manufacturer. Product VP2050 Product type Vibratory plate Function of product Soil compaction...
-
Page 9: Preface
This operator’s manual is not a manual for extensive maintenance or re- pair work. Such work must be carried out by Wacker Neuson Service or by technically trained personnel. The Wacker Neuson machine must be operated and maintained in accordance with the instructions in this oper- ator’s manual. -
Page 10: Accident Prevention Regulations
EC directives. Accident prevention regulations In addition to the notes and safety instructions in this operator’s manual, the local accident prevention regulations and the national industrial safety regulations apply. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 11: Wacker Neuson Contact 2.4
Variant-dependent components that are not in- cluded in the scope of delivery can also be described. Wacker Neuson reserves the right to change the information in this oper- ator's manual without notice. It must be ensured that any changes or additions made by the manufac- turer are immediately incorporated into this operator’s manual. - Page 12 5100029053 VP2050Aw 5100029052 VP2050Aw CN 5100039664 VP1135A US 5100029064 VP1135AW US 5100029063 VP1340A US 5100029059 VP1340AW US 5100029058 VP1550A US 5100029055 VP1550AW US 5100029054 VP2050A US 5100029051 VP2050AW US 5100029050 Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
-
Page 13: Usage
The following activities, among others, are not intended: • Compaction of strongly cohesive soils. • Compaction of frozen soils. • Compaction of hard, non-compactable soils. • Compaction of non-load-bearing soils. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 14: Safety
Failure to follow these instructions may result in electric shock, fire and/or serious injury, and damage to the machine and/or other ob- jects. Keep safety instructions and information for the future. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 15: Structual Changes 4.3
• When opening of the machine and permanent removal of compon- ents. • Installation of spare parts that do not come from Wacker Neuson or are not equivalent in design and quality to the original parts. • Attachment of accessories of any kind that do not originate from Wacker Neuson. -
Page 16: Obligations Of The Operator
The safety instructions in this chapter contain the "General safety instruc- tions", which must be listed in the operator’s manual in accordance with the applicable standards. It may contain instructions which are not relev- ant for this machine. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... - Page 17 Risk of hearing damage if the country-specific noise limit is ex- ceeded! Working with the machine without hearing protection can lead to hearing damage in the long-term. ► Wear ear protectors. ► Work attentively and cautiously when using hearing protection. [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
-
Page 18: Specific Safety Instructions For Vibration Plates
• When operating the machine on inclined surfaces, always approach gradients from below and always stand above the machine on the slope. The machine could slip or tip over. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 19: Safety Features 4.10
WARNING Hot exhaust! Contact may cause burns. ► Only operate the machine if the safety features are correctly fitted. ► Do not change or remove safety devices. V-belt guard [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 20: Maintenance
• Threaded fittings with adhesive protection/liquid adhesives (e.g. Loc- tite) must be cleaned after loosening and provided with new adhes- ive. Information Observe the instructions of the liquid adhesive manufacturer. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... - Page 21 • The engine surface and exhaust system can become very hot after only a short time. Risk of burns! • Do not use jump start sprays. These can cause misfiring and engine damage. Fire hazard! [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
-
Page 22: Description Of The Machine
► Keep all safety, warning and operating instructions on the machine in a clearly legible condition. ► Replace missing or damaged labels and signs immediately. Fire hazard! Smoking and open fire prohibited. No lifting point. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 23: Components 5.3
Always keep the displays and controls of the machine dry, clean and free of oil and grease. Do not lock, manipulate or alter the machine operating elements in an in- admissible manner. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... - Page 24 Description of the machine 5.4 Control elements Engine switch Handle reversing starter Throttle lever Choke lever Fuel cock Guide bracket Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
-
Page 25: Transportation
ü Only use certified lifting and fastening gear. Fold down the guide bracket when lifting and transporting. Attach suitable sling to central suspension 1. Load the machine into or onto the transport vehicle. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 26: Lashing The Machine
Only use the lashing points provided for this purpose to secure the ma- chine. ▪ Tie down the machine as shown. ð The machine is secured against unrolling, slipping and tipping over. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 27: Commissioning
Determine the maximum fill height by compaction tests or soil samples. Shaking in cobblestones ▪ To avoid damage to the machine or compaction material, use a slid- ing device, see Accessories on page 41 [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 28: Putting Into Operation
Move the fuel cock 1 into position A. Move choke lever 2 to position A when the engine is cold. Move the choke lever to position B when the engine is warm. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... - Page 29 ð Pull the starting handle slightly until resistance is felt, then pull it strongly. Slowly return the starting handle. Move choke lever to position A for starting, move choke lever back to position B while the engine is warm. ð Engine runs. [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
-
Page 30: Operation
Taking the machine out of operation Move the throttle lever 1 to position B. Move the engine switch 2 into position B. Move the fuel cock 3 into position B. ð Let the machine and engine to cool down. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 31: Maintenance
Burn hazard due to hot engine oil! Splashes of hot oil can cause burns to the skin. ► Switch off the engine and let it cool down. ► Wear protective gloves. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 32: Maintenance Plan
► Collect contaminated water and dispose of it in an environmentally friendly manner. Maintenance plan NOTICE Danger of engine damage! ► When commissioning new machines, an oil change must be carried out once after 20 operating hours. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 33: Maintenance Work 9.3
Do not aim high-pressure cleaner directly at air intake area and electrical components. Do not hold the high-pressure cleaner too close to the machine in order to avoid damage to labels and sensitive components. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... - Page 34 Leave to dry. Immerse in new engine oil, see Technical data on page 42 Press out the filter insert. ð Excess engine oil will smoke when the engine is started. Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
- Page 35 ð Fill engine oil to the upper fill level limit 2, do not overfill. ▪ Tighten the engine oil dipstick again. 9.3.5 Replacing engine oil Remove dirt. Provide a suitable container for draining the used oil. Unscrew engine oil dipstick 1. [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
- Page 36 Cleaning the deposit cup Move the fuel cock 3 into position B. Remove deposit cup, filter and O-ring 2. Clean and dry deposit cup and filter. Replace the O-ring, filter and sedimentation cup. Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
- Page 37 Remove outer V-belt pulley half. Remove intermediate pulleys (as a rule, removing one pulley is suf- ficient). Align and secure the removed intermediate pulleys and the outer V- belt pulley half. [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
- Page 38 Information When tightening the nuts, turn the V-belt pulley to avoid jamming the V- belt. Tighten the nuts, tightening torque 25 Nm. Fit the V-belt guard, tightening torque 15 Nm. Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
-
Page 39: Malfunctions
No vibration when the engine is run- V-belt worn. Change V-belt. ning. Clutch linings worn out. Have the clutch linings replaced.* * Have this work carried out by a service partner. [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 40: Decommissioning
Professional disposal of this machine avoids negative effects on human health and the environment, helps with the targeted treatment of pollut- ants and makes it possible to recycle valuable raw materials. Operator’s manual | VP | 5100056064 | 02/2020 | [en]... -
Page 41: Accessories 12.1 Accessories
Water tank see Safety in- Water tank with continuously adjustable sprinkler system, structions for operation on page 28 Slide mechanism see Safety instructions for operation on page 27 Surface protection, [en] | 02/2020 | 5100056064 | VP | Operator’s manual... -
Page 42: Technical Data
5100029065 Material number engine 5100045994 5100045994 Centrifugal force [kN] Vibrations [Hz] Vibrations [1/min] 5880 5880 Area output* [m2/h] Flow [m/min] Gradeability [%] 36,4 36,4 Length (drawbar in working position) [mm] Operator’s manual | VP | 5100056064 | 02/2020 | [en]... - Page 43 Storage temperature range [°C] -15 - +40 -15 - +40 Sound pressure level at operator station LpA [dB(A)] Sound power level LWA, measured [dB(A* Sound power level LWA guaranteed [dB(A)] [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
- Page 44 ** Corresponds to the installed net power according to Directive 2000/14/EC. Type VP1550Aw VP2050A Material number machine 5100029056 5100029053 Material number engine 5100045995 5100045995 Centrifugal force [kN] Vibrations [Hz] Vibrations [1/min] 5880 5880 Area output* [m2/h] Flow [m/min] Operator’s manual | VP | 5100056064 | 02/2020 | [en]...
- Page 45 75W-90 API GL-4 Operating temperature range [°C] -15 - +40 -15 - +40 Storage temperature range [°C] -15 - +40 -15 - +40 Sound pressure level at operator station LpA [dB(A)] [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
-
Page 46: Combustion Engine
* Determined value of the CO2 emission during engine certification without consideration of the applications on the machine. Engine manufacturer Honda Material number engine 5100045995 Engine type GX 160 Combustion processes four-stroke Cooling Cylinder Cubic capacity [cm3] Inclined position max. [°] Fuel type Gasoline Operator’s manual | VP | 5100056064 | 02/2020 | [en]... - Page 47 Spark plug type NGK BP-6 ES Electrode gap [mm] 0,7 - 0,8 * Determined value of the CO2 emission during engine certification without consideration of the applications on the machine. [en] | 02/2020 | 5100056064 | VP | Operator’s manual...
- Page 50 Wacker Neuson Produktion GmbH & Co. KG Wackerstraße 6 D-85084 Reichertshofen Tel.: +49 8453 340-0 EMail: service-LE@wackerneuson.com www.wackerneuson.com Material number: 5100056064 Language: [en]...
