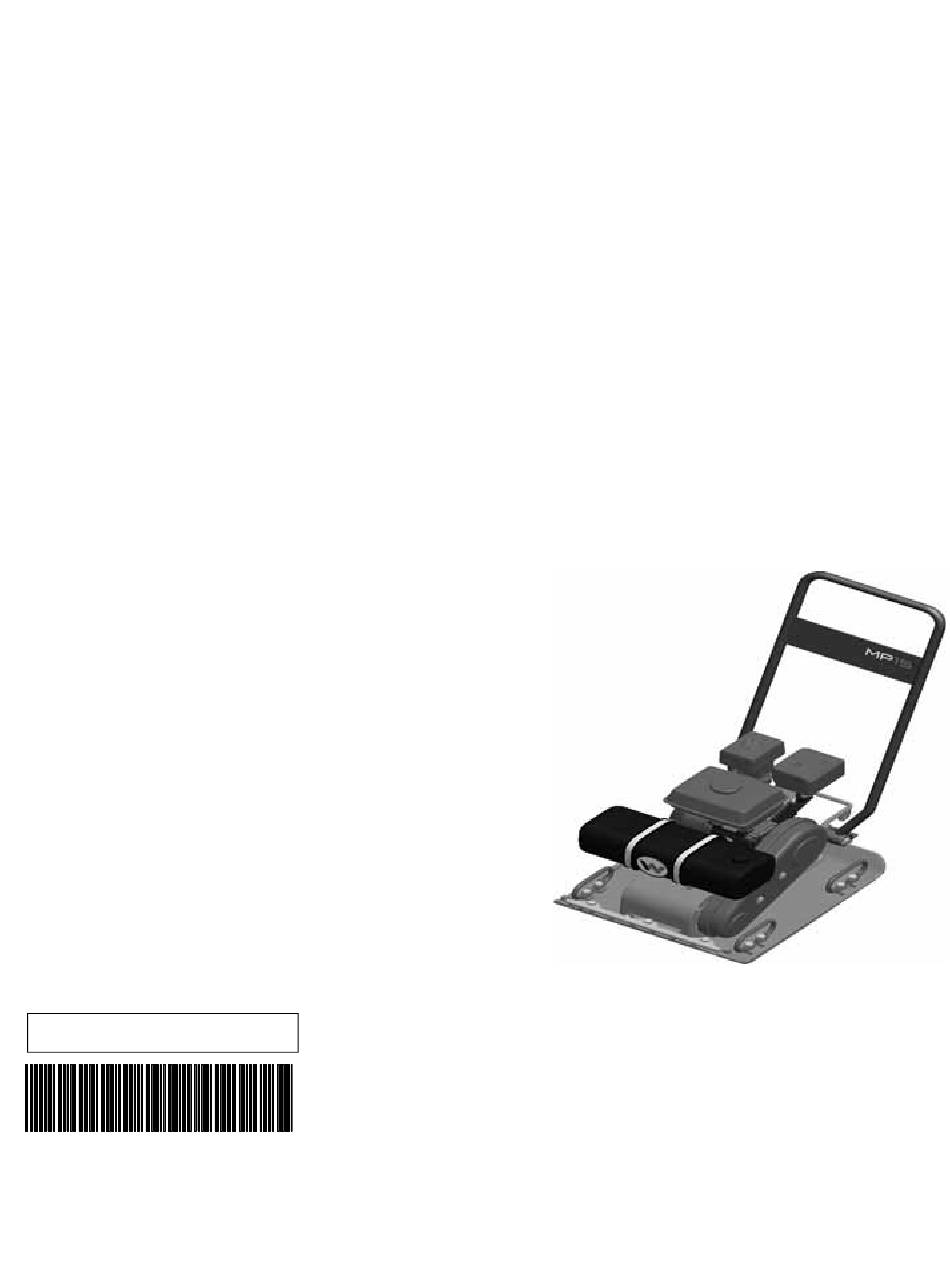

  • Page 1 Operator’s Manual Vibroplate MP15 5000403539 0911...
  • Page 2 This publication may be photocopied by the original purchaser of the machine. Any other type of reproduction is prohibited without express written permission from Wacker Neuson Corporation. Any type of reproduction or distribution not authorized by Wacker Neuson Corporation represents an infringement of valid copyrights. Violators will be prosecuted. Trademarks All trademarks referenced in this manual are the property of their respective owners.

  • Page 3: Table Of Contents

    MP15 Table of Contents Foreword Emission System Control Information Safety Information Laws Pertaining to Spark Arresters ............5 Operating Safety .................. 6 Operator Safety while using Internal Combustion Engines ....7 Service Safety ..................8 Label Locations ..................9 Warning and Informational Labels ............10 Technical Data Engine Data ..................
  • Page 4 MP15 Table of Contents Maintenance Periodic Maintenance Schedule ............18 Spark Plug ..................20 Air Cleaner ..................21 Engine Oil ................... 22 Drive Belt .................... 23 Exciter Lubrication ................24 Cleaning Plate ..................24 Lifting Machine ................... 25 Transporting Machine ................. 26 5.10...
  • Page 5 Foreword This manual provides information and procedures to safely operate and maintain this Wacker Neuson model. For your own safety and protection from injury, carefully read, understand and observe the safety instructions described in this manual. Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact Wacker Neuson Corporation.
  • Page 6 Emission Control System Information Emission Control Systems Information and Warranty The Emission Control Warranty and associated information is valid only for the U.S.A., its territories, and Canada. Emission Control Systems Warranty Statement See the supplied engine owner’s manual for the applicable exhaust and evaporative emission warranty statement.

  • Page 7: Safety Information

    MP15 Safety Information Safety Information This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 8: Operating Safety

    These areas get hot and may cause burns. 2.2.3 Do not use accessories or attachments that are not recommended by Wacker Neuson. Damage to equipment and injury to the user may result. 2.2.4 NEVER operate the machine with the beltguard missing. Exposed drive belt and pulleys create potentially dangerous hazards that can cause serious injuries.

  • Page 9: Operator Safety While Using Internal Combustion Engines

    MP15 Safety Information Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. Failure to follow the WARNING warnings and safety standards could result in severe injury or death.

  • Page 10: Service Safety

    A hot muffler could ignite the debris and start a fire. 2.4.6 Replace worn or damaged components with spare parts designed and approved by Wacker Neuson. 2.4.7 Disconnect the spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up.

  • Page 11: Label Locations

    MP15 Safety Information Label Locations wpmgr008608 wpm_si000617gb.fm...

  • Page 12: Warning And Informational Labels

    MP15 Safety Information Warning and Informational Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below. Label Meaning WARNING! Always wear hearing and eye protection when operating this machine. Please read the user’s manual carefully before operating the product.
  • Page 13 MP15 Safety Information Label Meaning Clean up in cleansing solvent and dry up once every 50 hours(every 10 hours in unusually dusty circumstances). and then immerse in clean engine oil until saturated, squeeze out excessive oil. Company logo Company label...

  • Page 14: Technical Data

    MP15 Technical Data Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. MP15 0630131 Engine Engine Make Wacker Neuson Engine Model Max. rated power @ rated 3.5 (4.7) @ 3600 rpm...

  • Page 15: Machine Data

    MP15 Technical Data Machine Data MP15 0630131 Plate Weight kg (lbs.) 81 (179) Water Tank Capacity l (qts.) 7.3 (7.7) Exciter Speed 5800 ± 100 Exciter Lubrication 240 (8) ml (oz.) Automatic transmission fluid Dextron III/Mercon or equivalent Dimensions mm (in.)

  • Page 16: Dimensions

    MP15 Technical Data Dimensions mm (in.) wpmgr008609 wpm_td000468gb.fm...

  • Page 17: Operation

    MP15 Operation Operation Recommended Fuel The engine requires regular grade unleaded gasoline. Use only fresh, clean gasoline. Gasoline containing water or dirt will damage fuel system. Consult engine owner’s manual for complete fuel specifications. Application This plate is designed for compacting loose, granular soils, gravel, and paving stones.

  • Page 18: To Start

    MP15 Operation To Start See Graphic: wpm_gr008613 4.4.1 Turn the fuel cock to the “ON” (OPEN) postion (a1). Note: If engine is cold, move choke lever to close position (b1). If engine is hot, set choke to open position (b2).

  • Page 19: Operation

    MP15 Operation Operation Run the engine at full throttle and allow the plate to pull itself along at its normal speed. When operating on an incline it may be necessary to assist the plate by pushing it forward slightly. When operating downhill hold the plate back slightly, if it begins to pick up speed.

  • Page 20: Maintenance

    MP15 Maintenance Maintenance Periodic Maintenance Schedule 5.1.1 Engine Maintenance The chart below lists basic engine maintenance. Refer to the engine manufacturer’s Operation Manual for additional information. Daily After Every Every Every before first 2 weeks month year starting 20 hrs.
  • Page 21 MP15 Maintenance 5.1.2 Machine Maintenance The chart below lists basic machine maintenance. Daily After Every Every Every before first 2 weeks month year starting 20 hrs. 50 hrs. 100 hrs. 300 hrs. Check external hardware. Check and adjust drive belt.

  • Page 22: Spark Plug

    MP15 Maintenance Spark Plug See Graphic: wpm_gr008620 In order to ensure the engine normal running, gap of the spark plug must be correct and no deposit around the spark plug. The muffler becomes very hot during operation and remains hot for a while after stopping the engine.

  • Page 23: Air Cleaner

    MP15 Maintenance Air Cleaner See Graphic: wpmgr008845 A dirty air cleaner can restrict air flowing into the carburetor. To keep the carburetor in good working conditions, please service the air cleaner periodically. If operating the engine in extremely dusty area, the job should be done more often.

  • Page 24: Engine Oil

    MP15 Maintenance Engine Oil See Graphic: wpm_gr008622 Drain the engine oil rapidly and completely out when the engine is hot. 5.4.1 Turn off the oil filler cap and drain plug to drain engine oil thoroughly. reinstall the drain plug and screw in securely.

  • Page 25: Drive Belt

    MP15 Maintenance Drive Belt See Graphic: wpmgr008610 On new machines or after installing a new belt, check the belt tension after first 20 hours of operation. Check and adjust the belt every 50 hours thereafter. To adjust the belt: 5.5.1 Loosen the two screws (a) on the beltguard, then remove the beltguard, keeping the screw assemblies captured on the beltguard.

  • Page 26: Exciter Lubrication

    MP15 Maintenance Exciter Lubrication See Graphic: wpmgr006018 The bearings in the exciter assembly are splash lubricated and rotate at very high speed. It is important to maintain the exciter oil at the correct level and change it regularly. Check oil level in exciter every 50 hours of operation.

  • Page 27: Lifting Machine

    MP15 Maintenance Lifting Machine See Graphic: wpmgr008611 See Technical Data for weight of the machine. To lift machine manually: 5.8.1 Stop the engine. 5.8.2 Obtain help from a partner and plan the lift. To avoid burns or fire hazards, let the engine cool before transporting the machine or storing it indoors.

  • Page 28: Transporting Machine

    MP15 Maintenance Transporting Machine See Graphic: wpmgr008612 To avoid burns or fire hazards, let engine cool before transporting machine or storing indoors. WARNING 5.9.1 Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling.

  • Page 29: 5.11 Troubleshooting

    MP15 Maintenance 5.11 Troubleshooting Problem / Symptom Reason / Remedy Plate does not develop full • Engine throttle control not completely open. speed. Poor compaction. • Throttle control not adjusted correctly. • Ground too wet, plate sticking. Allow soil to dry before compacting.
  • Page 30 Tel. : (262) 255-0500 Fax: (262) 255-0550 Tel.: (800) 770-0957 Wacker Neuson Limited - Room 1701–03 & 1717–20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong. Tel: (852) 3605 5360, Fax: (852) 2758 0032...
