PANEL DESCRIPTION

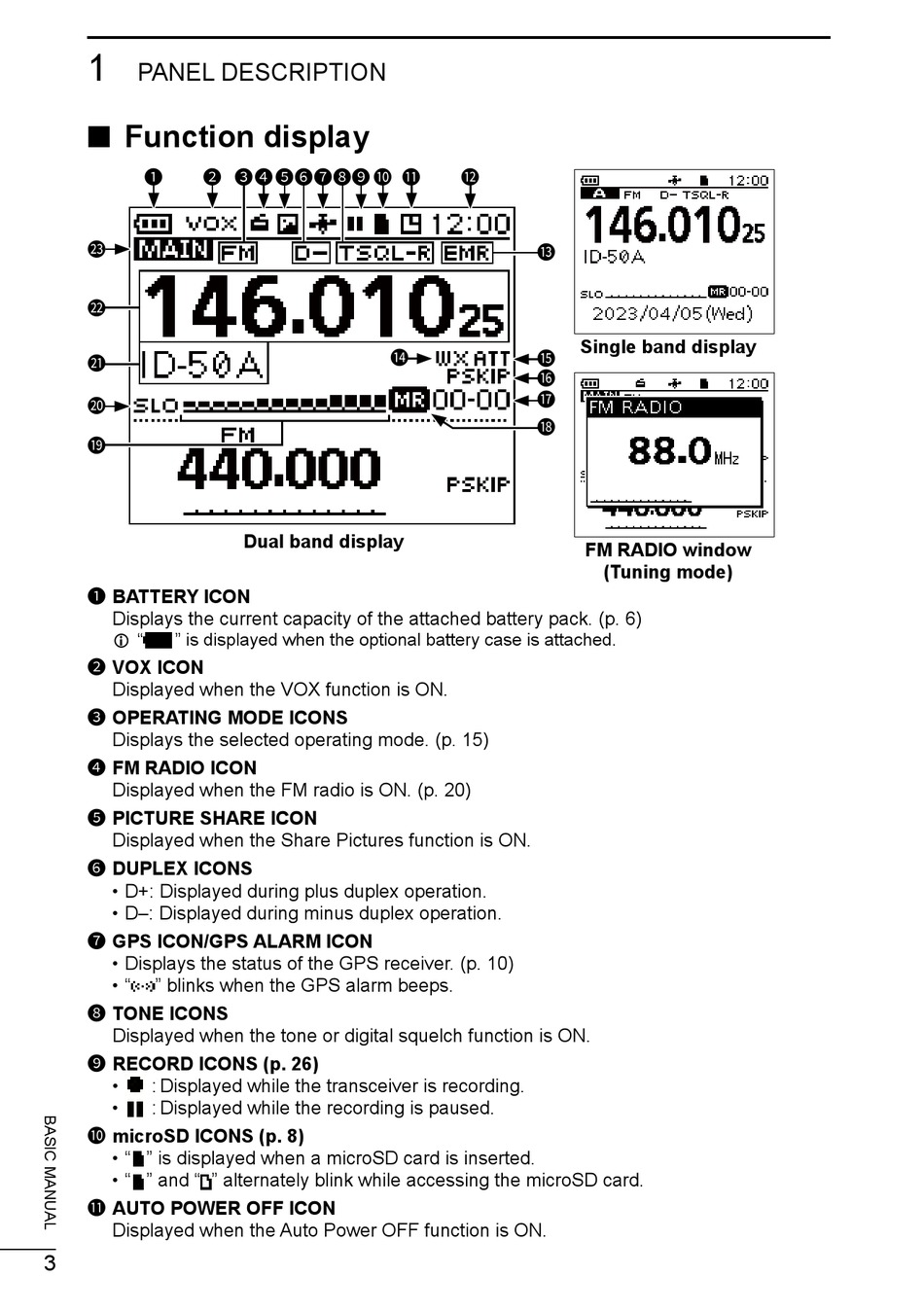

■ Function display

1 2 3 4 5 6 7 8 10 11
23
22
21
20
19
1 BATTERY ICON
Displays the current capacity of the attached battery pack. (p. 6)
L " " is displayed when the optional battery case is attached.
2 VOX ICON
Displayed when the VOX function is ON.
3 OPERATING MODE ICONS
Displays the selected operating mode. (p. 15)
4 FM RADIO ICON
Displayed when the FM radio is ON. (p. 20)
5 PICTURE SHARE ICON
Displayed when the Share Pictures function is ON.
6 DUPLEX ICONS
• D+: Displayed during plus duplex operation.
• D–: Displayed during minus duplex operation.
7 GPS ICON/GPS ALARM ICON
• Displays the status of the GPS receiver. (p. 10)
• " " blinks when the GPS alarm beeps.
8 TONE ICONS
Displayed when the tone or digital squelch function is ON.
9 RECORD ICONS (p. 26)
• : Displayed while the transceiver is recording.
• : Displayed while the recording is paused.
10 microSD ICONS (p. 8)
• " " is displayed when a microSD card is inserted.
• " " and " " alternately blink while accessing the microSD card.
11 AUTO POWER OFF ICON
Displayed when the Auto Power OFF function is ON.
