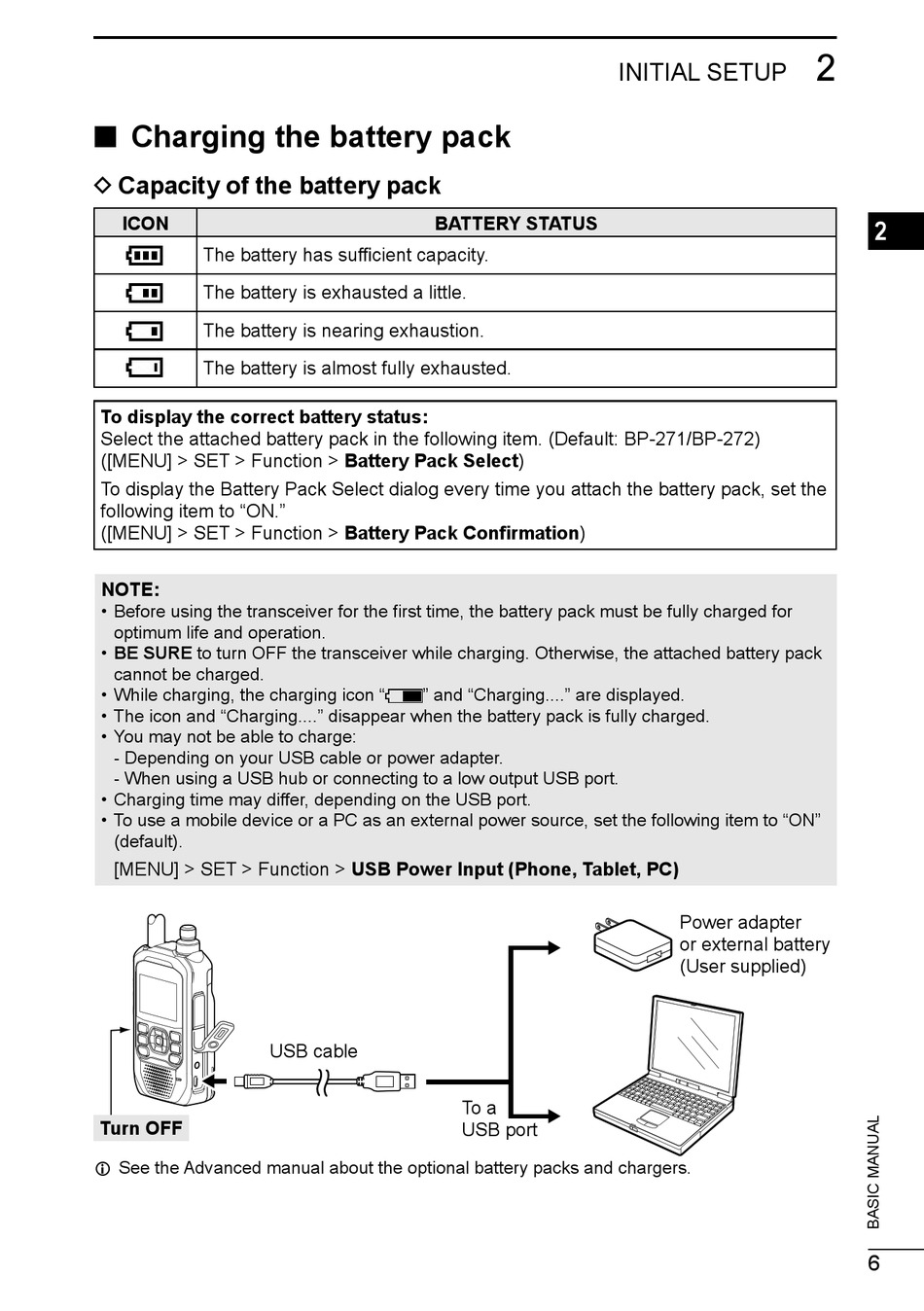

■ Charging the battery pack

D Capacity of the battery pack

ICON
The battery has sufficient capacity.
The battery is exhausted a little.
The battery is nearing exhaustion.
The battery is almost fully exhausted.
To display the correct battery status:
Select the attached battery pack in the following item. (Default: BP-271/BP-272)
([MENU] > SET > Function > Battery Pack Select)
To display the Battery Pack Select dialog every time you attach the battery pack, set the
following item to "ON."
([MENU] > SET > Function > Battery Pack Confirmation)
NOTE:
• Before using the transceiver for the first time, the battery pack must be fully charged for
optimum life and operation.
• BE SURE to turn OFF the transceiver while charging. Otherwise, the attached battery pack
cannot be charged.
• While charging, the charging icon "
• The icon and "Charging...." disappear when the battery pack is fully charged.
• You may not be able to charge:
- Depending on your USB cable or power adapter.
- When using a USB hub or connecting to a low output USB port.
• Charging time may differ, depending on the USB port.
• To use a mobile device or a PC as an external power source, set the following item to "ON"
(default).
[MENU] > SET > Function > USB Power Input (Phone, Tablet, PC)
Turn OFF
L See the Advanced manual about the optional battery packs and chargers.
BATTERY STATUS
" and "Charging...." are displayed.
USB cable
INITIAL SETUP
To a
USB port
2
Power adapter
or external battery
(User supplied)
