Summary of Contents for Pilz PNOZ mmc7p CC
- Page 1 PNOZ mmc7p CC Configurable, safe compact controllers PNOZmulti Mini Operating Manual-1003066-EN-04...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
General wiring guidelines ......................Connecting the supply voltage....................Interface assignment ........................ Download modified project to the PNOZmulti safety system............ Connection example ......................... Operation ..........................Messages ..........................Technical Details ........................Order reference ........................Product ............................. Accessories ..........................Operating Manual PNOZ mmc7p CC 1003066-EN-04... -
Page 4: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mmc7p CC. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mmc7p CC 1003066-EN-04...
-
Page 6: Overview
24 - 127 are used they have different properties (see document entitled "Commu- nication Interfaces"). Max. 1 PNOZ mmc7p CC can be connected to the base unit Plug-in connection terminals: Either spring-loaded terminal or screw terminal available as an accessory (see Order ref- erences for accessories). -
Page 7: Front View

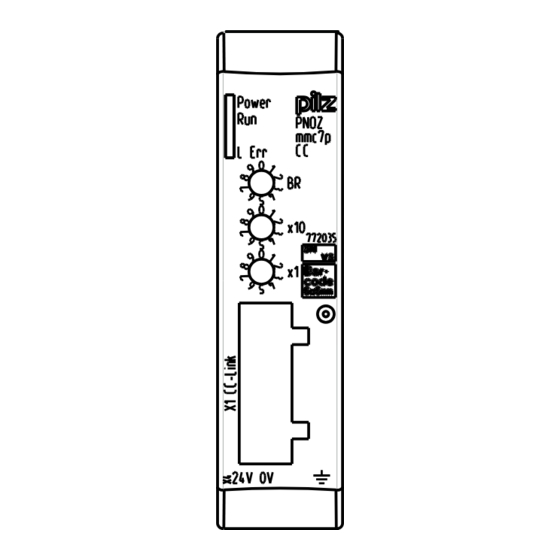

Overview Front view Legend: X1: CC-Link interface 0 V, 24 V: Supply connections LEDs: – Power – Run – L Err Operating Manual PNOZ mmc7p CC 1003066-EN-04... -
Page 8: Safety
Safety Safety Intended use The fieldbus module PNOZ mmc7p CC is an expansion module of the configurable control system PNOZmulti. It is used for communication between the configurable control system PNOZmulti and the CC-Link . CC-Link is designed for fast data exchange at field level. The expansion module CC-Link is a passive subscriber (Slave) in CC-Link. -
Page 9: Safety Regulations
Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mmc7p CC 1003066-EN-04... -
Page 10: Function Description
PNOZmulti Configurator. The base unit and the fieldbus module PNOZ mmc7p CC are connected via a jumper. After the supply voltage is switched on or the PNOZmulti control system is reset, the fieldbus module PNOZ mmc7p CC is configured and started automatically. -
Page 11: Block Diagram
Function description Block diagram 24V 0V FE 24V 0V Operating Manual PNOZ mmc7p CC | 11 1003066-EN-04... -
Page 12: Installation
Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm Operating Manual PNOZ mmc7p CC | 12 1003066-EN-04... -
Page 13: Connect The Base Unit And Expansion Modules
Please refer to the document "PNOZmulti System Expansion" for details of the number of modules that can be connected to the base unit and the module types. Operating Manual PNOZ mmc7p CC | 13 1003066-EN-04... -
Page 14: Commissioning
Connect the supply voltage to the fieldbus module: 24 V terminal: + 24 VDC 0 V terminal: 0 V Protect the supply voltage as follows: – Circuit breaker, characteristic C - 6 A – Blow-out fuse, slow, 6A Operating Manual PNOZ mmc7p CC | 14 1003066-EN-04... -
Page 15: Interface Assignment
PNOZmulti Configurator and downloaded back into the base unit. Proceed as described in the operating manual for the base unit. NOTICE For the commissioning and after every user program change, you must check whether the safety devices are functioning correctly. Operating Manual PNOZ mmc7p CC | 15 1003066-EN-04... -
Page 16: Connection Example
Commissioning Connection example PNOZ mmc7p CC Operating Manual PNOZ mmc7p CC | 16 1003066-EN-04... -
Page 17: Operation
Operation Operation When the supply voltage is switched on, the PNOZmulti copies the configuration from the chip card. The expansion module PNOZ mmc7p CC is configured and started automatically. Messages Legend LED on LED flashes LED off Meaning Power green... -
Page 18: Technical Details
93 % r. h. at 40 °C Condensation during operation Not permitted Max. operating height above sea level 2000 m EN 61131-2 Vibration In accordance with the standard EN 60068-2-6 Frequency 10 - 150 Hz Acceleration Operating Manual PNOZ mmc7p CC | 18 1003066-EN-04... - Page 19 Spring-loaded terminals: Terminal points per connec- tion Stripping length with spring-loaded terminals 9 mm Dimensions Height 100 mm Width 22,5 mm Depth 110 mm Weight 90 g Where standards are undated, the 2011-09 latest editions shall apply. Operating Manual PNOZ mmc7p CC | 19 1003066-EN-04...
-
Page 20: Order Reference
Screw terminals, 10 pieces 793543 PNOZ mmcxp 10 pcs. Terminator, jumper Product type Features Order No. PNOZ s terminator plug Terminator, yellow, 10 pieces 750 010 PNOZ s connector Jumper, 10 pieces 750 020 Operating Manual PNOZ mmc7p CC | 20 1003066-EN-04... - Page 21 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
