I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l
Electric Cooktop
Series
RN8200E
RN8400E
RN8600E
Date Purchased
Serial Number
Dealer
Service Provider
R N L 8 2 0 0 E
R N L 8 4 0 0 E
R N L 8 6 0 0 E
1
For use in GB & IE
230558-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RN8400E Series RN8600E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Waldorf RN8400E Series RN8600E Series

  • Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Electric Cooktop Series RN8200E R N L 8 2 0 0 E RN8400E R N L 8 4 0 0 E RN8600E...
  • Page 2 MANUFACTURED BY Moffat Limited PO Box 10001 Christchurch New Zealand (03) 389 1007 Fax: (03) 389 1276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal 67 Gravelly Business Park Gravelly Park Birmingham West Midlands B24 8TQ (121) 327 5575 Fax: (121) 327 9711 UNITED STATES Moffat Inc 3765 Champion Blvd...
  • Page 3: Table Of Contents

    Contents Waldorf Electric Cooktops RN(L)8200E Electric Cooktop - 300 mm. RN(L)8400E Electric Cooktop - 600 mm. RN(L)8600E Electric Cooktop - 900 mm. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Electrical Supply Requirements Electrical Connection Dimensions ....................
  • Page 4: Introduction

    Introduction We are confident that you will be delighted with your WALDORF ELECTRIC COOKTOP, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new WALDORF Appliance, there are two important things you can do.
  • Page 5: Specification

    Specifications Model Numbers Covered in this Specification RN[1]8200E-[2] 2 Open Radiant Elements. RN[1]8203E-[2] 300 mm Griddle. RN[1]8400E-[2] 4 Open Radiant Elements. RN[1]8403E-[2] 2 Open Radiant Elements / 300 mm Griddle. RN[1]8406E-[2] 600 mm Griddle. RN[1]8600E-[2] 6 Open Radiant Elements. RN[1]8603E-[2] 4 Open Radiant Elements / 300 mm Griddle.
  • Page 6: Electrical Supply Requirements

    Specifications Electrical Supply Requirements Power Supply Amps Total Power Model Input Voltage Type Frequency RN8200E 230-240 Vac 1 P+N+E 50 / 60 Hz 4.8 kW 20.0 RN8203E 230-240 Vac 1 P+N+E 50 / 60 Hz 3.4 kW 14.2 RN8400E 400-415 Vac 2 P+N+E 50 / 60 Hz 9.6 kW...
  • Page 7: Dimensions

    Dimensions Dimensions for Bench Models = Rating Plate Location for this option. RN(L)8200E-B RN(L)8400E-B RN(L)8600E-B...
  • Page 8 Dimensions Dimensions for Cabinet Base Models = Rating Plate Location for this option. RN(L)8400E-CB RN(L)8600E-CB...
  • Page 9 Dimensions Dimensions for Leg Stand Models = Rating Plate Location for this option. RN(L)8400E-LS RN(L)8400E-LS...
  • Page 10 Dimensions Dimensions for Refrigerated Base Models RN(L)8600E-RB = Rating Plate Location for this option. Cooktop Options RN(L)8200E RN(L)8203E For the Refrigeration Cabinet Operation refer to the Refrigeration Cabinet Installation and Operation Manual supplied with the appliance.
  • Page 11 Dimensions RN(L)8403E RN(L)8406E RN(L)8400E RN(L)8600E RN(L)8603E RN(L)8606E RN(L)8609E NOTE: • RN8200E is only available as Bench Mount (B) Model. • RN8400E is available as Bench Mount (B), Cabinet Base (CB) or Leg Stand (LS) model options. • RN8600E is available as Bench Mount (B), Cabinet Base (CB), Leg Stand (LS), or Refrigerated Base (RB) model options.
  • Page 12: Installation

    Waldorf Cooktops are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety.
  • Page 13: Assembly

    Installation Assembly AUTIO N • This appliance is for professional use and is only to be used by qualified persons. • Only qualified service persons are to carry out installation and servicing of this appliance. Bench Mount (B) Models Check that all the feet are fitted. Adjust the four feet to make the hob steady and level.
  • Page 14 Installation Rear Adjustable Feet, fitting:- Secure the rear of the base tray to the rear cooktop legs by screwing the two adjustable feet supplied, into the base of the rear cooktop legs. Secure each adjustable foot, hand tight. Cooktop Rear Rollers, fitting:- Fit the rear leg securing bolts up Leg Mount through the centre of the rear leg...
  • Page 15: Electrical Connection

    Installation Electrical Connection WARNING: HIS APPLIANCE MUST BE EARTHED F THE SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON.
  • Page 16: Operation

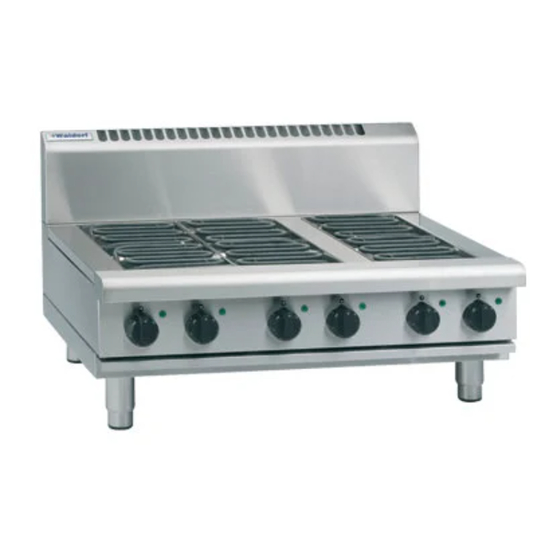

    Only authorised service persons should be used to carry out installation or servicing operations. Waldorf appliances have been designed to provide simplicity of operation. A commercial heavy duty, electric Cooktop is available in 3 different sizes, 300mm, 600mm and 900mm wide and in 4 model types:- Bench Model.
  • Page 17: Radiant Hotplates

    Operation Radiant Hotplates The controls for the radiant hotplates may be set at any position between high and low to provide the desire level of heating. An individual amber neon for each element, will glow when the element cycles on and extinguish when the element cycles off. Start cooking at the highest setting, and change to a lower setting when the desired temperature is reached.
  • Page 18: Cleaning And Maintenance

    Cleaning and Maintenance AUTIO N Always turn off the electrical power supply at the mains supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the Cooktop regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on the surface or on the griddle plate (If fitted) will hinder the transfer of heat from the cooking surface to the food.
  • Page 19 Cleaning and Maintenance Brush the elements with a soft bristled brush. Any carbon deposits should be removed using a scraper Lift up Front of tool followed by wiping with a cloth moistened in a Element Module solution of hot water and detergent to prevent accumulation of food deposits.
  • Page 20: Weekly Cleaning

    Cleaning and Maintenance Weekly Cleaning NOTE: • If the Cooktop usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. •...
  • Page 21: Fault Finding

    Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
  • Page 22: Circuit Schematics

    Circuit Schematics RN8200E RN8203E...
  • Page 23 Circuit Schematics RN8400E RN8403E RN8406E...
  • Page 24 Circuit Schematics RN8600E RN8603E...
  • Page 25 Circuit Schematics RN8606E RN8609E...
  • Page 26: Replacement Parts List

    Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
