SRAM SIDLUXE ISOSTRUT 2024+ Service Manual page 70

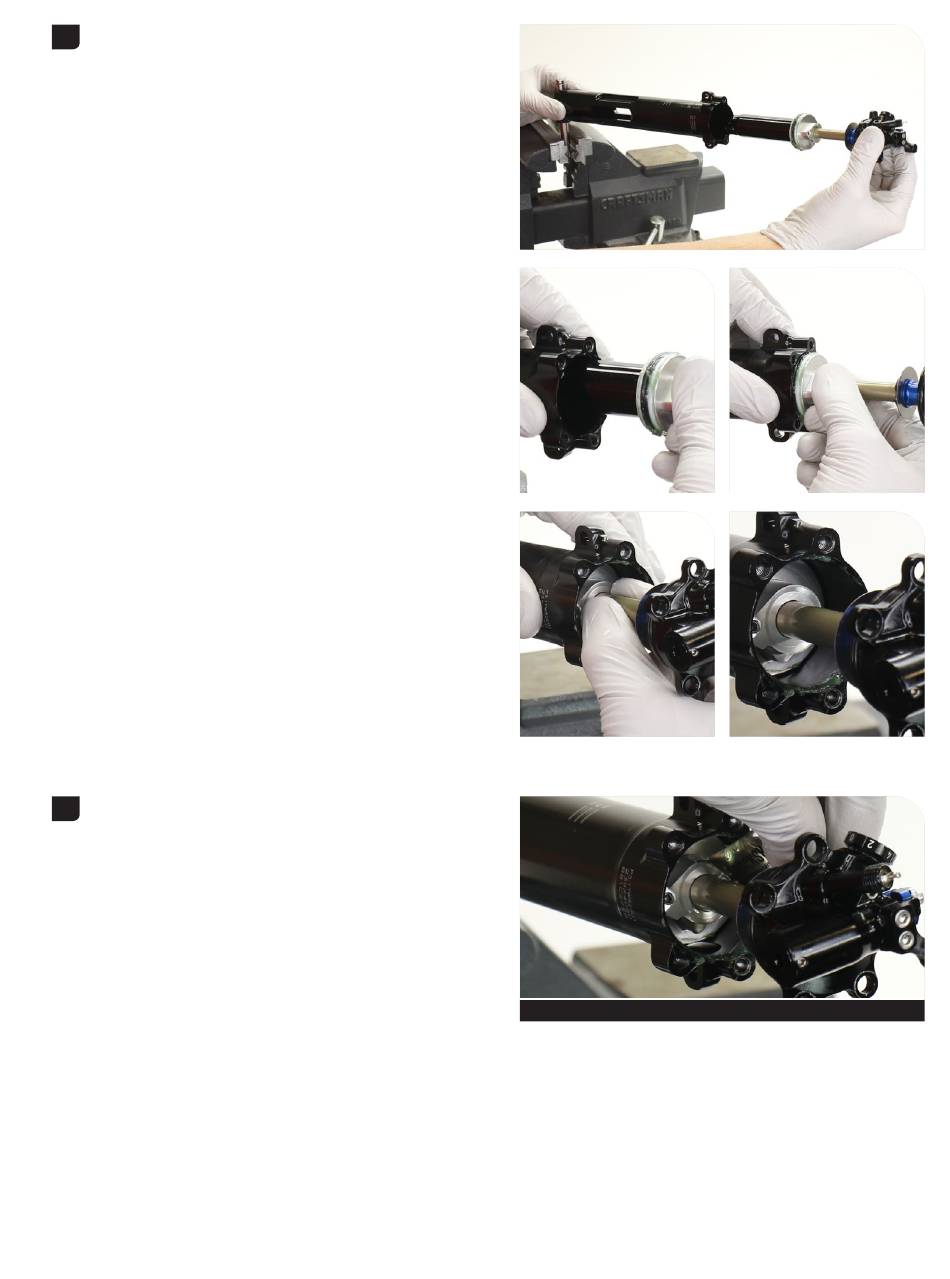

4 Hold the IsoStrut air can steady and insert the damper body into the Hold the IsoStrut air can steady and insert the damper body into the
IsoStrut air can. IsoStrut air can.
When the quad ring seal engages the inner surface of the IsoStrut air When the quad ring seal engages the inner surface of the IsoStrut air
can, push the sealhead / air piston into the IsoStrut air can until the can, push the sealhead / air piston into the IsoStrut air can until the
quad ring seal clears the end of the IsoStrut air can and is fully seated quad ring seal clears the end of the IsoStrut air can and is fully seated
inside the tube. Stop when the sealhead / air piston is 15 - 20 mm inside the tube. Stop when the sealhead / air piston is 15 - 20 mm
inside the IsoStrut air can. inside the IsoStrut air can.
5 Inject 0.5 mL (five small drops) of Maxima PLUSH Dynamic Suspension Inject 0.5 mL (five small drops) of Maxima PLUSH Dynamic Suspension
Lube Light into the IsoStrut air can (positive air spring chamber). Lube Light into the IsoStrut air can (positive air spring chamber).
Maxima PLUSH Dynamic Suspension Lube Light 0.5 mL
70
IsoStrut Air Can Installation
