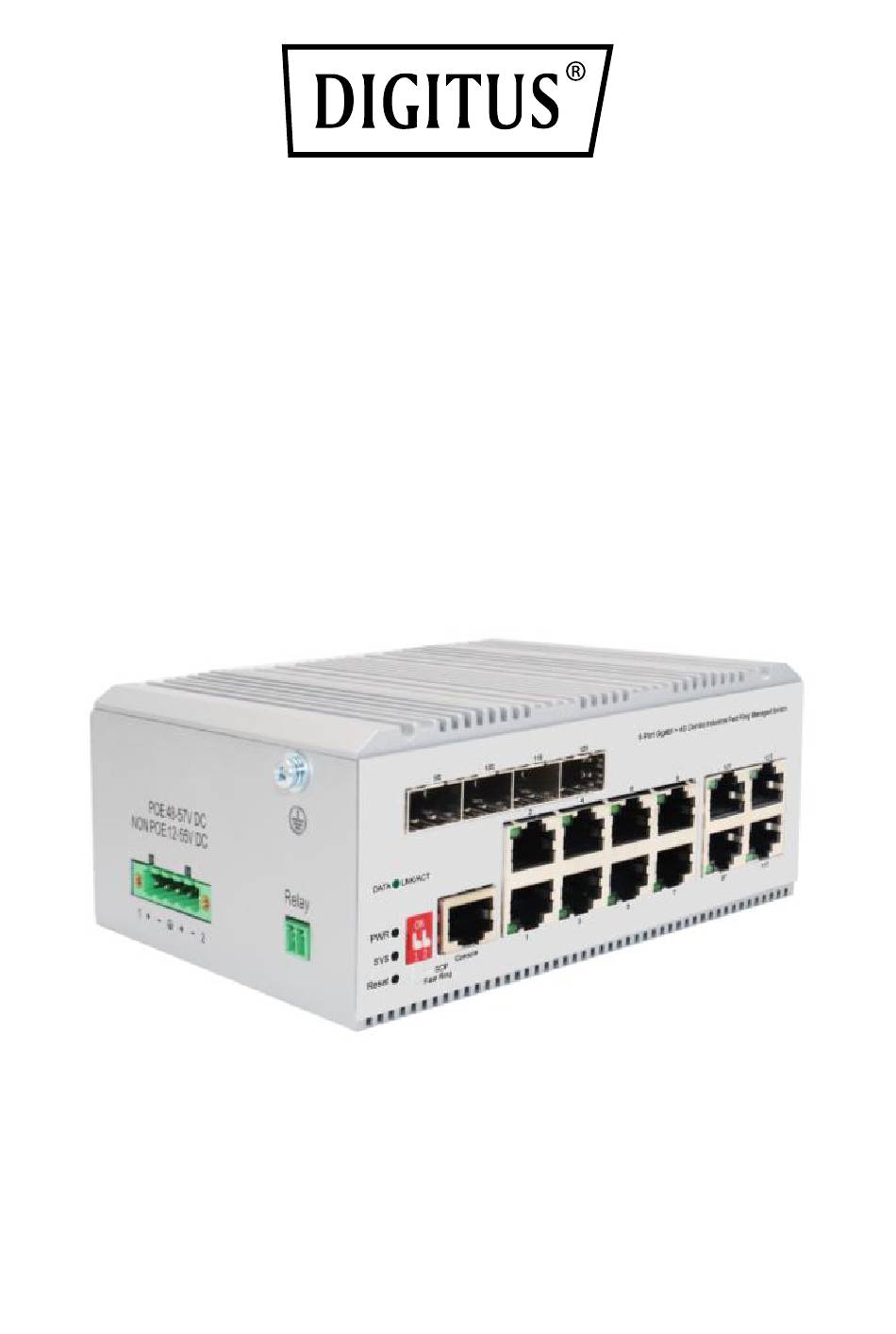

- Page 1 8-Port Gigabit + 4G Combo Industrial Fast Ring Managed Switch Quick Installation Guide DN-651139 & DN-651145...
-
Page 2: Table Of Contents
Table of Contents Introduction ................3 Features ..................3 Product Overview ............3 Product Features ............4 Product Advantage ............4 Package Contents ................ 6 Specifications ................6 Technical Specifications ..........6 Software Specification ............ 8 Product Appearance Description..........11 Front Panel .............. -
Page 3: Introduction
1 Introduction The DN-651139, DN-651145 Industrial network switch provide 8 x 10/ 100/ 1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651139, DN-651145 offers excellent security policy, QoS policy, and rich VLAN function. -
Page 4: Product Features
Industrial grade components Support IEEE 802.3af/at standards (DN-651139 only) Single port output power up to 30W (DN-651139 only) IEEE 802.3x full-duplex flow control and Backpressure half- duplex flow control Support one-key ring network, one-key storm suppression function, with redundancy design, high reliability ... - Page 5 2. High energy aluminum alloy roof heat conduction groove shell design Housing size 145*109*62mm, compact and lightweight, full aluminium alloy high energy roof heat conduction groove shell design, better effect of heat dissipation. 3. DIN-Rail installation, simple and flexible DIN rail installation design, easy and quick installation, allowing users to reduce unnecessary installation time to save time.
-
Page 6: Package Contents
Switch. Read this manual carefully before operating the Switch. 4 Specifications 4.1 Technical Specifications DN-651139 PoE Switch Model DN-651145 non-PoE Switch IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z, IEEE 802.3x,IEEE 802.1X, Standard IEEE 802.1q,IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad, (DN-651139 support IEEE802.3af,IEEE802.3at) - Page 7 8K, Auto-learning, Auto-update Table Transfer Mode Store-and-Forward Jumbo Frame 9216Byte Packet Buffer 4.1M bit Packet Forward 17.86Mpps Speed Input Power DC:48-57V DN-651139 (PoE version) Supply DC:12-55V DN-651145 Switching 24Gbps Capacity Dimensions 145*109*62mm (L*W*H) Fanless PoE Power 185W (DN-651139 only) Budget...
-
Page 8: Software Specification
Storage Humidity: 0% ~ 95% non-condensing Surge Differential mode ±2KV, Protection Common mode ±6KV MTBE >100000hours 4.2 Software Specification IEEE 802.1D -Spanning Tree IEEE 802.1w -Rapid Spanning Tree IEEE 802.1s -Multiple Spanning Tree spanning Tree BPDU Guard STP Root Guard Loop Detection Management VLAN Private VLAN... - Page 9 Port Based 802.1p Class Of Service DSCP IP Precedence TCP/UDP (IPv4/IPv6) Ingress Rate Limiting Egress Priority Queue Strict Priority Scheduling DSCP & CS IPv4 QoS (QCEs) IPv6 QoS (QCEs) Port Security Port Isolation IEEE802.1x AAA L2+/L3/L4 ACLs IPv6 Support Management Access List Management ACL/Management ACE IP Source Guard Security...
- Page 10 SSH v1.5/v2.0 (Secured Telnet Session) DHCP Snooping DHCP Relay SNMP (v1, v2c, v3) RMON ( 1,2,3 & 9 groups) Software Upgrade Configuration Export/Import Client Option 82 DHCP Option 66 Option 67 Event/Error Log Syslog Console SNMP Management Access Filtering Management HTTP/HTTPS Telnet Port Mirroring...
-
Page 11: Product Appearance Description
(Simple Network Time Protocol) IPv6 Telnet / SSH IPv6 Ping/Trace route IPv6 TFTP IPv6 RADIUS/TACACS+ IPv6 SNMP Port Config Alive Checking for PD PoE Management PoE Delay PoE Schedule ONVIF Detection ONVIF ONVIF Server(NLM) 5 Product Appearance Description 5.1 Front Panel The front panel consists of 8*10/100/1000Mbps adaptive RJ45 ports, 4*1000Mbps Combo ports and related indicators, as shown below: Front panel of the 8-Port Gigabit + 4G Combo Switch... - Page 12 8-Port Gigabit + 4G Combo Port description: 10/100/1000Mbps RJ45 Ports Supports 10Mbps, 100Mbps, or 1000Mbps rate adaptation, auto-MDI /MDIX, and each port has a corresponding indicator, that is, port indicators 1-8 as shown on the panel in the figure above. ...
-
Page 13: Led Indicator
Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. **DN-651139 only** Off: No PoE powered device (PD) connected. Light: There is a PoE PD Orange connected to be port, which supply power successfully. -
Page 14: Side Plate
5.3 Side Plate Side panel of 8-Port Gigabit + 4G Combo Switch The side panel of the Switch provides 5-position industrial wiring terminals and power input DC: The DC power input of the Switch is redundant. The PWR1 and PWR2 power supplies can be used individually or connected to 2 independent DC power supply systems. -
Page 15: Installation Guide
6 Installation Guide This chapter helps users correctly install and safely use Switches. 6.1 Installation Precautions Precautions: To avoid equipment damage and personal injury, observe the following precautions: The Switch room should be dry and ventilated, free from corrosive gases and strong electromagnetic interference. -
Page 16: Installation Environment
The product does not provide installation components. Prepare components of the selected installation type, such as screws, nuts, and tools, to ensure reliable installation Power supply: 48V to 57V DC (DN-651139) 12V to 55V DC (DN-651145) Environment: operating temperature: -40°C to 75 °C relative humidity: 5% to 95%. - Page 17 DIN-Rail Figure 4-1 Schematic diagram of industrial machine guide rail installation Note: Aluminum alloy DIN-Rail hooks have been fixed to the rear panel of the Switch. Figure 4-2 Schematic diagram of industrial machine guide rail disassembly...
- Page 18 Power on Power on: First insert the power terminal of the power cable into the power port of the device, then plug in the power plug and power on. After the Switch is started, the Switch automatically initializes. If all port indicators are on and then off, the system is successfully reset, and the power LED indicator is always on.
- Page 19 Schematic diagram of wall mounted installation of industrial machine Remove the DIN-Rail mounting plate on the rear board of the Switch; Install the wall mounting board on the Switch as shown below. Four wall screws are required to mount the Switch on the wall, as shown in the figure above.
- Page 20 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
