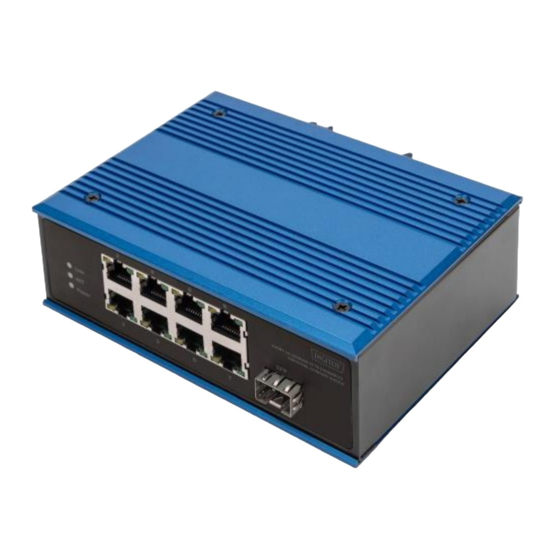

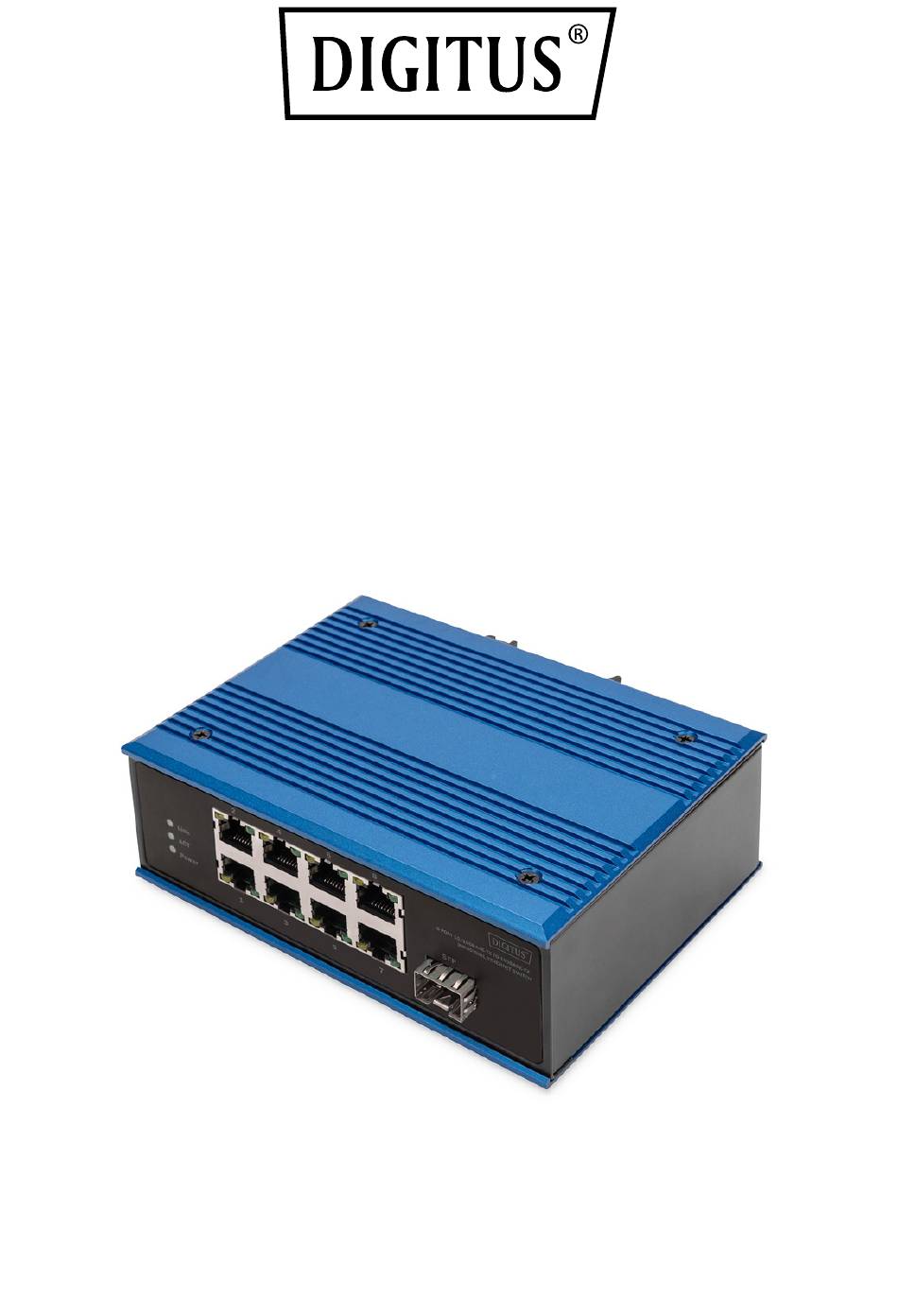

- Page 1 8-Port 10/100Base-TX to 100Base-FX Industrial Ethernet (PoE) Switch Quick Installation Guide DN-651132 & DN-651133...
-
Page 2: Switch Panel
1. Overview Industrial Ethernet switch with 8-Port 10/100Mbps RJ45 +1 Port 100Mbps base-FX, the Product meet CE, RoHS standards. Switch has the operating temperature of -40°C ~ 80°C, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. - Page 3 support a variety of protocols In line with industrial operating standards, the average trouble-free work in more than 300,000 hours Working power supply: DN-651132: DC 12-52V DN-651133 (PoE): DC 48-57V Lightning Surge Protection (Power): 5000A (8/20μs) ...
-
Page 4: Specification
4. Specification 4.1 Standard: IEEE802.3 10Base-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX 4.2 Interface: 8-Port 10/100Mbps RJ45+1 Port 100Mbps Base-FX Industrial Switch 4.3 Work environment: Working: -40 ~ 80 °C, Storage: -40 ~ 80 °C 4. 4 Switch: Bandwidth: 1.8Gbps Packet Buffer Memory: 1.25Mbit Packet Forwarding Rate: 1.4Mpps MAC Address Table: 4K 4.4 Power supply:... -
Page 5: Interface Definition
4.7 Industrial standard: FCC Part 15 Subpart B, EN55032, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10 kHz-150 kHz); 10V (150 kHz-80 MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Frequency range: 150kHz-80MHz Impact: IEC60068-2-27... - Page 6 For the MDI-X port of a switch or hub, cross lines are used: 1-3, 2-6, 3-1, 6-2, 4-7, 5-8, 7-4, 8-5.10Base-T/100Base-T (X) pins are defined as follows: Pin No. MDI signal MDI-X signal 4,5,7,8 Note: "Tx ±" refers to send data ±, "Rx ±" refers to received data ±, and "-"...
-
Page 7: Led Indicator
Green flashing Optical work in normal Green flashing Switch work in normal Note: DN-651132 does not support PoE; User can choose DN-651133, if PoE needed. 7. Installation caution 7.1 Installation precautions In order to avoid damage to equipment and personal injury caused... - Page 8 7.2 Din rail installation: The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail; The second step: from the center to both sides of the guide rail positioning screws in order.
- Page 9 8. Packages Content Industrial switch 1 PCS User manual 1 PCS This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
