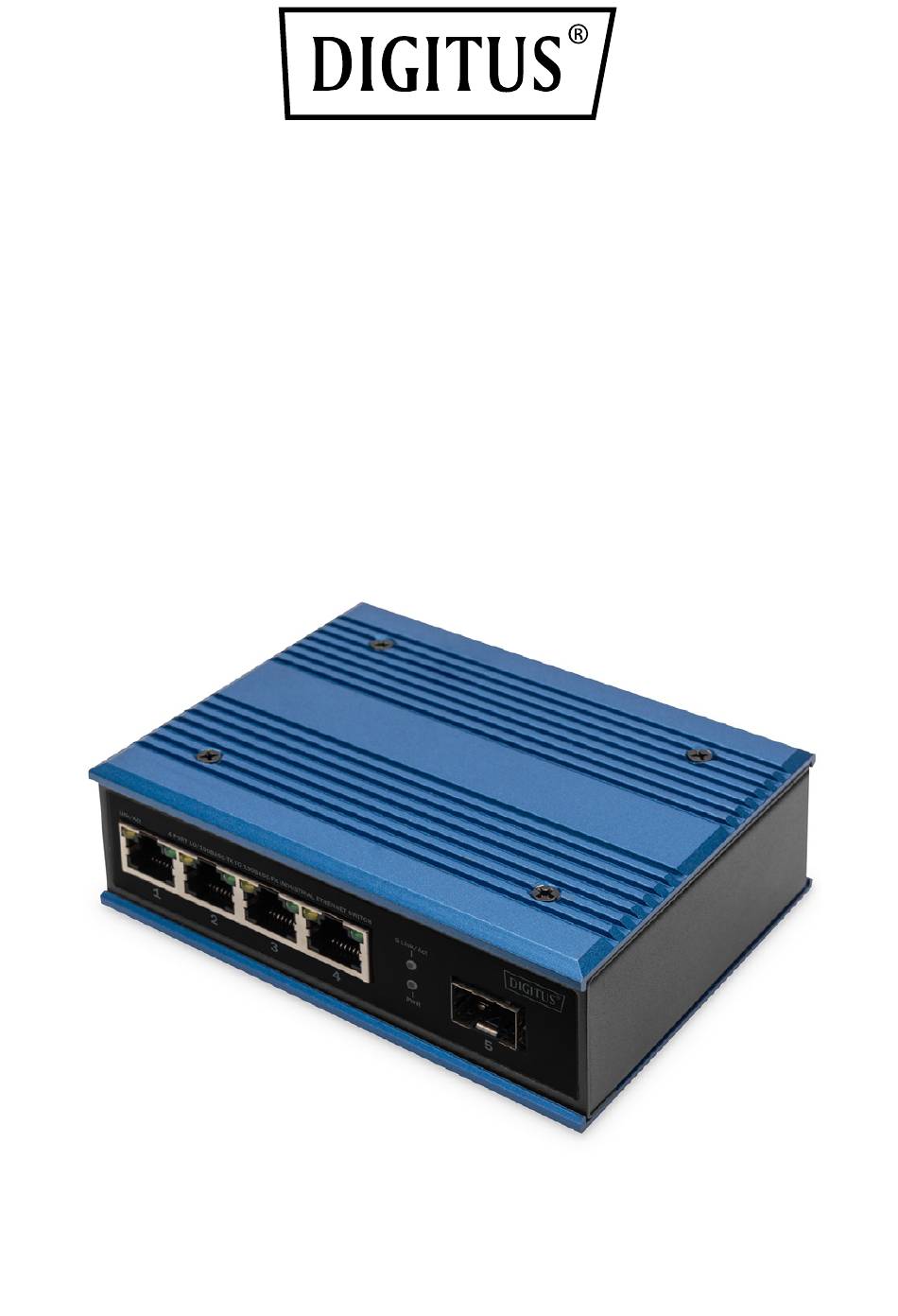

- Page 1 4-Port 10/100Base-TX to 100Base-FX Industrial Ethernet (PoE) Switch Quick Installation Guide DN-651130 & DN-651131...
-
Page 2: Switch Panel

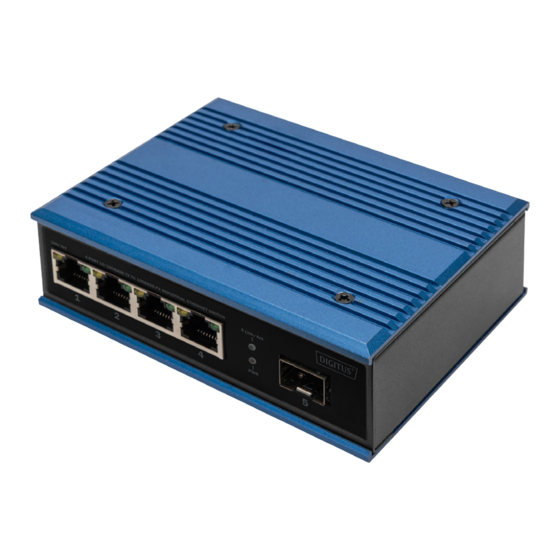

1. Overview Industrial Ethernet switch with 4-Port 10/100Mbps RJ45 +1 Port 100Mbps base-FX, the Product meet CE, RoHS standards. Switch has the operating temperature of -40°C ~ 80°C, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. - Page 3 Internal storage and forwarding mechanism, support a variety of protocols In line with industrial operating standards, the average trouble- free work in more than 300,000 hours Working power supply: DN-651130: DC 12-52V DN-651131 (PoE): DC 48-57V Lightning Surge Protection (Power): 5000A (8/20μs) ...
-
Page 4: Specification
4. Specification 4.1 Standard: IEEE802.3 10Base-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX 4.2 Interface: 4-Port 10/100Mbps RJ45+1 Port 100Mbps base-FX Industrial Switch 4.3 Work environment: Working: -40 ~ 80 °C; Storage: -40 ~ 80 °C 4. 4 Switch: Bandwidth: 1.6Gbps Packet Buffer Memory: 1Mbit Packet Forwarding Rate: 1.2Mpps MAC Address Table: 2K 4.5 Power supply:... -
Page 5: Interface Definition
4.7 Industrial standard: FCC Part 15 Subpart B, EN55032, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10 kHz-150 kHz); 10V (150 kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Frequency range: 150kHz-80MHz Impact: IEC60068-2-27... - Page 6 For the MDI-X port of a switch or hub, cross lines are used: 1-3, 2-6, 3-1, 6-2, 4-7, 5-8, 7-4, 8-5.10Base-T/100Base-T (X) pins are defined as follows: Pin NO. MDI signal MDI-X signal 4,5,7,8 Note: "Tx ±" refers to send data, "Rx ±" refers to received data, and "-"...
-
Page 7: Led Indicator
Link communication in flashing normal RJ45 indicator Green LED on PoE feeding in normal Yellow/Green No connection at port LED off LINK Green flashing Optical work in normal Note: DN-651130 does not support PoE, User can choose DN-651131 if PoE needed. -
Page 8: Installation Caution
7. Installation caution 7.1 Installation precautions In order to avoid damage to equipment and personal injury caused by improper use, please follow the following precautions: In order to avoid damage caused by falling of the equipment, please put the equipment in a stable environment. When supplying power to the equipment, pay attention to confirm ... - Page 9 7.3 grounding Fix the grounding wire to the grounding screw above the switch, and ensure good reliable connection of the grounding system. 7.4 Power Connection Insert the power cord into the specified position of the 6-core terminal, and insert the terminal into the standard power supply inlet (P+1 and P-1 input corresponding to the first power supply P1, and P+2 and P-2 input corresponding to the second power supply P2).
- Page 10 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
