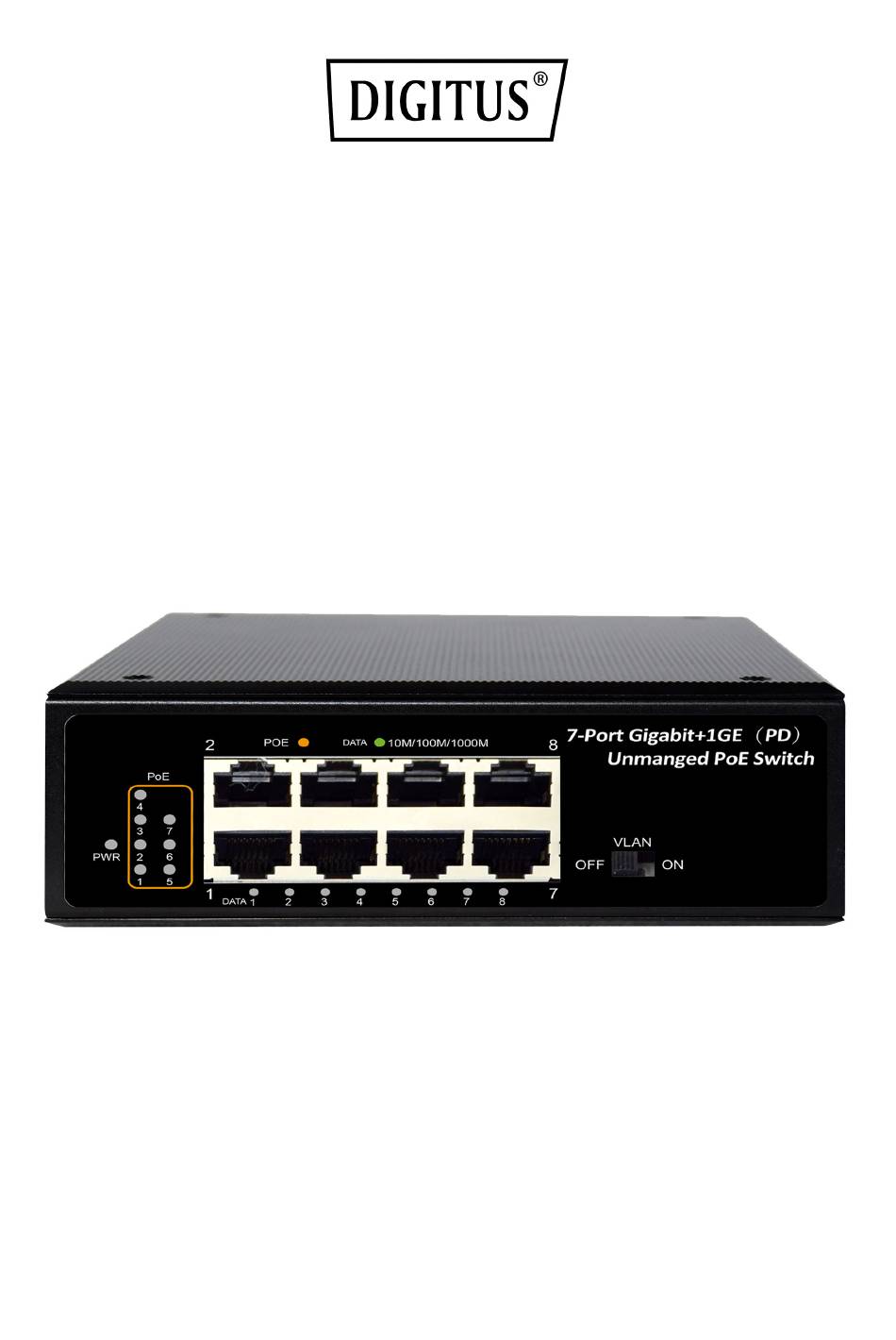

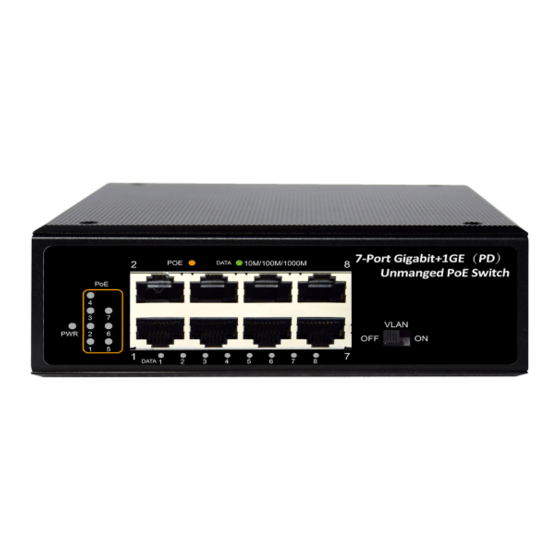

- Page 1 Industrial 7‐port Gigabit PoE+ Switch with 1 x PD‐port User Manual DN‐651113 ...
-
Page 2: Hardware Description
User Guide x1 Accessories If any part is lost and damaged, please contact your local agent immediately. Introduction The DIGITUS® Industrial Gigiabit PoE Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of ‐40°C to 75°C, the Industrial Gigabit PoE Switch can be used under the most adverse conditions. The PoE ports with IEEE802.3af/at support can supply PoE capable devices with up to 30 W per port. Via the PD (Power Delivery) port the switch can be powered by PoE. This eliminates the need to connect a ... -
Page 3: Led Indicator
DIP Switch The DIP switch located on the panel. VLAN OFF: the factory default mode, normal communication between port 1~8. VLAN ON: port 1‐7 are isolated to stop broadcast Storm and increase forwarding rate of frame, but can communicate via uplink port 8. LED indicator LED Color Function Off: No Power supply PWR Green Light: Indicates the switch has power Off: No device is connected to the corresponding port Light: Indicates the link through that port is successfully LNK/ACT Green established at 10/100/1000Mbps Blink: Indicates that the Switch is actively sending or Receiving data over that port Off: ... -
Page 4: Power Input
Power input The unit provides a 5‐pin terminal block. It can be operated using 48‐57 V DC power source. Always make sure your input voltage is within this supported voltage range. To connect power: This unit supports two power inputs. Follow the printed polarity for +V1‐, +V2‐ and ground. Connect positive wires to V+, connect negative wires to V‐, and connect a neutral wire to the ground mark. +V1‐ is for power input one connection (PWR1). +V2‐ is for power input two connection (PWR2). Figure: Besides the terminal block, the switch can be powered via PoE by using port 8 as power input. Use a PoE injector or switch with IEEE802.3bt standard to power the switch via PoE. ... -
Page 5: Installation Of The Switch
WARNING: Always SHUT OFF power source to connect power wire. WARNING: Any exceeded input voltage will not make this unit function and may damage this unit. Grounding column The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) with Ground Cable. Installation of the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions to avoid incorrect installation causing device damage and security threat. Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid Do not place the switch near water or any damp area. Prevent water or moisture from entering the switch chassis Do not place the switch on an unstable case or desk. The switch might be damaged severely in case of a fall Ensure proper ventilation of the equipment room and keep the ventilation vents of the switch free of obstruction Make sure that the operating voltage is the same one labeled on the switch Do not open the chassis while the switch is operating or when electrical hazards are present to avoid electrical shocks ... -
Page 6: Din-Rail Mounting
DIN‐Rail Mounting The DIN‐Rail is already screwed on the Industrial Equipment. Please refer to following figures and know how to hang the Industrial Equipment: Step 1: Lightly press the button of DIN‐Rail into the track. Install Industrial Equipment in DIN‐Rail mount. Step 2: Check the DIN‐Rail is tightly on the track. ... - Page 7 Remove DIN‐Rail Mounting Step 1: Please refer to following procedures to remove the Industrial Equipment from the track. Remove Industrial Equipment in DIN‐Rail mount. Step 2: Lightly press the button of DIN‐Rail for remove it from the track. ...
-
Page 8: Specifications
Specifications Industrial 7‐port Gigabit PoE+ Switch with 1 x Modell PD‐port IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, Standard IEEE802.3af, IEEE802.3at, IEEE802.3bt, IEEE 802.3ab, IEEE 802.3z 10BASE‐T: UTP category 3,4,5 cable (≤100m) Network 100BASE‐TX: UTP category 5 cable (≤100m) Media(Cable) 1000BASE‐T: UTP category 5e, 5 cable (≤100m) MAC Address Table 4K, Auto‐learning, Auto‐aging Transfer mode Store‐and‐Forward Switching Capacity 16Gbps Input power supply DC:48‐57V / PoE IEEE802.3bt Dimensions (L*W*H) 138*108*50mm Fan Fanless PoE Port Port1~7 PoE Power on RJ45 Mode A 1/2(+),3/6(‐) or Mode B 4/5(+),7/8(‐) PoE Output 30W(Max) PD Port Port 8, IEEE802.3bt PoE Power budget 120W PD Port input ... - Page 9 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany ...
