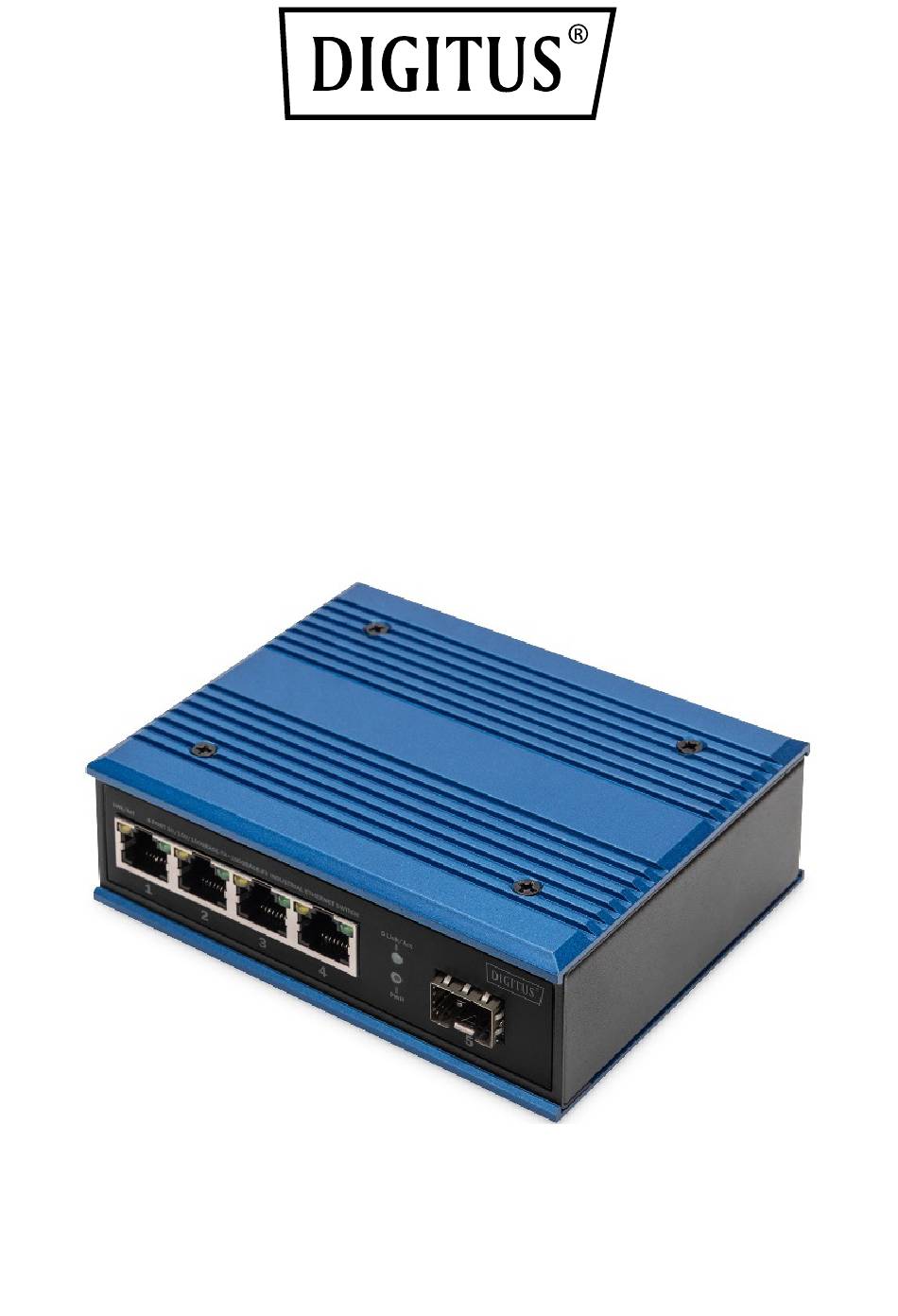

- Page 1 4-port 10/100/1000Base-TX +1000Base-FX Industrial Ethernet (PoE) Switch Quick Installation Guide DN-651134 & DN-651135...
- Page 2 1. Overview Industrial Ethernet switch with 4-Port 10/100/1000Mbps RJ45 +1 Port 1000Mbps SFP (DN-651135 support POE), the Product meet CE, FCC, RoHS standards. Network switch has the operating temperature of -40°C ~ 80°C, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box.
- Page 3 Lightning Surge Protection (Power): 5000A(8/20μs) DIN Rail and Wall mount support Max. PoE 30W per port (DN-651135 ONLY) Support full duplex or half duplex mode, with automatic negotiation capability Network port support automatic cross identification of internal ...
-
Page 4: Specification
4. Specification 4.1 Standard: IEEE802.3 10Base-TI; EEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x, IEEE802.3af, IEEE802.3at (DN-651135 ONLY) 4.2 Interface: 4-Port 10/100/1000Mbps RJ45 1 Port 1000Mbps SFP 4.3 Work environment: Working: -40 ~ 80 °C Storage: -40 ~ 80 °C... -
Page 5: Interface Definition
4.6 Mechanical characteristic: IP40 aluminum housing DIN rail install Natural cooling, no fan Weight: 0.45kg Measurement: 118 x 86 x 34 mm 4.7 Industrial standard: FCC Part 15 Subpart B, EN55032, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV;... - Page 6 RJ45 port supports automatic MDI/MDI-X operation, you can use a straight line to connect to the PC or server, connect to other switches or hubs. In the through line (MDI), pins 1, 2, 3, 4, 5, 6, 7, 8 correspond to the connection;...
- Page 7 The single mode fiber has a very thin glass core (core diameter, usually 9 or 10μm) and can transmit only one mode of light. Therefore, its inter-module dispersion is very small, and it is suitable for remote communication. Under normal circumstances, the skin is orange for multi-mode, yellow for single mode.
-
Page 8: Installation Caution
6. LED Indicator LED indicator Status Definition Power supplying in Red LED on normal Power Power supply abnormal Red LED off or no powering Network connection in Yellow LED on normal Link communication in Yellow LED flashing RJ45 indicator normal Green LED on PoE feeding in normal Yellow/Green LED off... - Page 9 7.2 Din rail installation: The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail; The second step: from the center to both sides of the guide rail positioning screws in order.
- Page 10 8. Packages Content Industrial switch 1 PCS Quick installation guide 1 PCS Rackmount kit 1 SET Terminal block 1 PCS This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.
