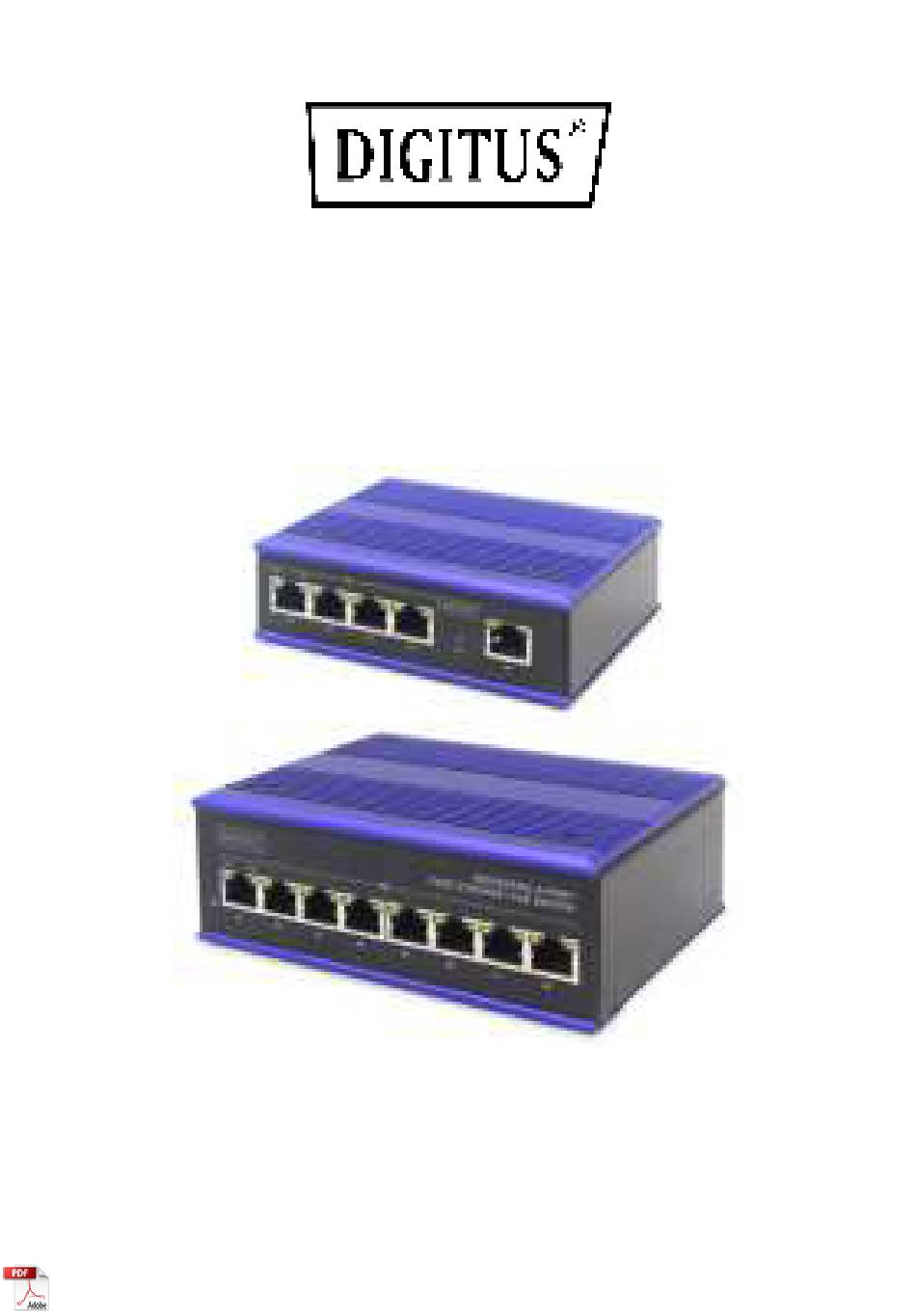

- Page 1 Industrial Fast Ethernet PoE+ Switch Quick Installation Guide DN-650107 (4-port PoE + 1 uplink port) DN-650108 (8-port) Rev.2...
-
Page 2: Package Contents
Package Contents Check the following contents of your package: • Network Switch x 1 • User Guide x1 • Terminal block x 1 • DIN Rail mount x 1 If any part is lost and damaged, please contact your local agent immediately. -
Page 3: Hardware Description

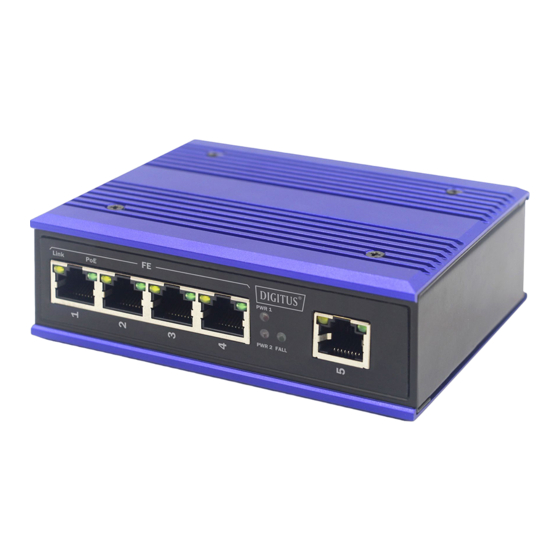

Hardware Description Front Panel The Front Panel consists of Ethernet Ports. The LED indicators are also located on the panel. DN-651107 DN-651108... -
Page 4: Led Indicator
LED indicator Color Function Off: No Power supply Light: Indicates the switch has power Off: No device is connected to the corresponding port Light: Indicates the link through that port is successfully established at 10/100 Orange LINK Mbps Blink: Indicates that the Switch is actively sending or receiving data over that port Off: No PoE powered device (PD) -
Page 5: Upper Panel
Upper Panel The upper panel has a standard 6-Pin industrial power input terminal for double redundant power backup and accepts DC power input. Power input This unit provides a 6-pin terminal block. It can be operated using 48-57 V DC power source. Always make sure your input voltage is within this supported voltage range. - Page 6 Figure: WARNING: Always SHUT OFF power source to connect power wire. WARNING: Any exceeded input voltage will not make this unit function and may damage this unit. Grounding column The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) with Ground Cable.
-
Page 7: Installation Of The Switch
Installation of the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions to avoid incorrect installation causing device damage and security threat. • Before cleaning the switch, unplug the power plug of the switch first. -
Page 8: Din-Rail Mounting
DIN-Rail Mounting The DIN-Rail is already screwed on the Industrial Equipment. Please refer to following figures and know how to hang the Industrial Equipment: Lightly press the button of DIN-Rail into the track. Step 1: Install Industrial Equipment in DIN-Rail mount. Check the DIN-Rail is tightly on the track. -
Page 9: Specifications
Remove DIN-Rail Mounting Please refer to following procedures to remove the Step 1: Industrial Equipment from the track. Remove Industrial Equipment in DIN-Rail mount. Lightly press the button of DIN-Rail for remove it from Step 2: the track. Specifications Industrial 4-Port Industrial Fast Ethernet PoE+ 8-port Fast... - Page 10 Transfer mode Store-and-Forward Switching Capacity 1Gbps 1.6Gbps Input power supply DC:48-57V Dimensions (L*W*H) 128*86*34mm 157*120*48mm Fanless PoE Port Port1~4 Port1~8 PoE Power on RJ45 Mode A 1/2(+),3/6(-) PoE Output 30W(Max) Operating Temperature: -40°C ~ 85 °C Temperature Storage Temperature: -40 °C ~ 85°C Operating Humidity: 5% ~ 95% non-condensing Humidity...
- Page 11 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
