- Page 1 INDUSTRIAL 16-PORT GIGABIT SWITCH, UNMANAGED Quick Installation Guide DN-651129...

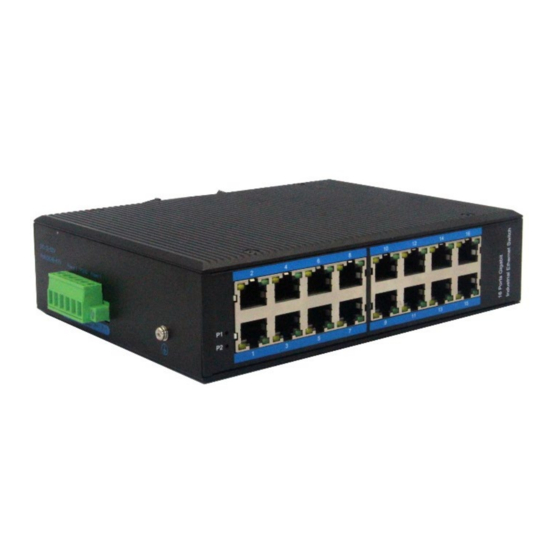

- Page 2 1. Overview Industrial Ethernet switch with 16-Port 10/100/1000Mbps BASE-TX, the Product meet CE, FCC, RoHS standards. DN-651129 switch has the operating temperature of -40℃ ~ 85℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box.
- Page 3 supplying power to PD device (this model is not to support PoE); Power indicator light is on when connecting with Power. 3. Features ● The use of high quality photoelectric integration module to provide good optical and electrical characteristics ● Ensure reliable data transmission and long working life ●...
- Page 4 4.5 Power supply: input voltage: DC12-52V (two-way power redundancy backup); Access terminal: Phoenix terminal, Support dual power redundancy; Support built-in over current 4.0A protection; Support reverse connection protection 4.6 Mechanical Characteristic: IP40 aluminum housing DIN rail install Natural colling, no fan Weight: 0,9Kg Measurement:...
- Page 5 5. Interface Definition 10/100/1000Base-TX ethernet interface: This switch provides MDI/MDI-X self-identification with cable support on all 10/100/1000Basc-TX ports. In use, the Ethernet port of the switch can be connected with other Ethernet terminal devices through network cables (direct or cross).Please use Class 5 shielded twisted pair.
- Page 6 6. LED Indicator LED indicator Status Definition Power supplying in Red LED on normal P1/P2 Power supply abnormal Red LED off or no powering Network connection in Yellow LED on normal Yellow LED Link communication in flashing normal RJ45 indicator Green LED on PoE feeding in normal Yellow/Green...
- Page 7 7.2 Din rail installation The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail; The second step: from the center to both sides of the guide rail positioning screws in order.
- Page 8 8. Packages Content Industrial switch 1 PCS User manual 1 PCS This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
