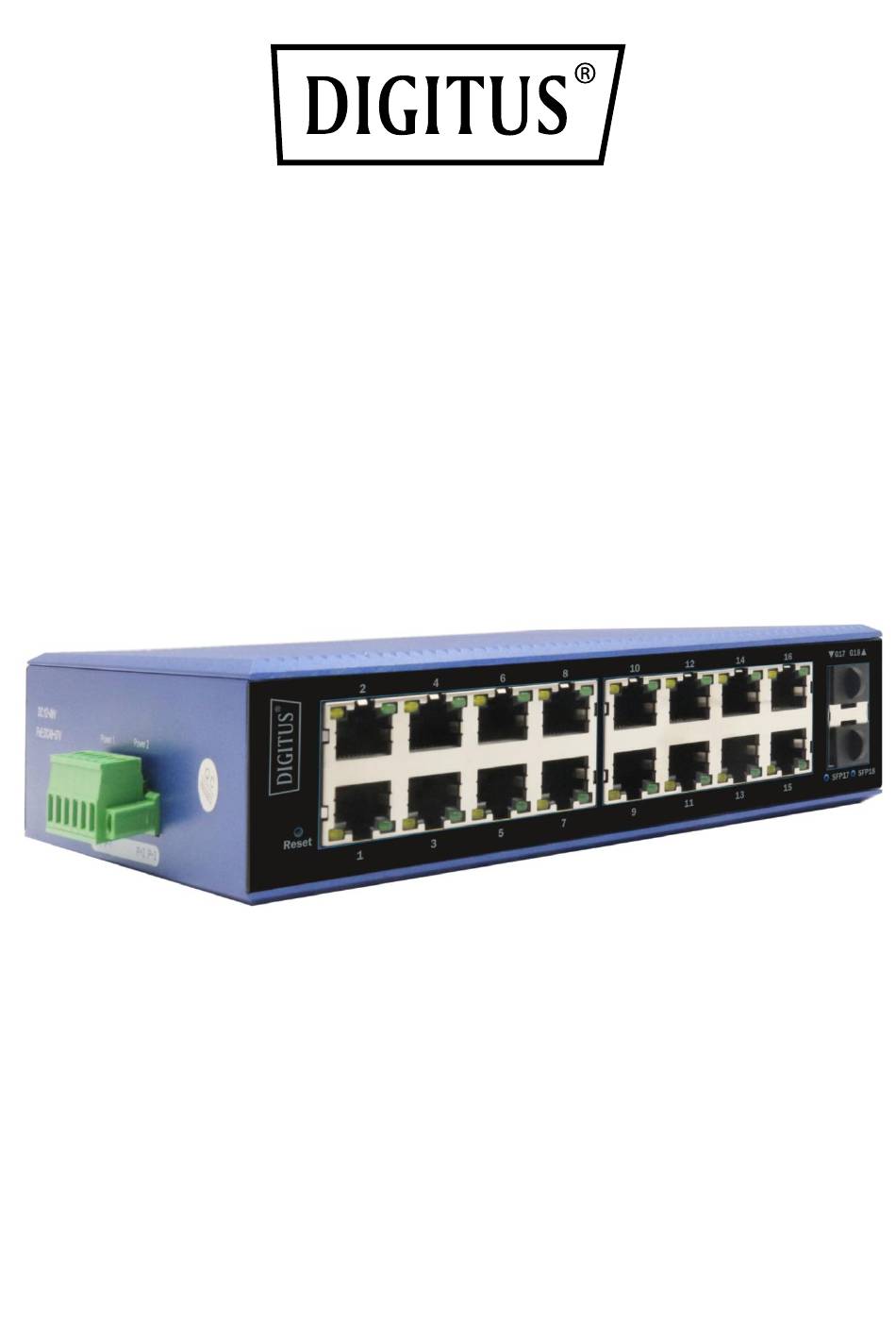

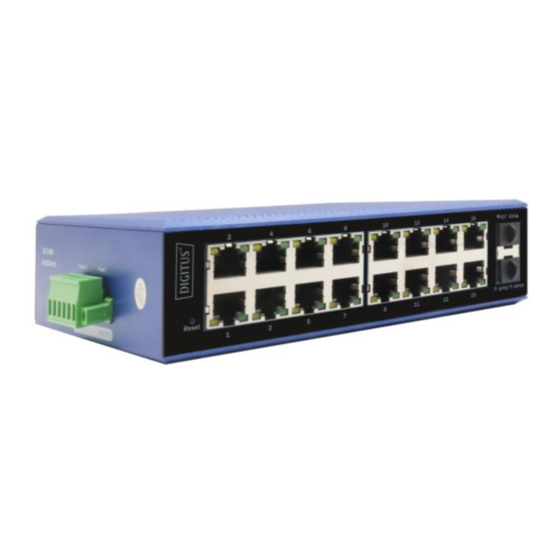

- Page 1 Layer 2 Industrial Switch Web configuration manual DN-651154, DN-651155 DN-651156, DN-651157 DN-651158, DN-651159...
-
Page 2: Table Of Contents
Table of content Log into the Switch Web Interface ....................3 Switch Information ........................4 2.1 Global Information ..........................4 2.2 Statistical Information ........................5 2.3 Log Information ..........................6 2.4 Alarm List ............................6 Port Management ......................... 7 3.1 Port Configuration ..........................7 3.2 Port Isolation ............................. -
Page 3: Log Into The Switch Web Interface
1. Log into the Switch Web Interface The default management address of the switch is 192.168.10.12/24, when logging into the web management page of the switch, you need to set the IP address of the local network card and the IP address of the switch are in the same segment, as shown in the following screen: the IP address of the local network card is set to 192.168.10.222/24. -
Page 4: Switch Information
2. Switch Information This module is used to view the internal data of the switch when it is running, including the flow rate of the port, the working mode, and the log information of the switch. 2.1 Global Information The following functions are in included: ○... -
Page 5: Statistical Information
Indicates that the port has been enabled and the connection has been established, indicates that the port is not enabled, and indicates the optical port. ○ 2 View the switch property information, click in the page to synchronize the local computer time with the system time of the switch. ○... -
Page 6: Log Information
2.3 Log Information Log is used to view simple switch log, and can view switch startup and port startup data, screen as blew: 2.4 Alarm List This page is used to view the alarm information of the switch;... -
Page 7: Port Management
3. Port Management 3.1 Port Configuration In this page, you can set the port rate, duplex mode, the max frame length (the value range is 1518-10240), flow control and switch port. In the link status, indicates that the port is not connected, or the port has been manually down. -
Page 8: Mirroring Port
3.3 Mirroring Port This page is used to configure the mirror port, used to configure to accept mirror data； is used to configure all port mirroring properties in one step. The configuration representative in the following page mirrors the sent message data of port 4 to port 1, screen as blew: 3.4 Rate Limited This page is used to limit the upper limit of port rate;... -
Page 9: Storm Control
3.5 Storm Control This page is used to limit the packet rate of port broadcast, multicast and unicast, 3.6 Port Energy Saving This function is used to open the energy saving mode of switch port, screen as blew:... -
Page 10: Poe
4. PoE 4.1 PoE Port Configuration You can view the working status of the port PoE and the current voltage and current data provided, screen as blew: In the link column of the page, indicates that the port has no data transmission, indicates that the port is in forwarding state, in the power supply status column indicates that the port is not PoE powered, and... -
Page 11: Timing Power Supply Configuration
4.3 Timing Power Supply Configuration Configure the periodic outage period or specific outage time of the switch. Apply the set power-off time to the port, and turn on this function by default for all ports. -
Page 12: Intelligent Power Supply Configuration
4.4 Intelligent Power Supply Configuration Set PoE port to automatically disconnect power supply when there is no data transmission within a certain period of time. The default value is that when there is no data transmission in 120 seconds, the POE port will disconnect the power supply, and the value range is 60 ~ 600 seconds. -
Page 13: L2 Management
5. L2 Management 5.1 MAC address table Check the MAC address of the device mounted on the switch 5.2 VLAN Configuration This page includes viewing VLAN State, VLAN Configuration, Voice VLAN Configuration, MAC VLAN configuration and IP VLAN configuration. Screen as blew: The screen below shows the configuration of port VLAN;... - Page 14 the dynamic characteristics of voice VLAN can add ports to multiple VLANs behind the scenes. The access port has the following characteristics: There is only one VLAN, port VLAN (also known as access VLAN), which is a member of 1 by default. ...
- Page 15 Port VLAN: Determine the VLAN ID (also known as PVID) of the port. The allowable VLAN range is 1 to 4095, and the default is 1. Voice VLAN configuration’s screen as blew: Enable Voice VLAN, the Access port will carry the IP voice traffic from the IP phone. When the switch is connected to Cisco IP phone (such as Cisco 7960 IP phone), the voice traffic sent by IP phone has three layers of IP priority and two layers of CoS value, which are set to 5 by default.
-
Page 16: Gvrp
5.3 GVRP Enable the GVRP function, screen as blew: The enabled GVRP function is applied to the designated port and configure its timer. Used to view the operation information of GVRP. 5.4 Link Aggregation On this page, you can configure static aggregation groups, dynamic aggregation groups, and view link aggregation information;... - Page 17 group number, as shown in Figure 21: 1-2 ports converge in a group; 3-4 ports in a group. Please keep configuration consistency for the ports of aggregation group members, such as port rate mode, VLAN information, etc. Link aggregation load balancing mode supports: "Source MAC address"...
- Page 18 Configure dynamic aggregation port as blew: Link aggregation information: view switch aggregation port information. The switch supports port dynamic aggregation. After enable the dynamic protocol of the port, the devices on both sides of the convergence exchange information through the protocol. According to the parameters and status of both sides, the matching links are automatically gathered together to send and receive data.
-
Page 19: Mstp Configuration
5.5 MSTP Configuration Global configuration: select the spanning tree protocol version (STP / RSTP / MSTP is optional), MSTP protocol is selected by default. An example of configuring MSTP: Set the mapping VLAN of multi spanning tree. Configuration name: identifies the name of the VLAN to MSTI mapping, the bridge must share the name and revision (see below), and the VLAN-to-MSTI mapping configuration in order to share the MSTI spanning tree. -
Page 20: Loop Protection
Interface instance configuration: configure the enable of the instance on the port. Screen as blew: Interface configuration: configure the enabled port of spanning tree protocol and the enabled port of BPDU message. Screen as blew: 5.6 Loop Protection Global Configuration: enable and set loop protection, screen as blew: Port Configuration: enable the loop protection function on the port. - Page 21 The unidirectional ring is usually composed of two optical fibers, one of which is the working fiber, represented by S; the other is the protective fiber, represented by P. Protection switching is accomplished by a reverse switch. In addition to the unidirectional switching ring, there are also bidirectional multiplexer switching double fiber ring and bidirectional multiplexing segment switching four fiber ring.
-
Page 22: Dhcp-Snooping
5.7 DHCP-snooping Global configuration: enable DHCP monitoring function, screen as blew: Static Binding: configure the static listening port, screen as blew: Port Configuration: enable DHCP monitoring function on the port, screen as blew:... -
Page 23: Igmp Snooping
5.8 IGMP Snooping IGMP snooping global configuration: configure IGMP monitoring enable and IGMP function attributes, screen as blew: IGMP snooping VLAN configuration: configure static multicast VLAN, screen as blew: IPv4 Static Multicast: configure static multicast function and enable port static multicast function, screen as blew:... -
Page 24: 802.1X Authentication
5.8 802.1x authentication Global configuration: enable 802.1x authentication function. Radius client address: configure radius authentication client address. Radius server shared secret key: a secret of up to 29 characters is shared between the server and the switch. Radius server timeout: (can be set to a number between 3 and 3600 seconds) It is the maximum time to wait for a response from the server. - Page 25 design. In order to deal with the lost frames, the super interval is divided into three sub intervals, each of which has the same length. If no response is received within the subinterval, the request is transmitted again. The server will be considered dead before the server is killed at most 3 times.
-
Page 26: Senior Management
6. Senior Management 6.1 QOS Configuration Global Configuration: Enable QoS function and configure QoS function properties. Port Configuration: Configure the QoS function properties on the port. -
Page 27: Acl Configuration
6.2 ACL Configuration MAC ACL configuration：Configure MAC based ACL access list. IP ACL Configuration：Configure IP based ACL access control list. - Page 28 TIME RANGE Configuration：ACL time range setting. ACL GROUP Configuration：Configure ACL access control list port group.
-
Page 29: Snmp Configuration
6.3 SNMP Configuration System Information：Enable all SNMP protocol versions, configure SNMP protocol system properties and enable trap function. Group: Configure SNMP community properties. -
Page 30: Rmon
V3: configure the member attribute of SNMP V3 protocol version. Trap: configure trap receiving address and corresponding SNMP protocol version. 6.4 RMON Event group: query and add event groups monitored remotely. - Page 31 Statistics group: query the statistical information of specific events after the event is broken. History group: add and query the history of a specific event at the port. Alarm group: add the attribute of alarm event query on the port.
-
Page 32: Lldp Configuration
6.5 LLDP Configuration Global configuration: turn on and configure LLDP function attributes. Port configuration: configure port LLDP function attributes. LLDP 邻居：查询 LLDP 邻居信息；... -
Page 33: Ntp Configuration
6.6 NTP Configuration Global configuration: configure NTP function enable, time zone selection and check the modification of time interval. NTP server configuration: configure the NTP server address and view the NTP server status. 6.7 Anti Attack It can open DDoS and ICMP echo;... -
Page 34: System Management
7. System Management 7.1 User Settings Modify the user login password, the account name cannot be changed or added users. 7.2 Network Settings IPv4 configuration: modify the IPv4 address of the switch, cannot add IP address. IPv6 configuration: modify the IPv6 address of the switch, cannot add IP address. -
Page 35: Alarm Configuration
7.3 Alarm Configuration Configure switch alarm function to enable. 7.4 Service Configuration Configure switch Telnet, SSH, HTTP version protocol and service port. 7.5 Configuration Management For reset, upload and download switch configuration. -
Page 36: Firmware Update
7.6 Firmware Update It is used to upgrade the software version of the switch. 7.8 Diagnostic Testing Ping detection: use the ping function of the switch to detect whether the link between the switch itself and other IP devices is smooth. Tracert detection: Traceroute. -
Page 37: Reboot Device
Network line detection: detect the network line attribute of all network ports of the switch. 7.9 Reboot Device Restart the switch. This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
