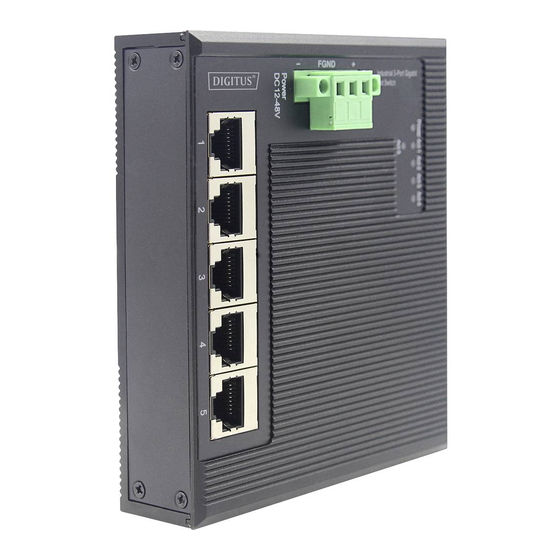

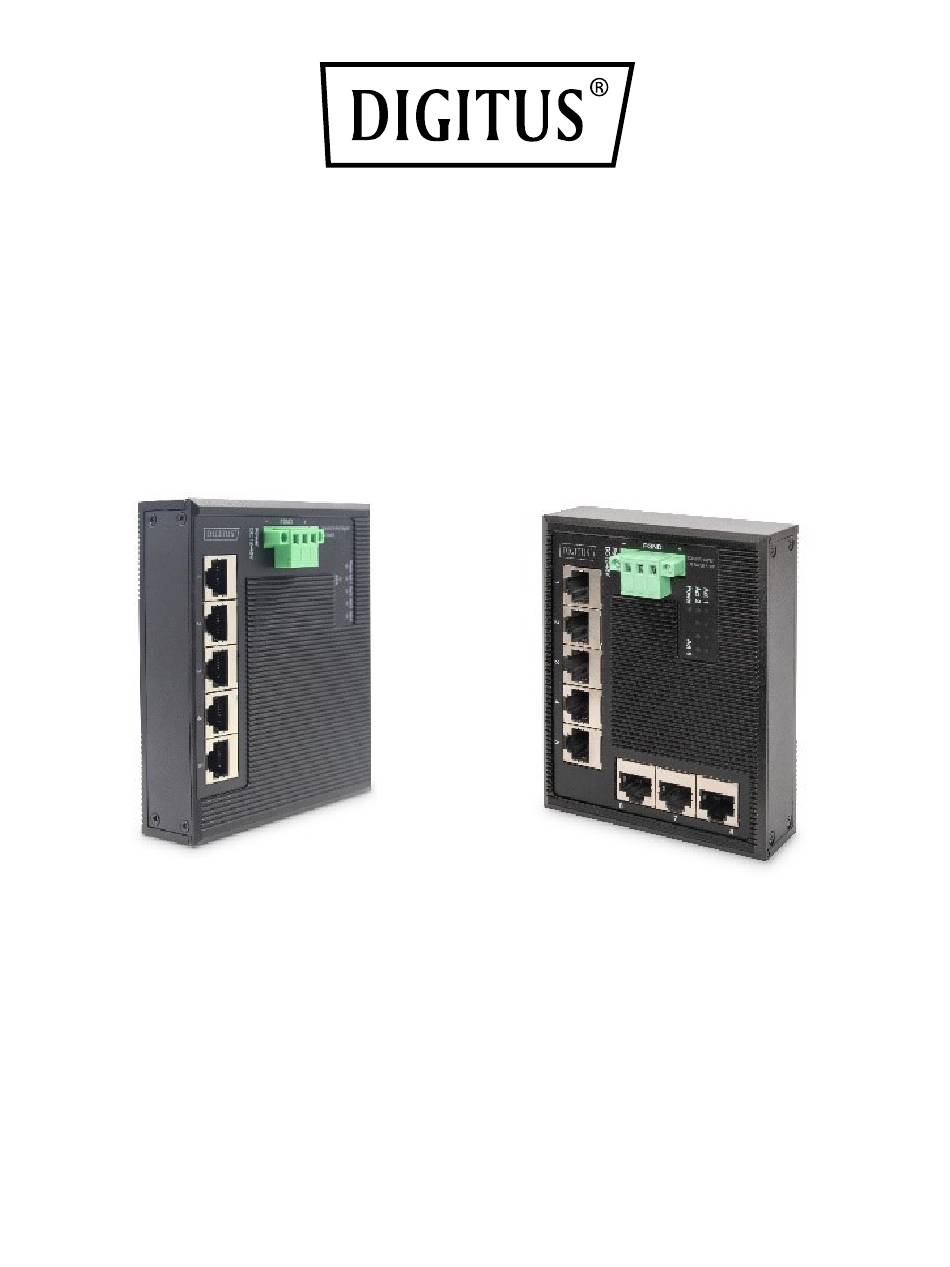

- Page 1 INDUSTRIAL GIGABIT SWITCH DN-651126 (5-port) DN-651127 (8-port) User Manual...
-
Page 2: Package Content
Package content Check the following contents of your package: Ethernet Switch x 1 User Guide x 1 Terminal block x 1 DIN Rail mount x 1 If any part is lost and damaged, please contact your local agent immediately. -
Page 3: Hardware Description
Hardware Description Upper Panel The upper panel has a standard 3-Pin industrial power input terminal for DC power input. Also Ethernet Ports and LED indicators are located on the panel. DN-651126 DN-651127 LED indicator Color Function Off: No Power supply... -
Page 4: Power Input
Power input This unit provides a 3-pin terminal block. It can be operated using 12-48 V DC power source. Always make sure your input voltage is within this supported voltage range. To connect power: This unit supports two power inputs. Follow the printed polarity for +Power-, - and ground. -
Page 5: Installation Of The Switch
WARNING: Always SHUT OFF power source to connect power wire. Any exceeded input voltage will not make this unit function and may damage this unit. Grounding Column The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) with Ground Cable. -
Page 6: Din-Rail Mounting
DIN-Rail Mounting The DIN-Rail is already screwed on the Industrial Equipment. Please refer to following figures and know how to hang the Industrial Equipment: Step 1: Lightly press the button of DIN-Rail into the track. Install Industrial Equipment in DIN-Rail mount. - Page 7 Step 2: Check the DIN-Rail is tightly on the track.
- Page 8 Remove DIN-Rail Mounting Step 1: Please refer to following procedures to remove the Industrial. Equipment from the track. Remove Industrial Equipment in DIN-Rail mount. Step 2: Lightly press the button of DIN-Rail for remove it from the track.
- Page 9 Model DS-651126 DS-651127 Industrial 5-Port Industrial 8-port Description Gigabit Switch Gigabit Switch IEEE802.3, IEEE802.3u, IEEE802.3ab, Standard IEEE802.3x, IEEE 802.3z 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m) Network Media(Cable) 1000BASE-T: UTP category 5e, 5 cable (≤100m) MAC Address Table 4K, Auto-learning, Auto-aging Transfer mode...
- Page 10 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
