- Page 1 L2 Managed Switch (PoE) Quick Installation Guide DN-651154, DN-651155 DN-651156, DN-651157 DN-651158, DN-651159...
-
Page 2: Table Of Contents
Table of content Overview .................. 2 Features ..................3 Specification ................3 3.1 standard ................3 3.2 Interface................3 3.3 Work environment .............. 4 3.4 Power supply ..............4 3.5 Mechanical characteristic ........... 4 3.7 Industrial standard .............. 4 3.8 Spec table ................5 Package .................. -
Page 3: Features
IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab, IEEE802.1D-Spanning Tree Protocol, IEEE802.1w-Rapid Spanning Tree Protocol, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service, IEEE802.1X-Port Based Network Access Control etc. 3.2 Interface DN-651154 / DN-651155 (PoE) 4 Port Gigabit RJ45+2 Port Gigabit SFP DN-651156 / DN-651157 (PoE) -
Page 4: Work Environment
8 Port Gigabit RJ45+2 Port Gigabit SFP DN-651158 / DN-651159 (PoE) 16 Port Gigabit RJ45+2 Port Gigabit SFP 3.3 Work environment Work environment: -40～80 °C storage temperature: -40～85 °C relative humidity: 5%～95% (no condensation) 3.4 Power supply input voltage: DC12-48V Input voltage: DC48-57V (PoE Version) (Two-way power redundancy backup) Access terminal: Terminal block... -
Page 5: Spec Table
3.8 Spec table Model No DN-651154 DN-651155 Network port 4 x 1000Mbps SFP slot 2 x 1000Mbps IEEE802.3af PoE Spec. IEEE802.3at Power Pin 1/2+;3/6- Assignment Bandwidth 20 Gbps Packet Buffer 4.1 Mbit Memory Forwarding rate 15 Mpps Mac address table Max. - Page 6 Model No DN-651156 DN-651157 Network port 8 x 1000Mbps SFP slot 2 x 1000Mbps IEEE802.3af PoE Spec. IEEE802.3at Power Pin 1/2+;3/6- Assignment Bandwidth 20 Gbps Packet Buffer 4.1 Mbit Memory Forwarding rate 15 Mpps Mac address table Max. Frame Size 10240 bytes Power <...

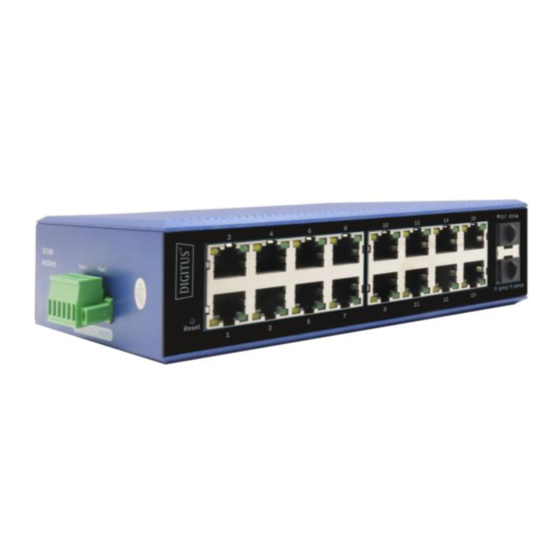

- Page 7 Model No DN-651158 DN-651159 Network port 16 x 1000Mbps SFP slot 2 x 1000Mbps IEEE802.3af PoE Spec. IEEE802.3at Power Pin 1/2+;3/6- Assignment Bandwidth 56 Gbps Packet Buffer 4.1 Mbit Memory Forwarding rate 42 Mpps Mac address table Max. Frame Size 10240 bytes Power <...
-
Page 8: Package
Side panel: P1 and P2 are the number of connecting terminals, P+1 and P-1 are respectively to the positive and negative poles to be connected; Earthing screw used for earthing equipment. DN-651154 / DN-651155 4+2 port DN-651156 / DN-651157 8+2 port... - Page 9 PD; green LED on is for system operation. the power indicator “POW” shows Whether the current device is received power in normal. The green LED for optical link Switch size(mm) DN-651154/DN-651155 4port: 143.7*104*47.7mm DN-651156/DN-651157 8port: 143.7*125*47.7mm DN-651158 / DN-651159 16port: 175.6*135*45.5mm...
-
Page 10: Led Indicator
6. LED Indicator LED Indicator Status Definition Red LED on Power work in normal Power No power or power in Red LED off trouble Yellow LED on Ethernet work in normal Link communication in Yellow LED flashing normal RJ45 LED PoE feeding to PD Green LED on device in normal... -
Page 11: Din Rail Installation
7.2 Din rail installation The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail; The second step: from the center to both sides of the guide rail positioning screws in order. -
Page 12: Management System Login
8. Management system Login This series of Managed ethernet switches provides a serial port- based management system program debugging port. Located at the front of panel to log in to the command line via a standard Cisco line. Console port: baud rate 115200 Web IP: 192.168.10.12 User name: admin Password: admin For detail Web User Instruction, which is available on...
