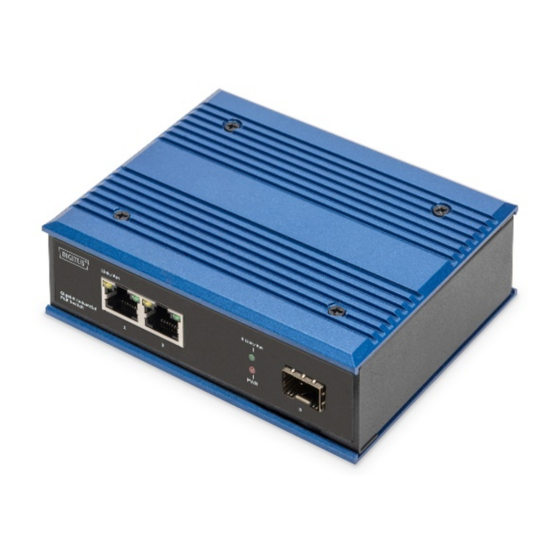

Digitus DN-652120 Quick Installation Manual

Digitus DN-652120 Quick Installation Manual

Gigabit industrial poe switch 2 x rj45, 1x sfp

Advertisement

Quick Links

Gigabit Industrial PoE
Switch 2 x RJ45, 1x SFP
Quick Installation Guide
DN-652120

Advertisement

loading
Need help?

Need help?

Do you have a question about the DN-652120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DN-652120

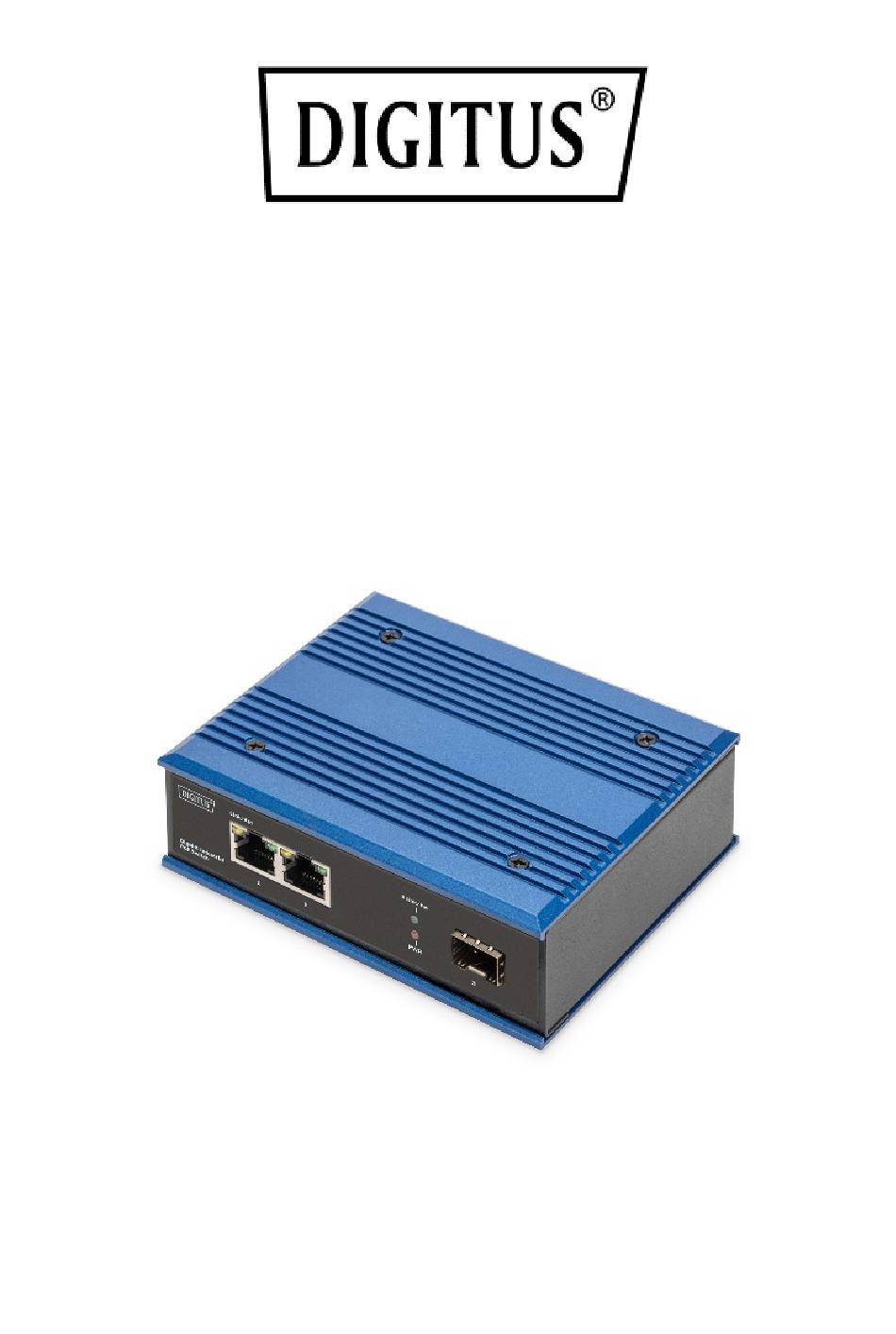

  • Page 1 Gigabit Industrial PoE Switch 2 x RJ45, 1x SFP Quick Installation Guide DN-652120...
  • Page 2: Table Of Contents

    The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-652120 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
  • Page 3: Main Features

    2. Main Features The use of high quality photoelectric integration module • to provide good optical and electrical characteristics Ensure reliable data transmission and long working life • • Support full duplex or half duplex mode, with automatic negotiation capability Network port support automatic cross identification •...
  • Page 4: Switch Panel

    Earthing screw, used for earthing equipment. DN-652120 Front panel: The yellow light on the port is the LINK light, which is on when the connection is established, and the data transmission is flashing. The green light is PoE light, which is only on when the switch port is supplying power to the PD devices.
  • Page 5: Specification

    Switch size(mm) 5. Specification 5.1 Standard: IEEE802.310 BASE-TIEEE 802.3i 10 Base-T; IEEE802.3u; 100Base-TX / FX; IEEE802.3ab1000Base-T; IEEE802.3z1000Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at 5.2 Interface: 2-Port 10/100/1000Mbps RJ45(PoE) + 1 Port 1000Mbps SFP Industrial Switch 5.3 Work environment: Operating temperature: -40~80 °C Storage temperature: -40~80 °C 5.4 Switch: Bandwidth: 14Gbps Packet Buffer Memory: 1.2Mbit...
  • Page 6 Packet Forwarding Rate: 10.5Mpps MAC Address Table: 2K 5.5 Power supply: input voltage: DC48-57V (two-way power redundancy backup); Access terminal: Phoenix terminal; Support dual power redundancy; Support built-in over current 4.0A protection; Support reverse connection protection 5.6 Mechanical characteristic: IP40 aluminum housing DIN rail install, Natural cooling (No fan) Weight: 0.42Kgs.
  • Page 7: Interface Definition

    Frequency range:150kHz-80MHz Impact: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 6. Interface Definition 10/100/1000Base-TX ethernet interface: This series of switches provides MDI/MDI-X self-identification with cable support on all 10/100/1000 Base-TX ports. In use, the Ethernet port of the switch can be connected with other Ethernet terminal devices through network cables (direct or cross).
  • Page 8: Led Indicator

    Pin No. MDI signal MDI-X-signal 4, 5, 7, 8 Note: "Tx ±" refers to sent data ±, "Rx ±" refers to received data ±, and "-" refers to unused data. 7. LED Indicator Status Definition indicator Red LED on Power supplying in normal Power Power supply abnormal or Red LED off...
  • Page 9: Installation Caution

    LINK Green flashing Optical work in normal 8. Installation caution 8.1 Installation precautions In order to avoid damage to equipment and personal injury caused by improper use, please follow the following precautions: • In order to avoid damage caused by falling of the equipment, please put the equipment in a stable environment When supplying power to the equipment, pay attention to...
  • Page 10 8.2 Din rail installation: The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail. The second step: from the center to both sides of the guide rail positioning screws in order.
  • Page 11 first power supply P1, and P+2 and P-2 input corresponding to the second power supply P2). The available voltage standard of the power supply is supported from 48VDC to 57VDC.
  • Page 12 Disclaimer This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
