6.10 Microphone Input

(1) Connect a microphone with a 3.5mm cable output to MIC on the back of the camera.
(2) Return to the user interface, and if necessary, click on the Stop button in the Channel Controls
section of the user interface CH1 tab or the Stop All button in the lower right corner of the screen of
any tab.
(3) Verify Audio Enable is set to True and set your desired values for Codec, Sample Rate and Bit Rate.
(4) Select the appropriate option from the Source dropdown menu corresponding to your microphone:
a. MIC Line-In should be used with powered/amplified microphone or a source other than a
microphone to feed audio into the encoder.
b. MIC should be used with non-powered/non-amplified microphones.
(5) Set Audio Enable to False to disable encode of the audio input.
______________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8

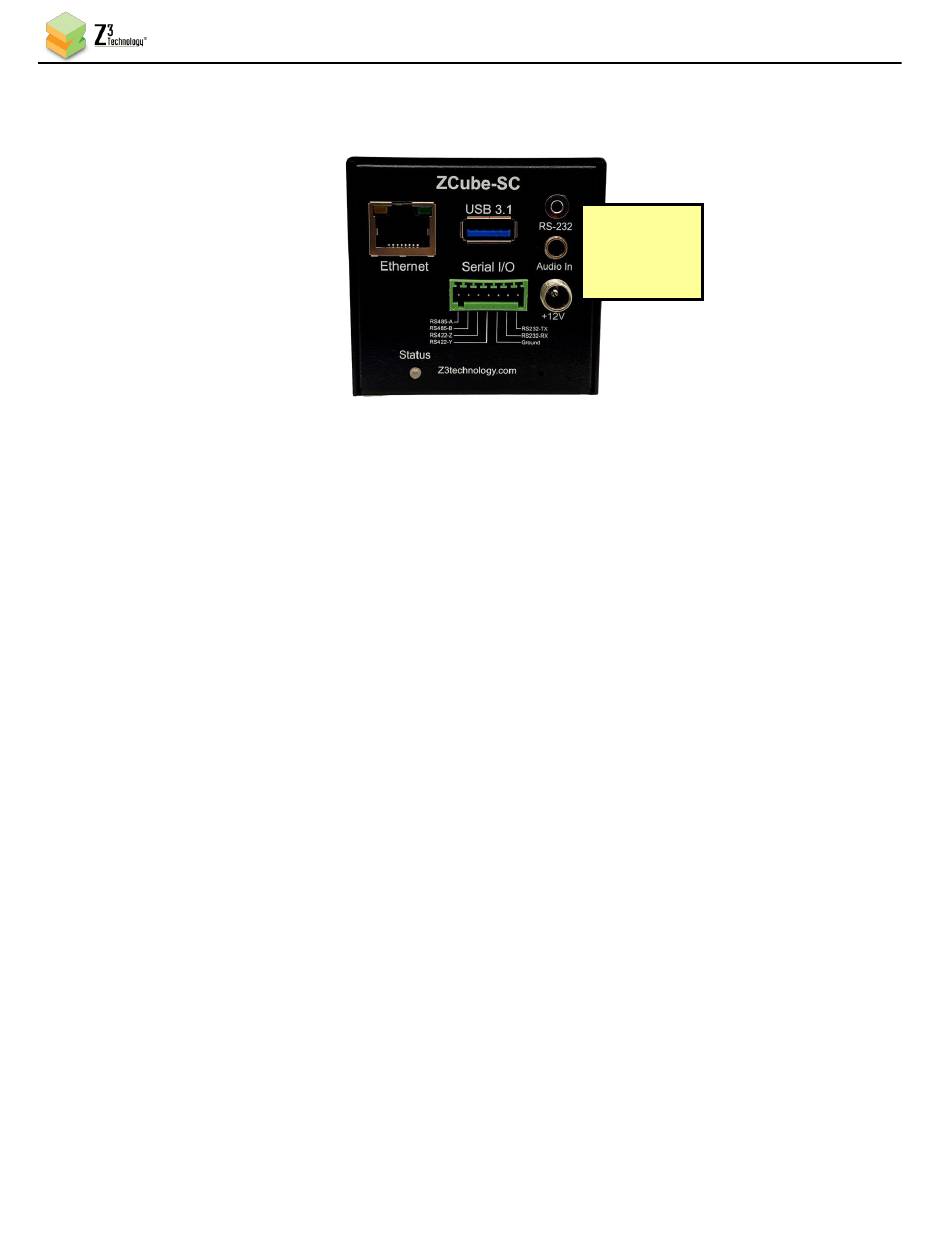

Figure 33 Microphone Connection
