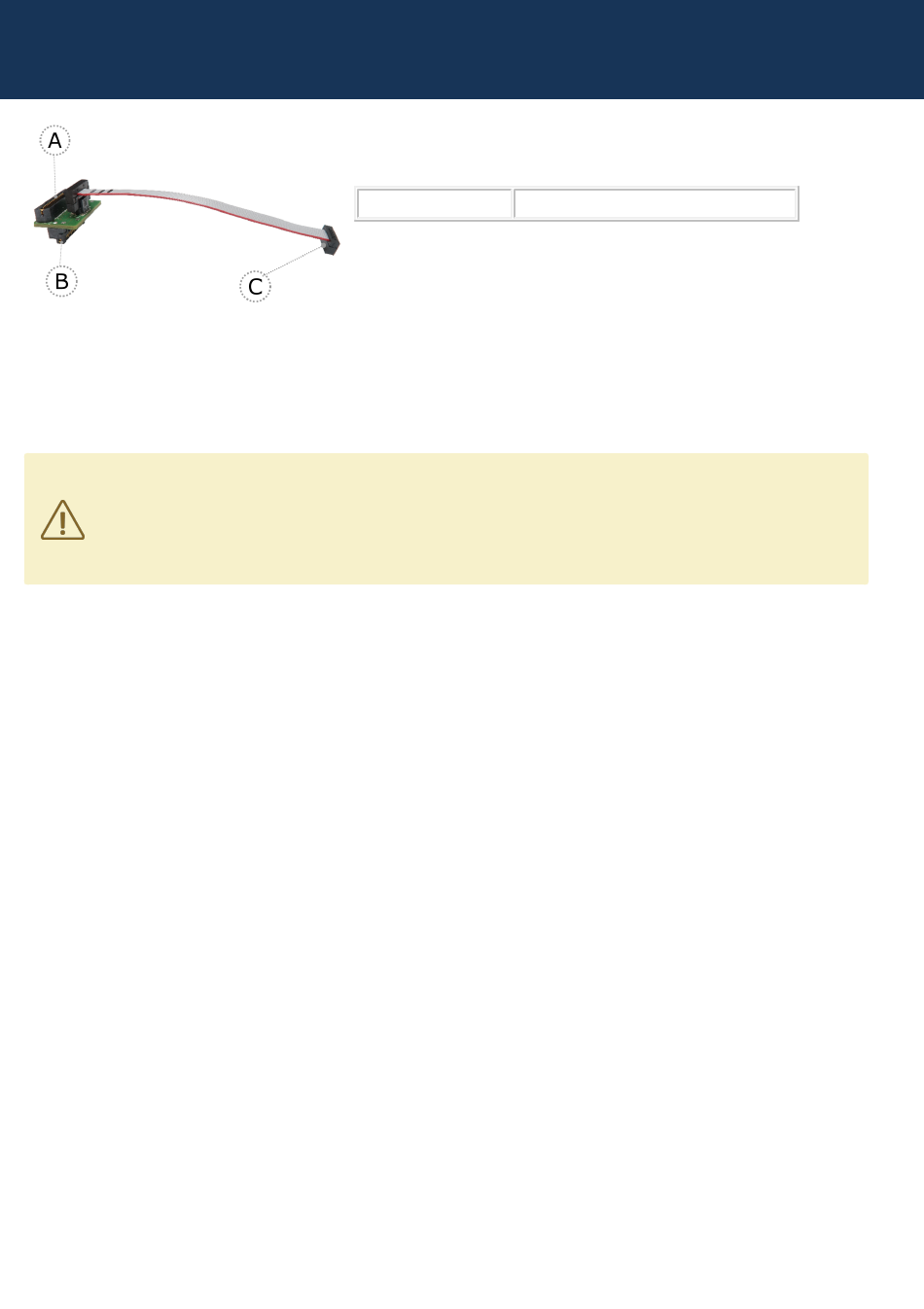

40-pin Samtec ERF8 to 10-pin 1.27mm CoreSight and 40-pin

Samtec ERF8 HSSTP Converter

Normally 40-pin ERF8 ARM HSSTP connector provides both, ARM HHSTP trace interface and

JTAG or SWD debug interface. However, some targets for some reason don't connect debug in-

terface to this connector and provide the debug JTAG/SWD interface on a separate debug con-

nector (10-pin 1.27mm CoreSight). Using this adapter, the Active Probe can be properly connec-

ted to such target.

This converter is required only when the Active Probe is to be connected to the em-

bedded target where the 40-pin Samtec ERF8 target debug connector doesn't have

the debug JTAG/SWD interface physically connected but has it connected instead to

the available 10-pin 1.27 mm CoreSight target debug connector.

The adapter doesn't come along the Active Probe and has to be ordered separately.

Ordering code

IASAM40HSSTP-JTAGSAM
