AJAX ManualCallPoint Jeweller User Manual

Hide thumbs Also See for ManualCallPoint Jeweller:

Advertisement

Quick Links

Download this manual
ManualCallPoint Jeweller user manual

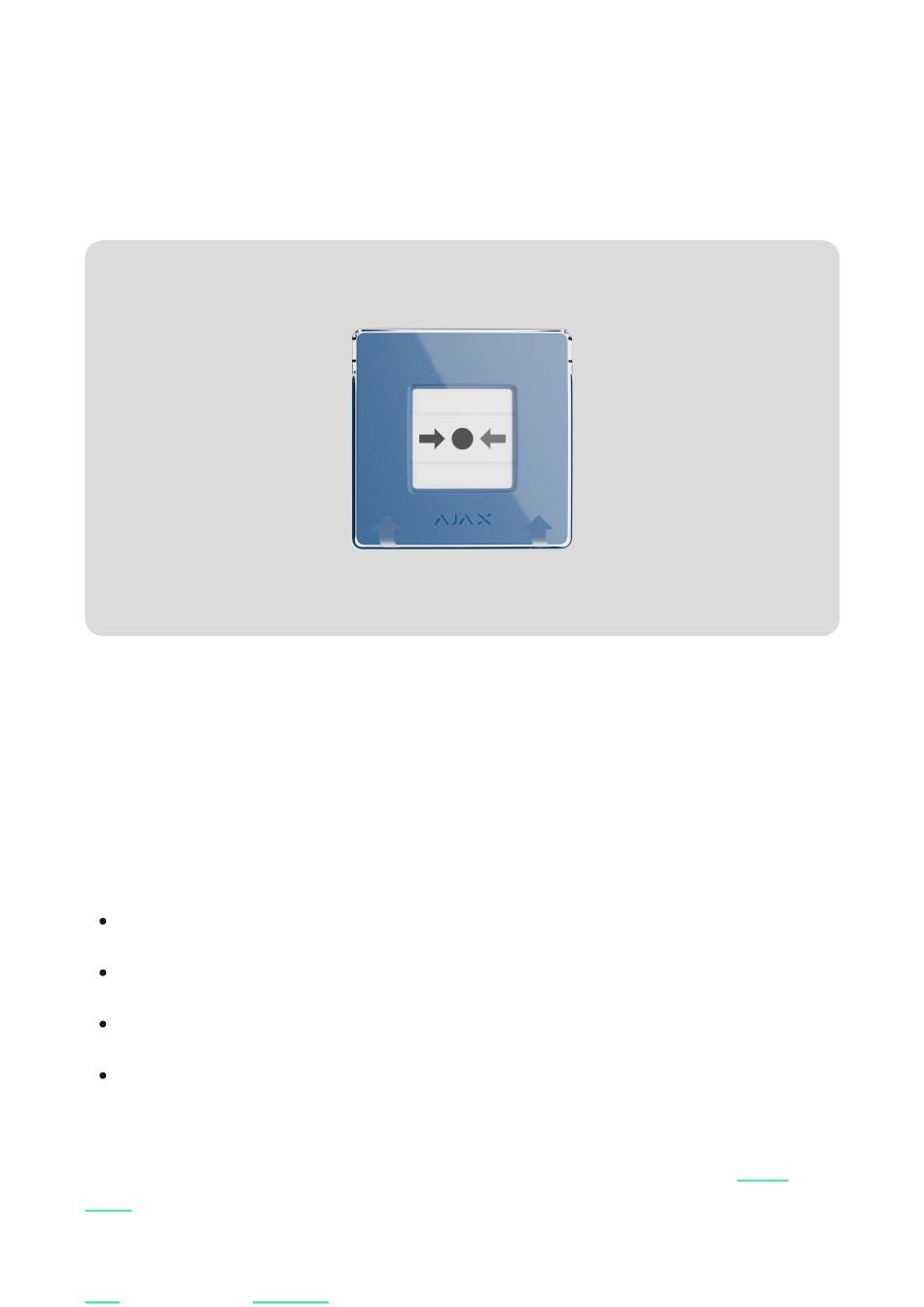

ManualCallPoint Jeweller is a wireless resettable button featuring programmable
scenarios. The device allows you to activate automation scenarios or alarms in case
of an emergency. The button can be reset using the special tool (key) included in the
kit. The device is designed for indoor installation only.
The button is available in several versions:
ManualCallPoint (Blue) Jeweller;
ManualCallPoint (Green) Jeweller;
ManualCallPoint (Yellow) Jeweller;
ManualCallPoint (White) Jeweller.
Each version has identical functionality. However, unlike the other versions, the
default operating mode of ManualCallPoint (Red) Jeweller is Fire Alarm.
more
To transmit events and alarms, ManualCallPoint Jeweller communicates with the
hub
via the secure
Jeweller
Updated July 24, 2024
protocol. The communication range is up to 1,700
Learn

Advertisement

loading
Need help?

Need help?

Do you have a question about the ManualCallPoint Jeweller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX ManualCallPoint Jeweller

Summary of Contents for AJAX ManualCallPoint Jeweller

  • Page 1 Each version has identical functionality. However, unlike the other versions, the default operating mode of ManualCallPoint (Red) Jeweller is Fire Alarm. Learn more To transmit events and alarms, ManualCallPoint Jeweller communicates with the via the secure Jeweller protocol. The communication range is up to 1,700...

  • Page 2: Functional Elements

    . Triggers when someone tries to detach the button enclosure from the surface or remove it from the mounting panel. . Power button. 7. QR code with the device ID for pairing the button with an Ajax hub. . Hole for the special tool. 9. Special tool (key).

  • Page 3: Operating Principle

    Hub Hybrid (4G) Jeweller Operating principle ManualCallPoint Jeweller enables scenario or alarm triggering in case of an emergency. Lift the transparent protective lid (if installed) and press the central part (resettable frangible element) to activate. This action moves the frangible element inward, raising the alarm.
  • Page 4 ManualCallPoint Jeweller is triggered, users and a connected central monitoring station (CMS) receive a notification under the Smart home event tab. Resetting ManualCallPoint Jeweller with a special tool (key) can also activate a scenario. How to create and configure a scenario in the Ajax system When Fire Alarm operating mode is enabled, the system activates the built-in sirens of fire detectors and intrusion sirens.
  • Page 5 Ajax app and go to the Devices tab. 2. Select ManualCallPoint Jeweller from the list of devices and go to Settings by clicking the gear icon 3. Select the Scenario Trigger mode in the Operating Mode section. 4. Go to the Scenarios menu. If you are creating a scenario for the first time, click Create Scenario.
  • Page 6 , third-party security control panels, or ocBridge Plus and uartBridge integration modules. To connect ManualCallPoint Jeweller to the hub, the device must be located at the same secured facility as the system (within the hub’s radio network range). When using ReX 2 radio signal range extender, add the device to the hub first, then...
  • Page 7 The hub and the device operating at different radio frequencies are incompatible. The radio- frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can verify the range of operating radio frequencies with the...
  • Page 8 ManualCallPoint Jeweller works with one hub. When connected to a new hub, the device stops sending events to the old one. Adding the button to a new hub does not automatically remove it from the device list of the old hub. This must be done through the Ajax app. Malfunctions...
  • Page 9 The Ajax app displays a malfunction counter on the device icon when a malfunction is detected. All malfunctions are indicated in the device’s states. Fields with malfunctions will be highlighted in red. A malfunction is displayed if: no connection with the hub or radio signal range extender via Jeweller;...
  • Page 10 The device was not transferred to the new hub. Learn more States The states include information about the device and its operating parameters. You can find the states of ManualCallPoint Jeweller in Ajax apps: 1. Sign in to the Ajax app 2. Select a hub.
  • Page 11 Battery Charge Low. How battery charge is displayed in Ajax apps The status of the button tamper that responds to detachment or opening of the device enclosure: Open — the button was removed from SmartBracket mounting panel, or its integrity was compromised.
  • Page 12 Device ID. Also available on the QR code on both Device ID the button enclosure and its packaging. Device No. Number of the device loop (zone). Settings To change ManualCallPoint Jeweller settings, in the Ajax app: 1. Go to the Devices tab.
  • Page 13 2. Select ManualCallPoint Jeweller from the list. 3. Go to Settings by clicking on the icon. 4. Set the required parameters. 5. Click Back to save the new settings. Parameter Value Name Name of the device. Can be changed. Selecting the virtual room to which Room ManualCallPoint Jeweller is assigned.

  • Page 14: Functionality Testing

    Learn more Disconnects ManualCallPoint Jeweller from the Delete Device hub and deletes its settings. Indication ManualCallPoint Jeweller informs about its state with an LED indication in the upper right corner of the device. Category Indication Event The LED flashes as long as the Alarm.

  • Page 15: Device Placement

    The Ajax system offers several types of tests to assist in selecting the correct installation location for the devices. These tests do not start immediately. However, the waiting time does not exceed the duration of one hub-device polling interval. You can configure the polling interval in the hub settings (Hub →...

  • Page 16: Signal Strength

    ManualCallPoint Jeweller should be fixed at a height of 1.4 m above the finished floor level, in easily accessible, well-illuminated, and conspicuous positions free from potential obstruction. They should be set against a contrasting background for easy recognition. A lower mounting height is acceptable if there’s a high likelihood that the first person to raise a fire alarm will be a wheelchair user.

  • Page 17: Installation

    5. In hard-to-reach or poorly lit places. Installation Before installing ManualCallPoint Jeweller, ensure that you have selected the optimal location that complies with the requirements of this manual. To mount the button: 1. Remove SmartBracket mounting panel from the button. To do this, insert the special tool into the hole and slide the mounting plate down.
  • Page 18 4. Run the Jeweller signal strength test . Aim for a signal strength of two or three bars. 5. Remove the button from SmartBracket. . Securely attach SmartBracket mounting panel using the bundled screws at all fixation points. One fixation point is in the perforated part of the mounting panel above the tamper.

  • Page 19: Maintenance

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the date of purchase. If you encounter any issues with the device’s functionality, we recommend contacting Ajax Technical Support first. In most cases, technical issues can be resolved remotely. Warranty obligations...
