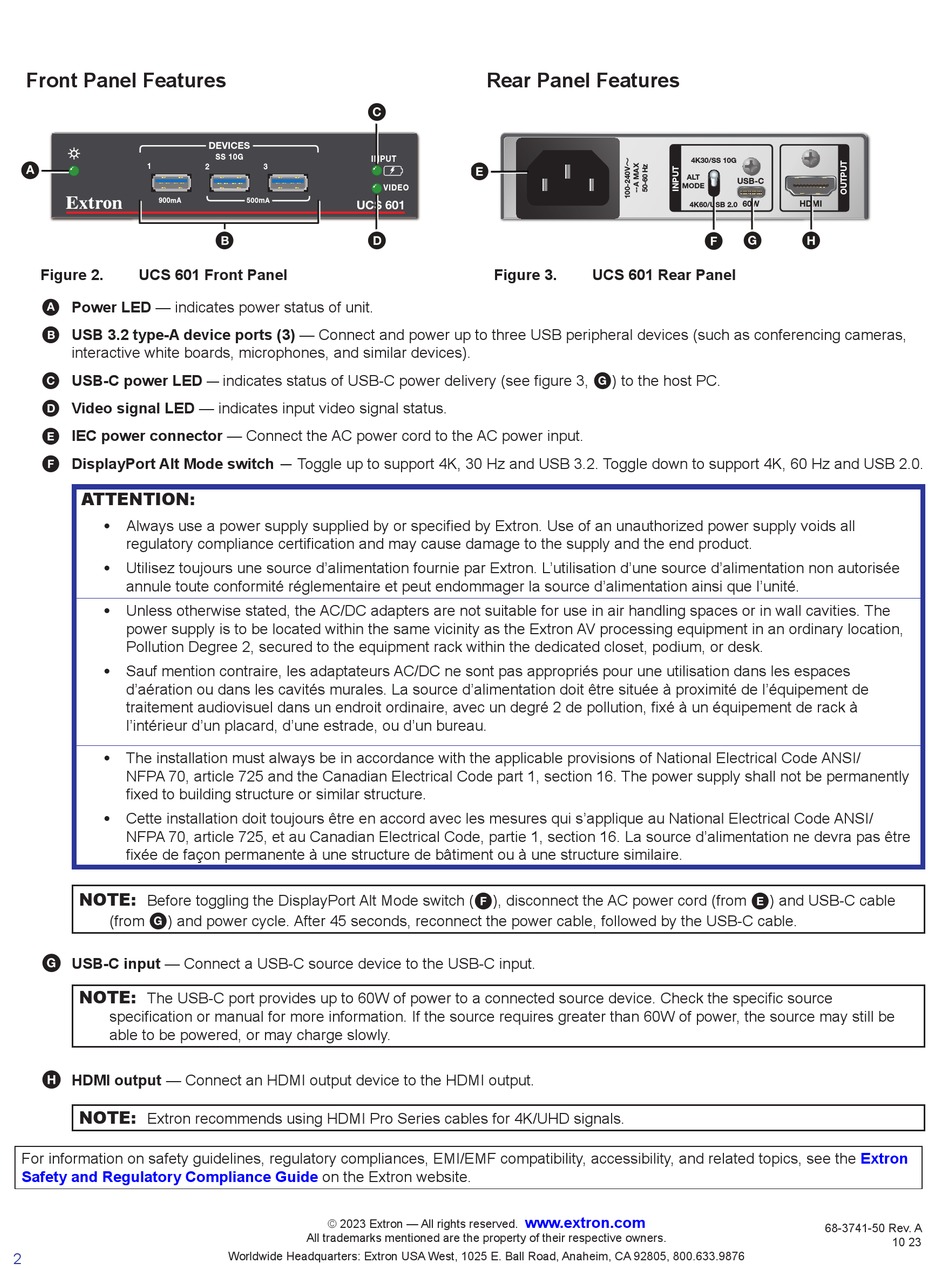

Front Panel Features

A A A 1
A A A 1
e e
900mA
900mA
Figure 2. UCS 601 Front Panel
Power LED — indicates power status of unit.
A
USB 3.2 type-A device ports (3) — Connect and power up to three USB peripheral devices (such as conferencing cameras,
B
interactive white boards, microphones, and similar devices).
USB-C power LED — indicates status of USB-C power delivery (see figure 3,
C
Video signal LED — indicates input video signal status.
D
IEC power connector — Connect the AC power cord to the AC power input.
E
DisplayPort Alt Mode switch — Toggle up to support 4K, 30 Hz and USB 3.2. Toggle down to support 4K, 60 Hz and USB 2.0.
F
ATTENTION:
• Always use a power supply supplied by or specified by Extron. Use of an unauthorized power supply voids all
regulatory compliance certification and may cause damage to the supply and the end product.
• Utilisez toujours une source d'alimentation fournie par Extron. L'utilisation d'une source d'alimentation non autorisée
annule toute conformité réglementaire et peut endommager la source d'alimentation ainsi que l'unité.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The
power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location,
Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.
• Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une utilisation dans les espaces
d'aération ou dans les cavités murales. La source d'alimentation doit être située à proximité de l'équipement de
traitement audiovisuel dans un endroit ordinaire, avec un degré 2 de pollution, fixé à un équipement de rack à
l'intérieur d'un placard, d'une estrade, ou d'un bureau.
• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/
NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently
fixed to building structure or similar structure.
• Cette installation doit toujours être en accord avec les mesures qui s'applique au National Electrical Code ANSI/
NFPA 70, article 725, et au Canadian Electrical Code, partie 1, section 16. La source d'alimentation ne devra pas être
fixée de façon permanente à une structure de bâtiment ou à une structure similaire.
NOTE:
Before toggling the DisplayPort Alt Mode switch (
(from ) and power cycle. After 45 seconds, reconnect the power cable, followed by the USB‑C cable.
G
USB-C input — Connect a USB-C source device to the USB-C input.
G
NOTE:
The USB‑C port provides up to 60W of power to a connected source device. Check the specific source
specification or manual for more information. If the source requires greater than 60W of power, the source may still be
able to be powered, or may charge slowly.
HDMI output — Connect an HDMI output device to the HDMI output.
H
NOTE:
Extron recommends using HDMI Pro Series cables for 4K/UHD signals.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Safety and Regulatory Compliance Guide
2
C C C
DEVICES
DEVICES
SS 10G SS 10G
INPUT
2 3
2 3
VIDEO
500mA
500mA UCS 601
UCS 601
B B B
B B B D D D
on the Extron website.
© 2023 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

Rear Panel Features

C C C
INPUT
E E E
E E E
VIDEO
D D D
Figure 3.
), disconnect the AC power cord (from
F
www.extron.com
4K30/SS 10G 4K30/SS 10G
ALT
ALT
USB-C
USB-C
MODE MODE
60W
4K60/USB 2.0 60W
4K60/USB 2.0
F F F G G G
F G F F G G
UCS 601 Rear Panel
) to the host PC.
G
) and USB-C cable
E
HDMI
HDMI
H H H
H H H
Extron
68-3741-50 Rev. A
10 23
