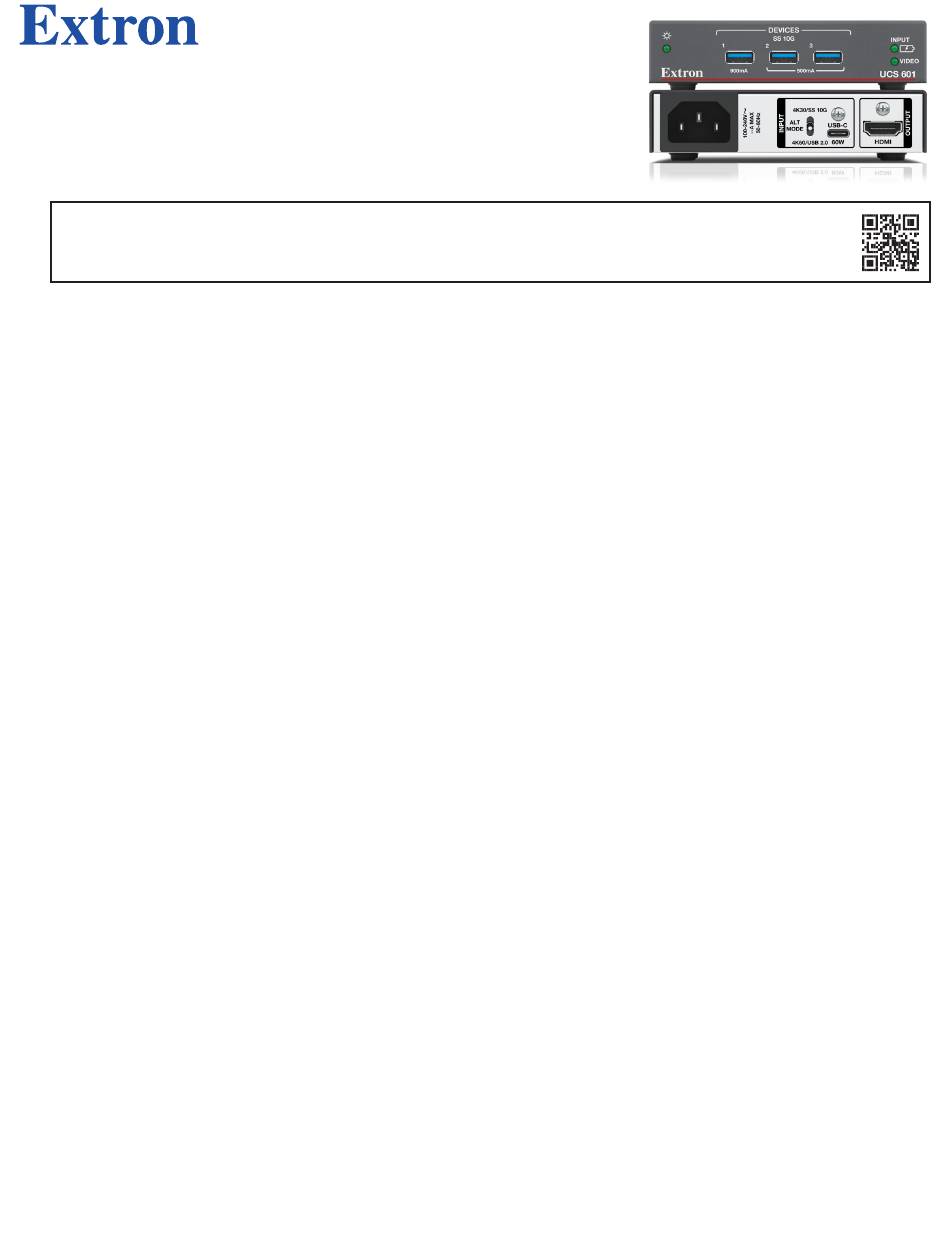

The UCS 601 is a pro AV dock that connects a USB‑C equipped laptop to an HDMI display and USB devices for use in Unified
Communications spaces. This dock supports HDMI 2.0, DisplayPort 1.2, USB 3.2 (SuperSpeed 10 Gbps) and HDCP 2.3
specifications, with resolutions up to 4K @ 60 Hz, and a built‑in USB hub for USB peripherals such as cameras, touch displays,
and microphones.
The rack mountable UCS 601 has a 1 inch high, quarter rack wide, 6 inch deep metal enclosure, allowing the UCS 601 to take
advantage of a variety of mounting options (see
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause interference. This interference must be corrected at the expense of the user.

Features

• Provides interface between USB‑C
peripherals.
• Power Delivery — Provides up to 60 watts of charging power to the USB‑C source.
•
Supports computer and video resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps.
•
HDCP compliant — HDCP 2.3 and HDCP 1.4 pass through.
• Extron Everlast™ Power Supply — Comes equipped with an energy efficient 100‑240 VAC, 50 to 60 Hz, internal universal
power supply.
•
Passes EDID information from HDMI display to the source.
• LED indicators for power, power delivery, and signal presence — Provides visual indication of system status for real‑time
feedback and monitoring of key performance parameters.
• 1/4 rack wide, 1 inch high, and 6 inch deep rack‑mountable enclosure.
• Includes ZipClip 200
• Includes LockIt
®
