J4 - J13: Trace port configuration

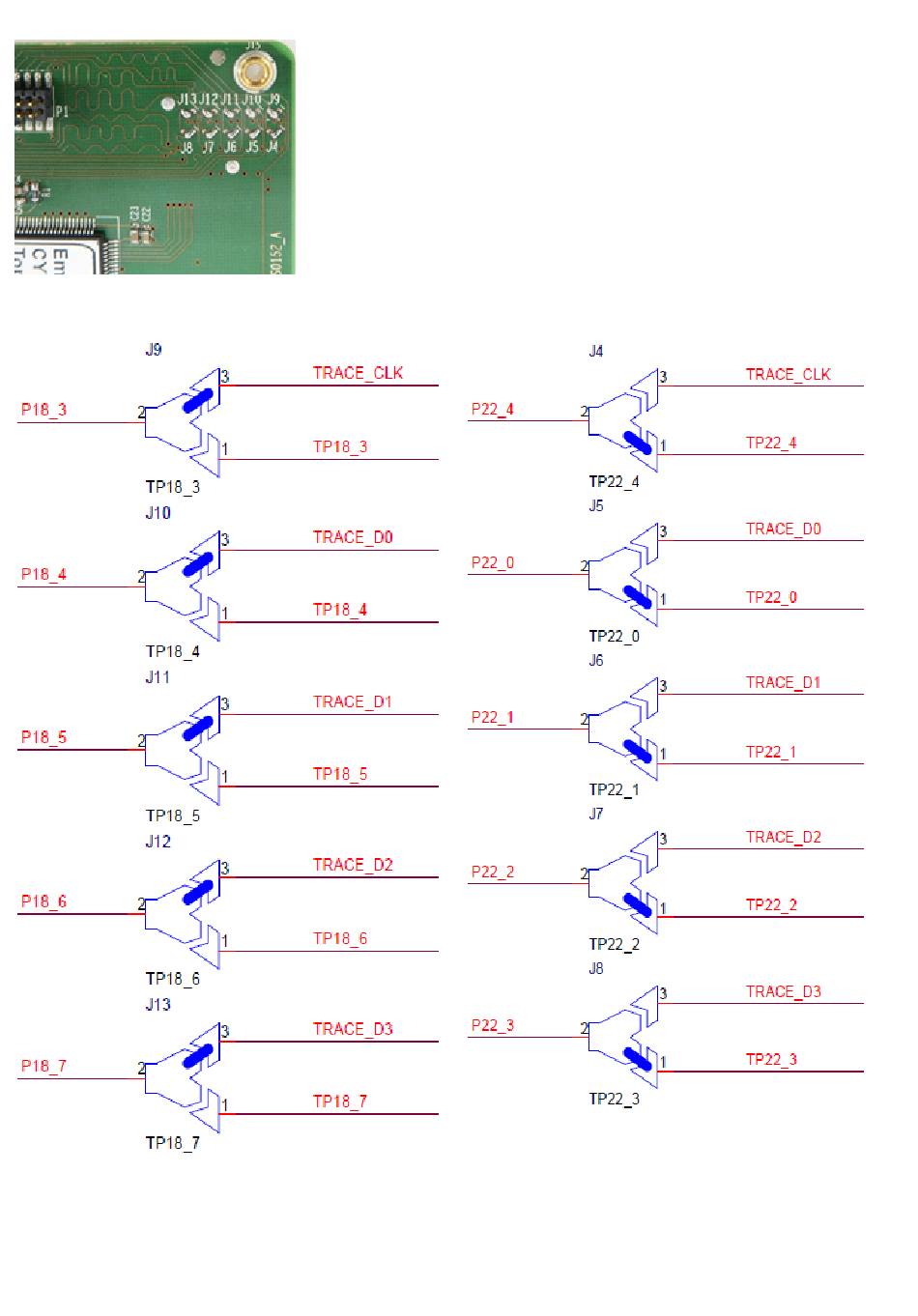

Soldered jumpers J4-J13 on EA on the image below:
Default position on P18
Soldered jumpers are by default placed to connect ARM
CoreSight 20 connector trace signals to port P18 (J9 – J13). If
P18 on user target board is used for any other purpose than
trace, Emulation Adapter allows changing the trace source to
port P22 (J4 – J8) with relocation of the jumpers.
Optional position on P22
