Attach the clutch/idler
assembly
to the tractor frame
by sliding the notched arms at the rear of the
assembly onto the two shoulder
bolts
assembled
to the inside of the tractor frame. Lift the front of
the assembly,
fitting the sides into the R.H. and
L.H. hanger brackets.
Attach the assembly to the
brackets using two pivot lock pins and 1/8" hairpin
cotters. See figure 17.
Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/
idler assembly.
The belt must be placed to the
inside of the engine pulley keeper, the idler pulley
and the keeper bolt located beside the large pulley.
See figure 18.
IMPORTANT:
Do Not assemble
the "V" belt
around the outside of the engine pulley keeper or
the keeper bolt.

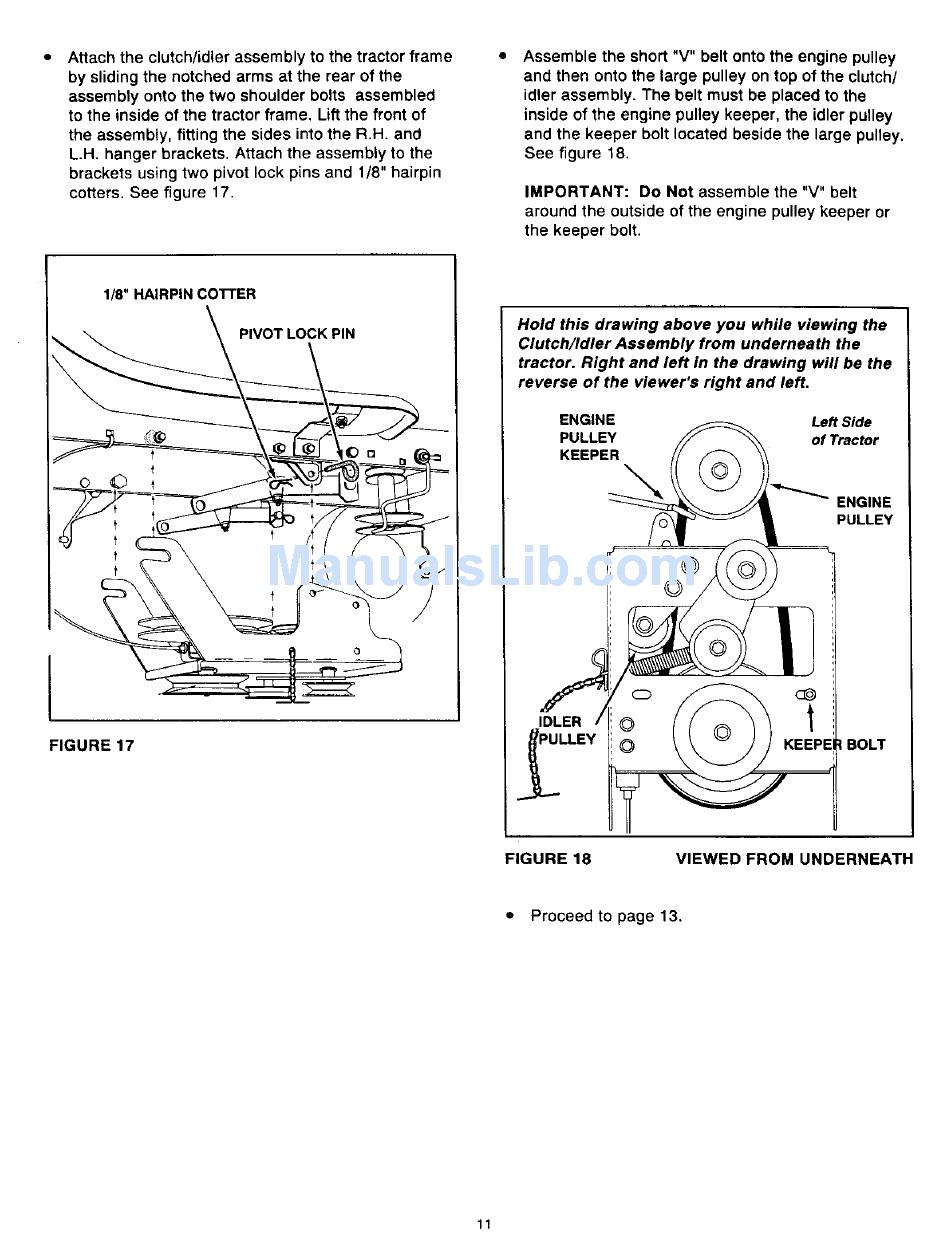

1/8" HAIRPIN COTI'ER
PIVOT LOCK PIN
b
FIGURE 17
Hold this drawing above you while viewing the
Clutch/Idler
Assembly
from underneath
the
tractor. Right and left in the drawing will be the
reverse of the viewer's right and left,
ENGINE
PULLEY
KEEPER _
f
IDLER
Left Side
of Tractor
ENGINE
_j
4_ PULLEY
BOLT
FIGURE 18
VIEWED FROM UNDERNEATH
Proceed to page 13.
