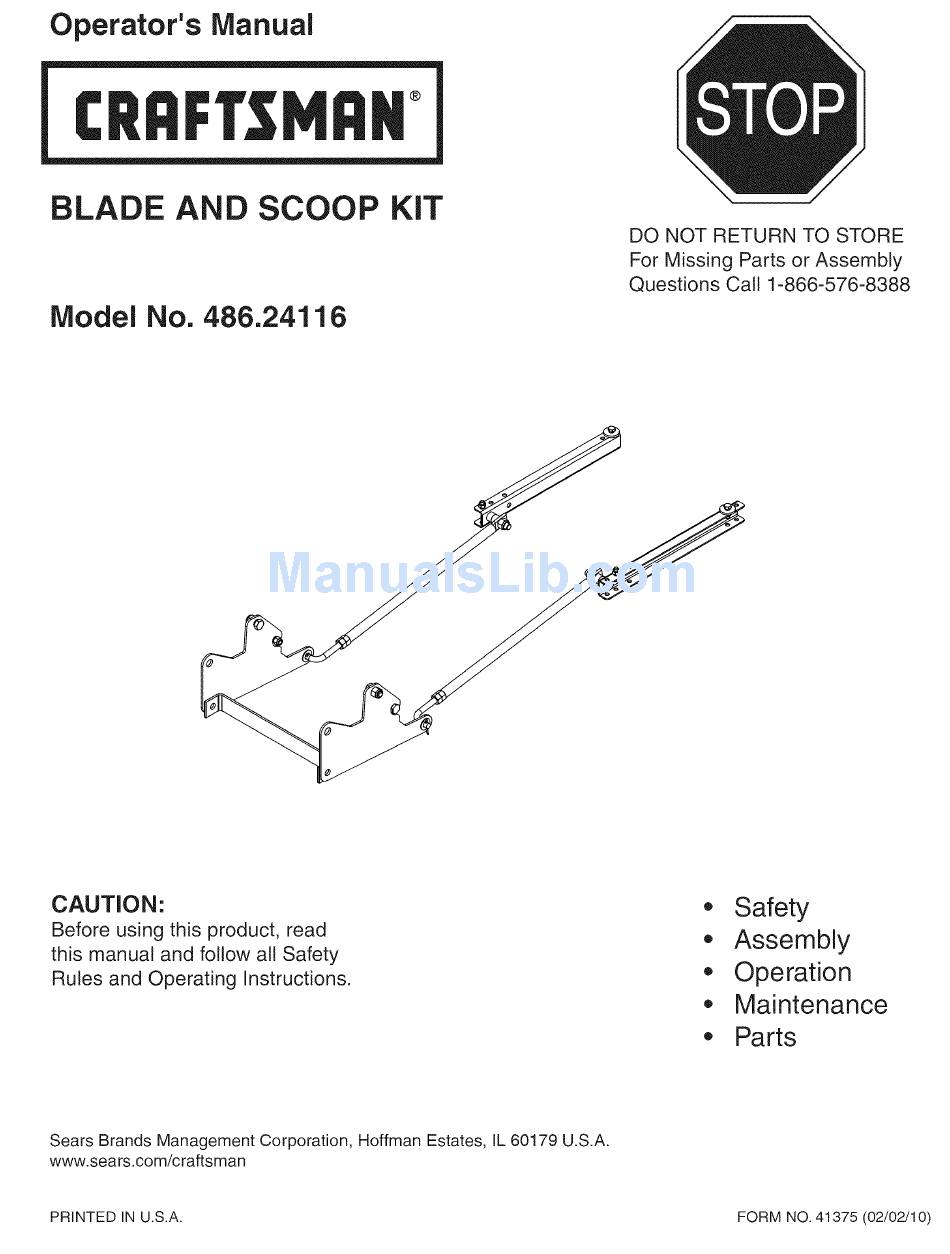

Operator's IVlanuai
®
BLADE AND SCOOP KiT
Model No. 486.24116
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions
Call 1-866-576-8388
CAUTION:
Before using this product, read
this manual and follow all Safety
Rules and Operating
Instructions.
,, Safety
,, Assembly
,, Operation
,, Maintenance
,, Parts
Sears Brands Management Corporation,
Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A.
FORM NO. 41375 (02/02/10)

Advertisement

loading

Related Manuals for Craftsman 486.24116

Summary of Contents for Craftsman 486.24116

  • Page 1 Before using this product, read ,, Assembly this manual and follow all Safety ,, Operation Rules and Operating Instructions. ,, Maintenance ,, Parts Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. www.sears.com/craftsman PRINTED IN U.S.A. FORM NO. 41375 (02/02/10)

  • Page 2: Parts Ordering / Service

    Craftsman product fails due to a defect in material or workmanship within one year from the date or purchase, return it to any Sears store or other Craftsman outlet in the United States for free replacement. This warranty applies for only 90 days from the date of purchase if this product is ever used for commercial or rental purposes.
  • Page 3 PART NO. DESCRiPTiON PART NO. DESCRiPTiON 27008 Mount Bracket 41347 Long Support Tube 25722 Frame Brace 41346 Support Link 27009 Channel Bracket PART NO. DESCRiPTiON PART NO. DESCRiPTiON HA180183 Hex Bolt, 1/2 x 2-1/4" HA21362 Nylock Nut, 3/8" 710-0865 Hex Bolt, 1/2-13 x 1" 712-0206 Hex Nut, 1/2"...
  • Page 4 TOOLS REQUIRED FOR ASSEMBLY STEP 3: (SEE FIGURE 2) 1/2" Wrenches Attach a channel bracket to the right side of the 9/16" Wrench tractor frame behind the front wheels using two 5/16 x 3/4" Wrenches 1" hex bolts, 5/16" nylock nuts, and one large washer. Pliers LARGE WASHER (K)

  • Page 5: Step 5: (See Figure

    STEP 5: (SEE FIGURE STEP 7: (SEE FIGURE 6) Attach a support tube to the inside of each channel Assemble a shoulder bolt and a 3/8" nylock nut to the hole shown on each side of the tractor frame. bracket using a 1/2" x 2-1/4" hex bolt, two spacers and a 1/2"...
  • Page 6 STEP 9: STEP 11: (SEE FIGURE 8) (SEE FIGURE 10) Attach the frame brace between the mount brackets Insert a support link into a support tube. Assemble a small washer onto the other end of the support using the hardware provided with your scoop or link and then insert the link into a mount bracket.
  • Page 7 REPAIR PARTS FOR MODEL 486.24116 (_)m 16 16_(_ PART NO. DESCRiPTiON PART NO. DESCRiPTiON 27008 Mount Bracket 43010 Cotter Pin, 1/8 x 1-1/4" 712-0206 27009 Channel Bracket Hex Nut, 1/2" 48106 Shoulder Bolt, 3/8-16 x .9" 41346 Support Link HA180183 Hex Bolt, 1/2 x 2-1/4"...
  • Page 8 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
