Static Routing - TP-Link TL-WR841N User Manual

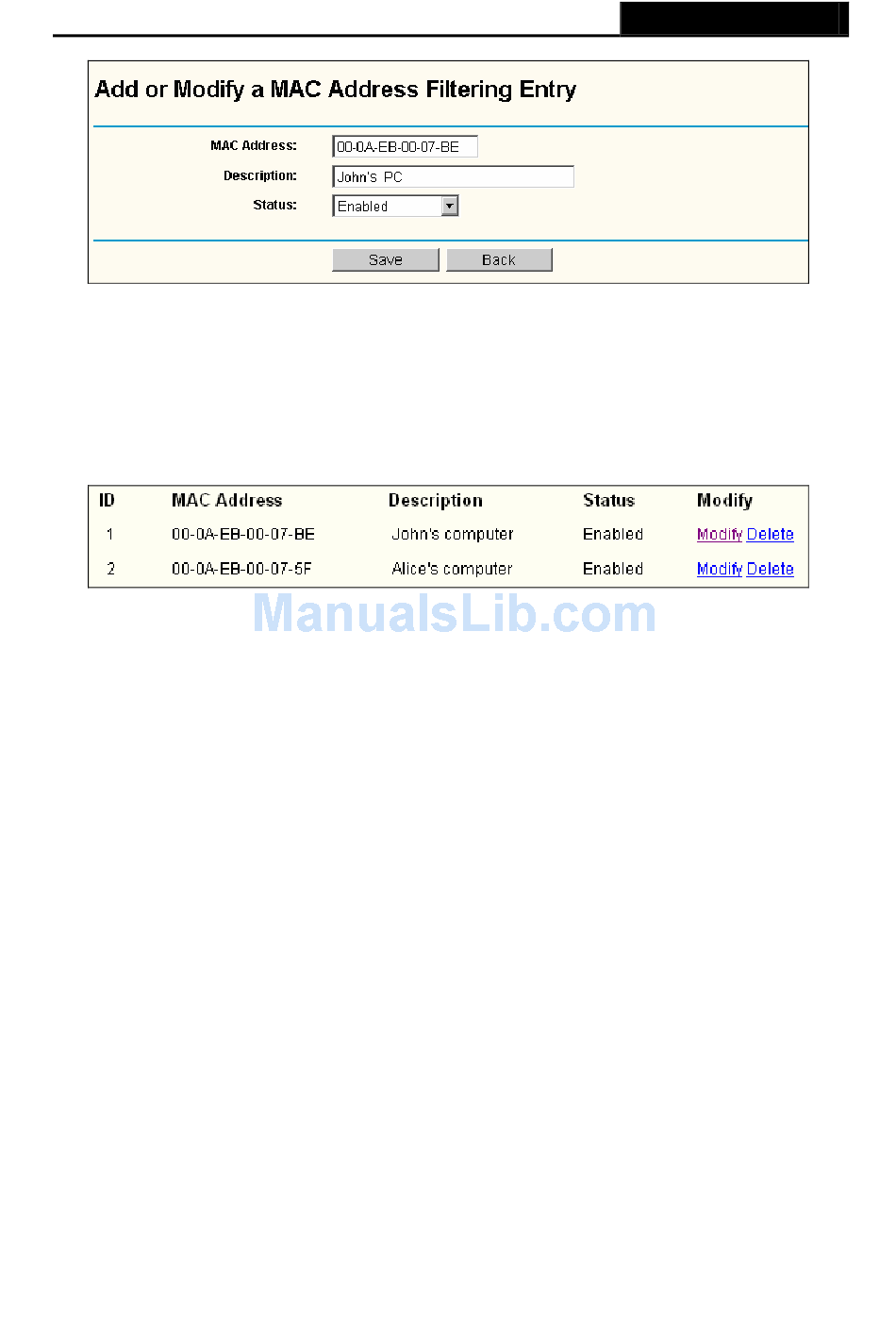

3. Enter the appropriate MAC address and descriptions, and then choose the enabled status.
4. Finally, click Save to make the rule take effect.
To add additional entries, repeat steps 1-4.
After you finish the configurations, you will see the rules in the table below:
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next button to
view the information in the next screen.

4.10 Static Routing

Choose menu "static routing", you can configure the static route in the next screen (shown in
Figure 4-38). A static route is a pre-determined path that network information must travel to reach
a specific host or network.
TL-WR841N/TL-WR841ND
Figure 4-37
50
Wireless N Router
