TL-WR841N/TL-WR841ND
Wireless N Router

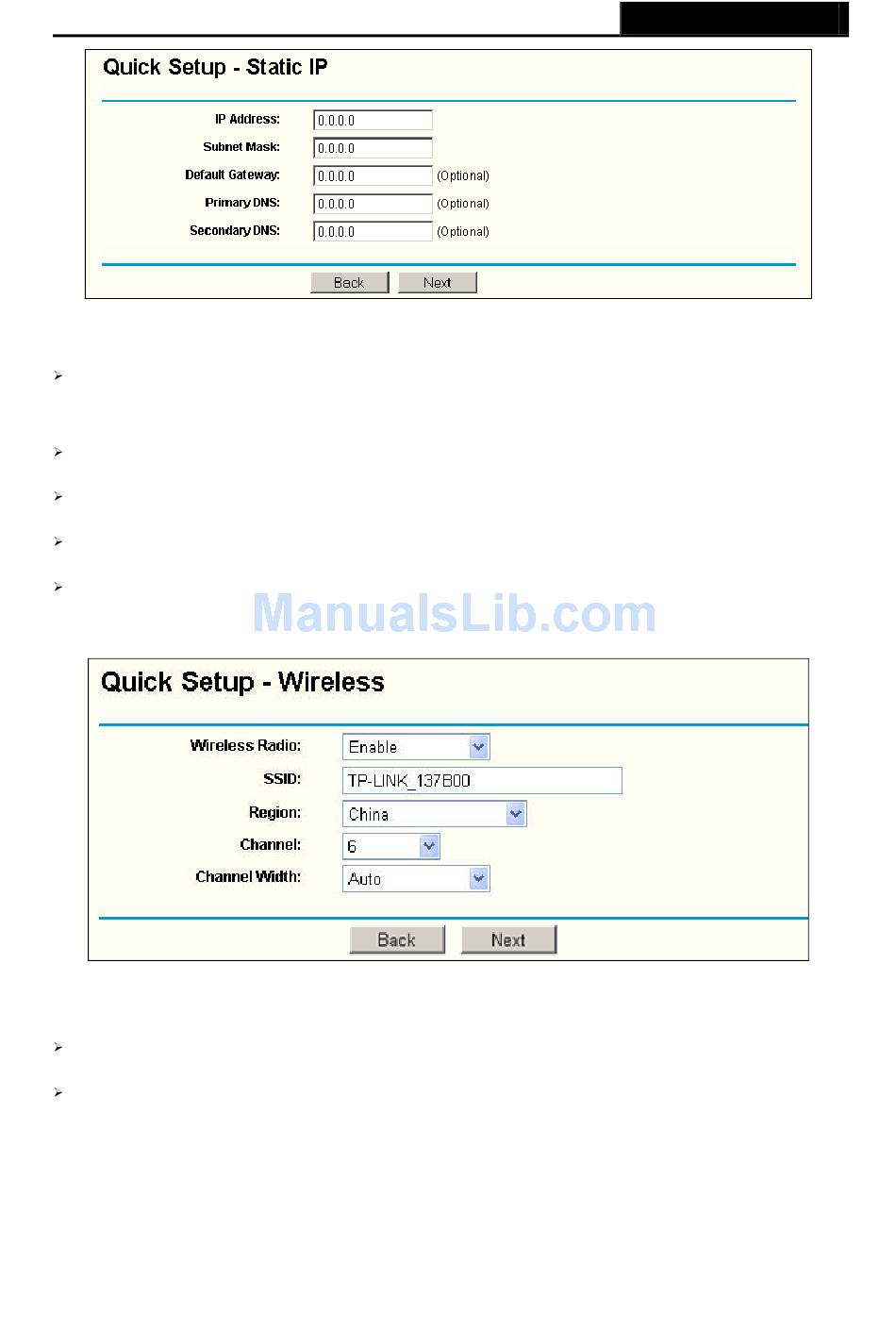

Figure 3-8 Quick Setup - Static IP
IP Address - This is the WAN IP address as seen by external users on the Internet (including
your ISP). Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually 255.255.255.0
Default Gateway - Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.
Secondary DNS - If your ISP provides another DNS server, enter it into this field.
4. Click Next to continue, the Wireless settings page will appear, shown in Figure 3-9.
Figure 3-9 Quick Setup – Wireless
Wireless Radio - Enable or disable the wireless radio choosing from the pull-down list.
SSID - Enter a value of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. Considering your
wireless network security, the default SSID is set to be TP-LINK_xxxxxx (xxxxxx indicates
the last unique six numbers of each Router's MAC address). This value is case-sensitive.
For example, TP-LINK is NOT the same as tp-link.
12
