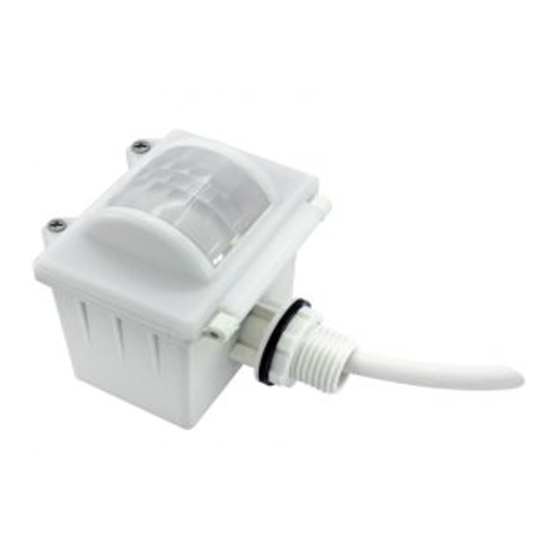

IP65 High Bay Dual Sense Sensor
HIM31
HF and PIR, 1-10V Dimming with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Subject to change without notice.
HIM31
220-240VAC 50/60Hz
<1W
800VA
1000W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED
LED indicator
Daylight sensor
PIR
Sensor module
Installation rack
TM
Sensor Data
Model No.
Sensor principle
High Frequency (microwave), PIR
Operation frequency
Transmission power
Sensor mode
4 modes: PIR, HF, PIR+HF, PIR/HF
Detection range
Detection angle
Environment
Operation temperature
IP rating
RED
Infrared receiver
Rotary switch for programing
Cable entry
Edition: 10 Aug. 2023
HIM31
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
Max. ( O x H) 18m x 15m
O
360
O
O
Ta: -20
C ~ +50
C
IP65
IP65
4.1
66.6
81.5
Ver. A0
Page 1/7
Advertisement
Related Manuals for Hytronik HIM31
Summary of Contents for Hytronik HIM31
- Page 1 IP65 High Bay Dual Sense Sensor HIM31 HF and PIR, 1-10V Dimming with Remote Control Technical Data Sensor Data Input Characteristics Model No. Model No. HIM31 HIM31 Sensor principle High Frequency (microwave), PIR Mains voltage 220-240VAC 50/60Hz Stand-by power Operation frequency <1W...
- Page 2 59.6 0.825” B. Screw to the Luminaire by conduit Infrared receiver LED indicator Rotary switch for programing Daylight sensor 66.6 89.9 Sensor module Cable entry C. Attach to the shade by clamp Rotary switch for programing LED indicator Infrared receiver 28.5 Daylight sensor Angle adjustment...
-
Page 3: Functions And Features
Tri-level Control (Corridor Function) Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insuf cient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period;... - Page 4 Note: settings can also be changed by remote control +∞ 100% 30min 50Lux HRC-11. The last action controls. 100% 30min Disable +∞ 100% 2Lux Wiring Diagram Brown Blue Grey LED driver Black 1-10V+ 1-10V HIM31 Subject to change without notice. Edition: 10 Aug. 2023 Ver. A0 Page 4/7...
- Page 5 Settings (Remote Control HRC-11) Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”/ “RESET” to exit this mode. Press button “RESET”, perform DIP Switch/Rotary Switch settings. *The default settings are: Detection range 100%; Hold-time 5min; Stand-by time +∞; Stand-by dimming level 30%;...
- Page 6 Daylight threshold 2 Lux 100 Lux Press buttons in zone “Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux Shift Send 10 Lux 300 Lux / 100Lux / 300Lux/500Lux / Disable. SEMI-AUTO RESET 50 Lux 500 Lux AUTO Note: To set daylight sensor at 100Lux / 300Lux/500Lux , press “Shift”...
-
Page 7: Detection Pattern
Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
