Hytronik HIM38/RF Installation And Instruction Manual

Installation and Instruction Manual
TM

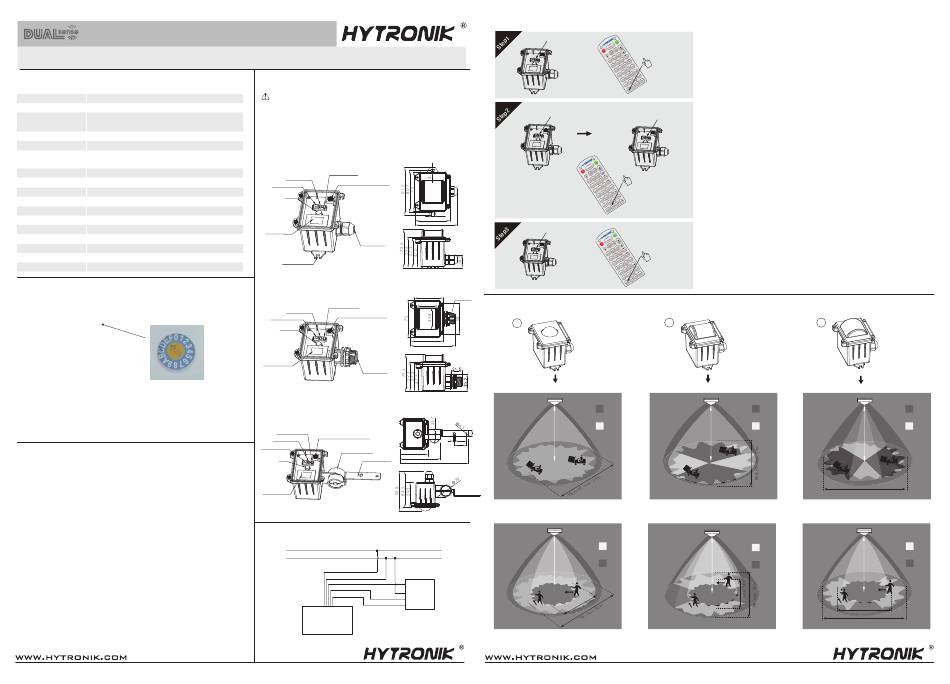

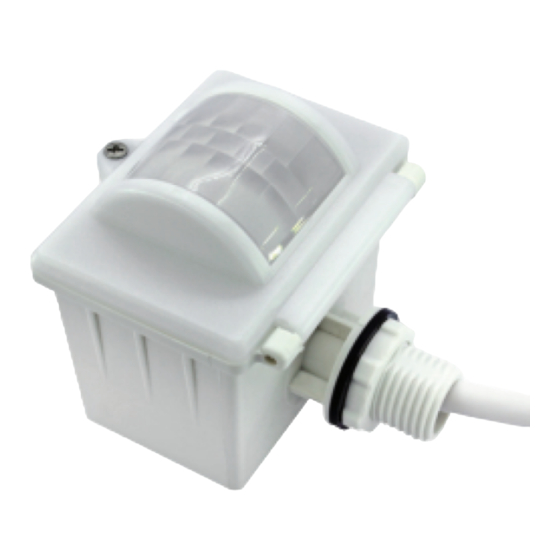

RF WIRELESS DUAL SENSE SENSOR FOR HIGH BAY HIM38/RF (1-10V OUTPUT)
1. Technical Specifications
Product type RF wireless dual sense 1-10V motion sensor (tri-level control)
Operating voltage 220-240VAC 50/60Hz
Rated load Capacitive:800VA
Resistive:1000W
Power consumption < 1.5W
o
Detection angle 360
Detection area (Max.)* Installation Height : 15m
Detection Range (Ø) : 24m
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
RF transmission distance 30 meters in the open area
RF frequency 868MHz (FSK mode)
Warming up time 30s
o o
Operating temperature -20 C ~ +50 C
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR
3. Rotary Switch for RF grouping
Rotary switch for RF grouping
(Please see the location in 2. Installation)
15 channels are available for fast grouping via rotary switch. By simply selecting the same channel on each
unit, the grouping is automatically completed.
Noted: channel "0" is not for fast grouping, and sensors can only be grouped by remote control.
4. Functions
4.1 Tri-level Control (Corridor Function)
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas it requires
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
4.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
4.3 Load Indication
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
Subject to change without notice.
2. Installation
Warnings:
1. Installation must be carried out by a qualified engineer in accordance with
local regulations.
2. Disconnect power supply before installing.
3. Install to a solid surface - vibrations may cause mis-triggering.
4. Ensure environmental conditions are suitable for electronic equipment
A. Ceiling mount
Daylight sensor
LED indicator
Rotary switch for RF grouping
Infrared receiver
PIR
4.1
66.6
81.5
Sensor module
Cable entry
Installation rack
B. Screw to the Luminaire by conduit
59.6
43
Daylight sensor
LED indicator
Rotary switch for RF grouping
Infrared receiver
PIR
66.6
89.9
Sensor module
Cable entry
C. Attach to the shade by clamp
Daylight sensor
Rotary switch for RF grouping
LED indicator
Infrared receiver
Angle adjustment
66.6
96.8
Luminaire clamp
PIR
163.2
Sensor module
5. Wiring Diagram
L
N
Brown
Blue
Grey
L LED
Red
Driver
N
Black
+
1-10V
-
1-10V
HIM38/RF
HIM38/RF-20230818-A1
6. RF grouping by remote controller
LED indicator flashes slowly
The receiver unit
LED indicator flashes quickly then slowly
LED indicator flash 3 times
when RF signal is received successfully
The commander unit The receiver unit
Short press
"Transmit" button
LED indicator flashes rapidly
The receiver unit
0.825" 7. Three Options for PIR Lens and Detection Patterns
* For single person walking across, the detection range is reduced by 1/3.
1
Detection pattern for forklift
PIR
HF
15 15m(forklift)
4.5
28.5
PIR detection: Ø = 24m (max.) HF detection: Ø = 24m (max.)
Detection pattern for human
PIR
HF
12m(human)
HF detection: Ø = 14m (max.) PIR detection: Ø = 20m (max.)
Subject to change without notice.
Short press "Learn/Erase" button on RC to the receiver to activate pairing mode, and the LED
indicator on receiver unit will flash slowly.
Short press "Learn
Note: up to 30 units can be paired.
/Erase" button
Short press "Transmit" button on RC to the commander, the LED indicator on commander unit
will flash for 3 times to send the transmission signal.
Upon receiving the transmission signal, the indicator on receiver unit will flash quickly then
slowly to indicate the success of pairing. One more short press on "Learn/Erase" button to the
receiver unit to complete the pairing process, the receiver unit will quit the pairing mode.
The sensor can serve as both commander and receiver, simply repeat above steps the other
way around.
Short press "Learn
Erase:
/Erase" button
Long press "Learn/Erase" button for 3s to the sensor unit, the indicator rapidly flashes 12
times, all commands it has received before will be erased.
(End user can choose the suitable lens in real application for various requirements)
2 3
PIR
HF
15m(forklift)
PIR detection: Ø = 24m (max.) HF detection: Ø = 24m (max.) PIR detection: Ø = 24m (max.) HF detection: Ø = 24m (max.)
PIR
HF
12m(human)
HF detection: Ø = 14m (max.) PIR detection: Ø = 20m (max.) HF detection: Ø = 14m (max.) PIR detection: Ø = 20m (max.)
PIR
HF
15m(forklift)
PIR & HF: max. 24m
PIR
HF
12m(human)
HF : max. 14m
PIR: max. 20m
HIM38/RF-20230818-A1
