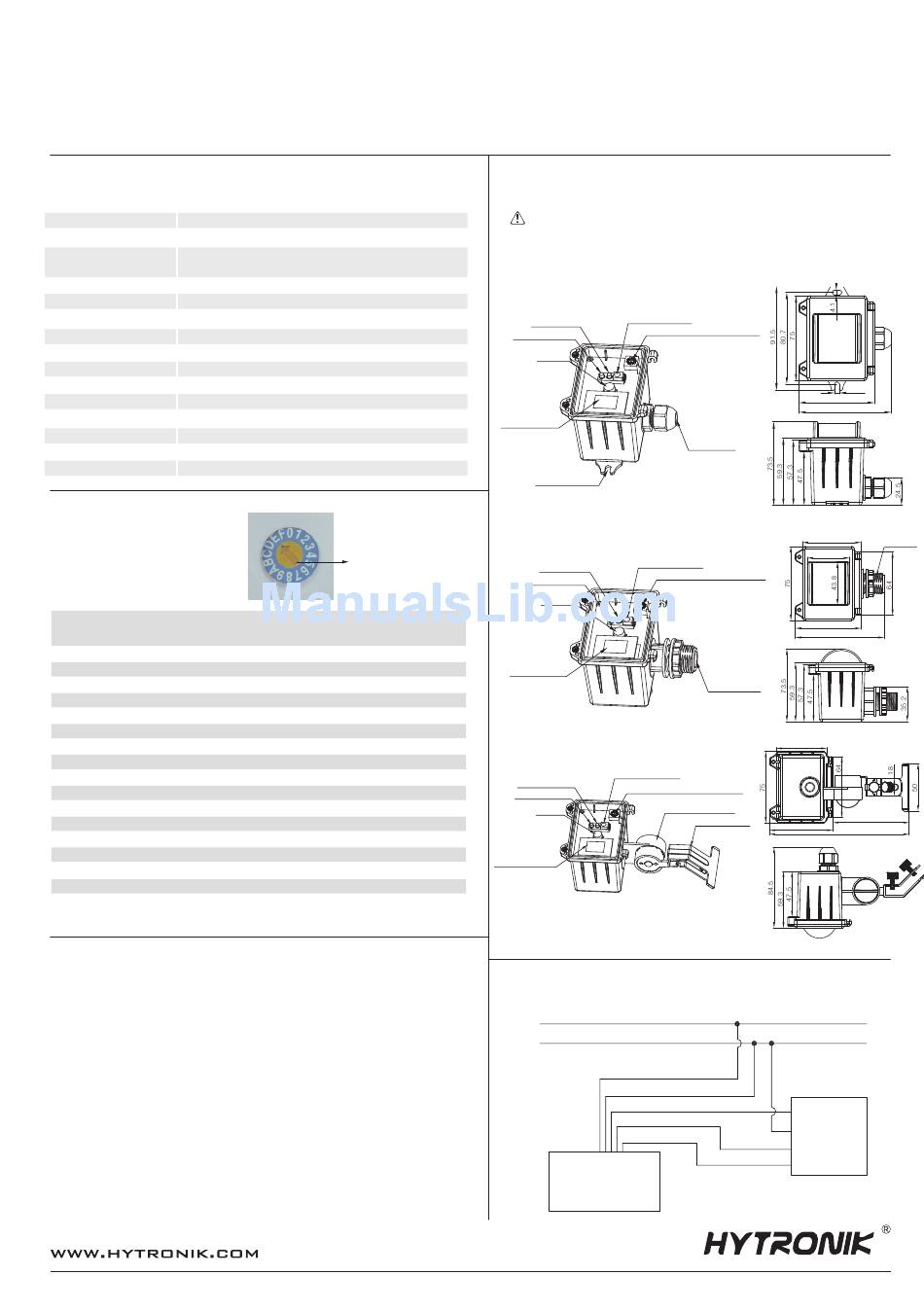

Hytronik HIM31 Installation And Instruction Manual

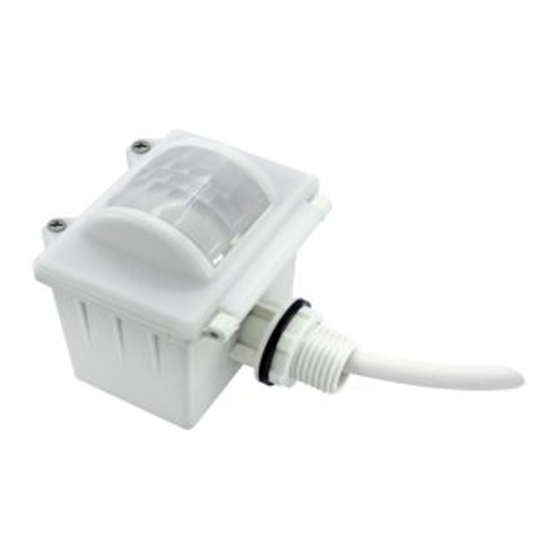

HIGH BAY DUAL SENSE SENSOR HIM31
1. Technical Specifications
Product type Tri-level control dual sense sensor
Operating voltage 220-240VAC 50/60Hz
800W(Capacitive)
Rated load
1000W(Resistive)
Power consumption < 1W
o
Detection angle 360
Detection area (DxH) 18 x 15m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / + ∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
Warmming up time 30s
o
Operating temperature -30 C ~ +50
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total of
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 5min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 10min
B 75% 10min
C 50% 10min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 Tri-level Control (Corridor Function)

Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas it requires
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

4.2 Lux Off Function

The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is unnecessary (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.

4.3 Load Indication

The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10% Disable
5min 10% 2Lux
10min 10% 10Lux
30min 10% 30Lux
0s Disable 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
10min 10% 2Lux
30min 10% 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
+∞ 10% 30Lux
+∞ 10% 10Lux
+∞ 10% 50Lux
+∞ 30% Disable
10s 10% 2Lux

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Infrared receiver
LED indicator
Rotary switch for programing
Daylight sensor
PIR
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Infrared receiver
LED indicator
Rotary switch for programing
Daylight sensor
PIR
Sensor module
C. Attach to the shade by clamp
Infrared receiver
LED indicator
Rotary switch for programing
Daylight sensor
Angle adjustment
PIR
Sensor module

5. Wiring Diagram

L
N
Brown
Blue
Grey
Red
Black
HIM31
4.1
66.6
81.5
Cable entry
59.6
43
66.6
89.9
Cable entry
53
Luminaire clamp
66.6
146.6
L
LED driver
N
1-10V+
1-10V-
HIM31-20180525-A2
0.825"
80
