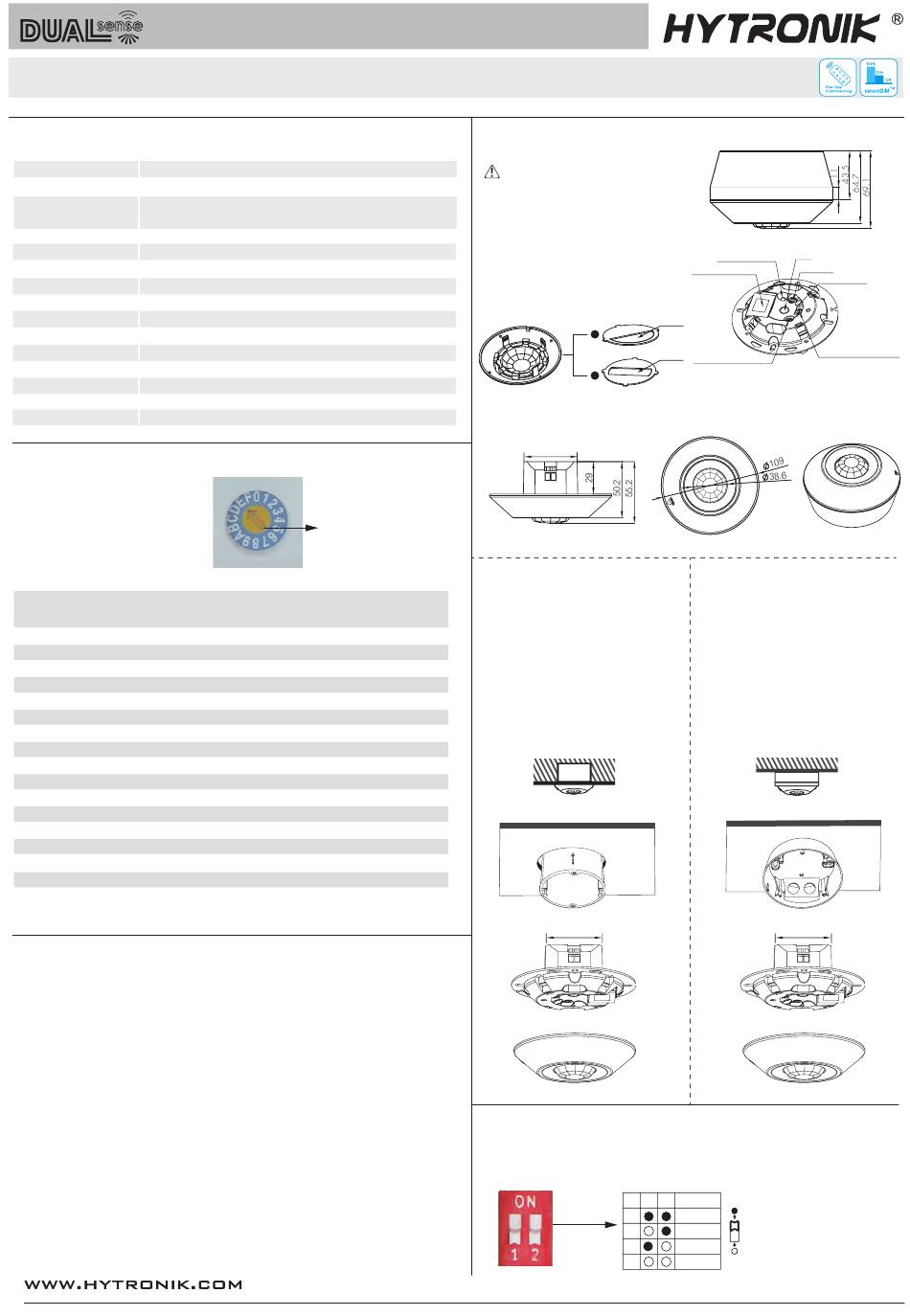

Hytronik DUAL sense HIM17 Installation And Instruction Manual

TM
SURFACE MOUNT DUAL SENSE TRAILING EDGE SENSOR HIM17
1. Technical Specifications
Product type Dual sense trailing edge motion sensor ( HF and PIR, Tri-level control )
Operating voltage 120~277VAC 50/60Hz
Rated load Resistive: 120W @ 120VAC; 200W @ 220~277VAC
Trailing edge dimming driver: 100W @ 120V; 150W @ 220~277W
Power consumption < 1W
o
Detection angle 360
Detection area (DxH) 12 x 6m (Maximum)
Mounting height 6m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
Warmming up time 30s
o
Operating temperature -20 C ~ +55
Sensor mode PIR, HF, PIR+HF, PIR / HF
3. Rotary Switch Settings
A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 5min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 10min
B 75% 10min
C 50% 10min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.
5. Functions
5.1 Tri-level Control (Corridor Function)
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas require
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by time; Selectable daylight threshold and detection area.
5.2 Manual Override (Push Function)
With the help of push-switch, this sensor maybe over-ridden by the end-users to switch on/off the
lights manually, or adjust the light brightness during motion hold-time. This makes the product
more user-friendly and offers more options to fit for extra-ordinary demands.
* Short push (<1s): on/off function;
ON → OFF: the light turns off immediately and cannot be lighten for a certain time (equals to
hold time preset) even movement is detected. After this period, the sensor goes
back to auto sensor mode.
OFF → ON: the light turns on and goes to auto sensor mode.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by
time dimming level
10s 10%
5min 10%
10min 10%
30min 10%
0s Disable
+∞ 10%
+∞ 30%
10min 10%
30min 10%
+∞ 10%
+∞ 30%
+∞ 10%
+∞ 10%
+∞ 10%
+∞ 30%
10s 10%
2. Installation
Warnings:
1. Installation must be carried out by a
qualified engineer in accordance with
local regulations.
2. Disconnect supply before installing.
3. Install to a solid surface - vibrations may
cause mis-triggering.
4. Ensure environmental conditions are
suitable for electronic equipment
Note: the blinds are optional, they may be inserted behind the lens for focussing the detection range.
56
Direct junction "J" box mounting
a. Separate control board (A) from facia (B)
Daylight
threshold
& junction box (C).
b. Make electrical connections to control board
Disable
(A). See detailed wiring diagram on next page.
2Lux
c. Secure control board (A) to junction box.
10Lux
d. Set-up sensor modes as per sections 3 & 4
30Lux
of this manual.
10Lux
e. Clip facial plate (B) to control board (A).
30Lux
Disable
2Lux
10Lux
30Lux
Disable
30Lux
10Lux
50Lux
Disable
2Lux
4. Sensor Mode Selection
Sensor mode can be easily selected by choosing the correct combination of the DIP switches
(see table below):
C - Surface box
B - Facia Cover
Infrared receiver
HF Sensor module
Blind
A
Blind
Rotary switch preset
B
Surface mount assembly
a. Separate control board (A) from facia (B) &
Surface box (C).
b. Securely mount surface box (C) to a flat and
solid surface.
c. Make electrical connections to control board
(A). See detailed wiring diagram on next page.
d. Set-up sensor modes as per sections 3 & 4 of
this manual.
e. Secure control board (A) to surface box (C).
f. Clip facial plate (B) to control board (A).
C
56
A
B
1 2
I HF
PIR
II
III HF+PIR
IV HF/PIR
PIR
Photocell
LED indicator
Sensor mode selection
A - Control Board
C
56
A
B
HF+PIR: Light is on when both HF
and PIR sensors are activated.
HF/PIR: Light is on when HF or PIR
sensors are activated.
HIM17-20190104-A1
