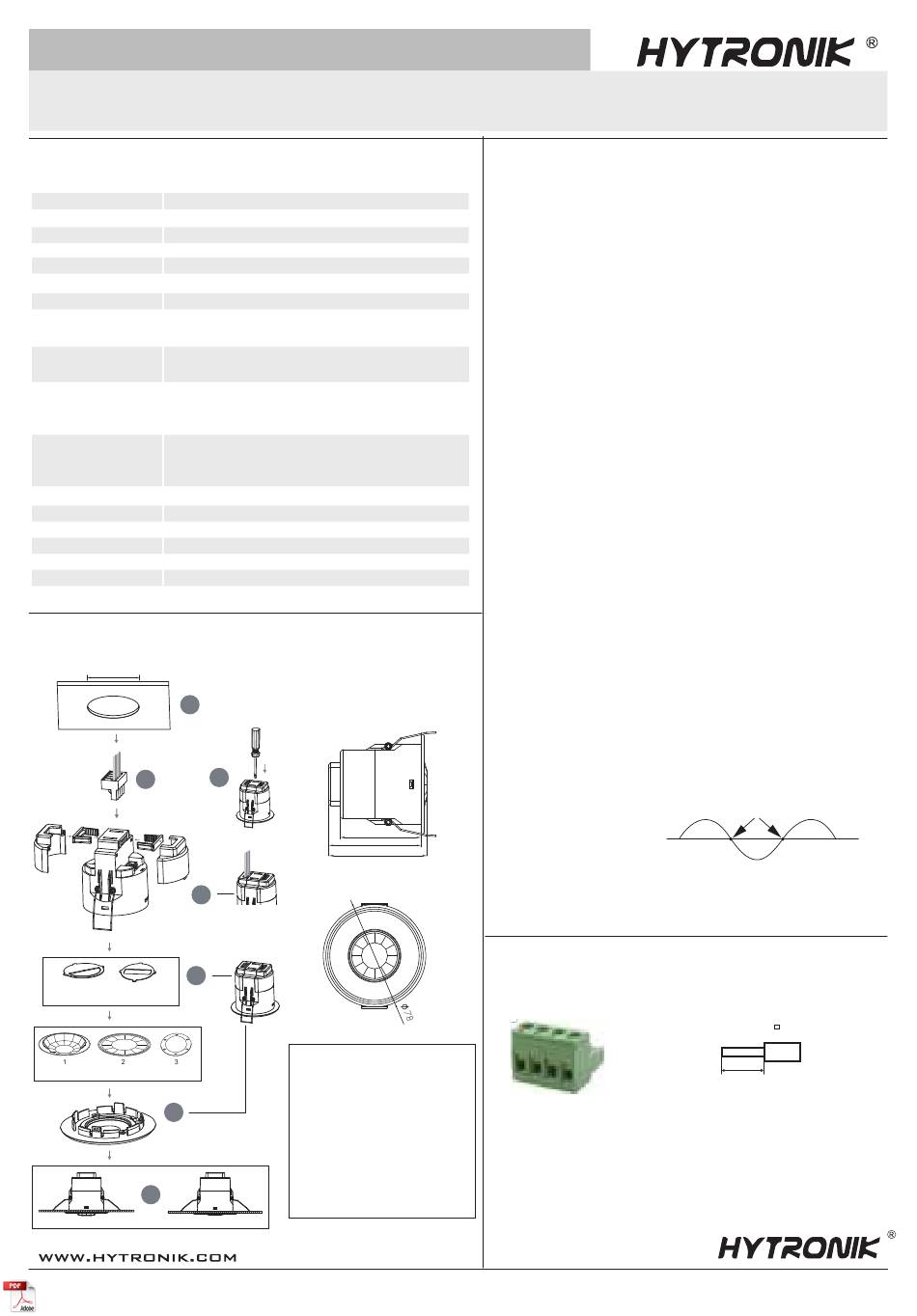

Hytronik HIR28 Installation And Instruction Manual

Installation and Instruction Manual
FLUSH MOUNT PIR MOTION SENSOR
On/off relay control
1. Technical Specifications
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Sensor principle
Detection range (Max.)*
Detection range (Max.)*
HIR28/R
Detection range (Max.)*
HIR28/H
Detection range (Max.)*
HIR28/RH
Detection angle
Operation temperature
IP rating
EMC standard (EMC)
Safety standard (LVD)
Certification

2. Installation

65mm
1
3
4
5
A B
* Install blind as required
* Install lens as required
6
7
1
220~240VAC 50/60Hz
<1W
400VA
800W
20s
PIR detection
Installation Height : 6m
Detection Range (Ø) :9m
Installation Height : 6m
Detection Range(Ø) :10m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：24m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：40m
360°
Ta: -20°C ~ +50°C
IP20
EN55015, EN61000
EN60669-1, EN60669-2-1
Semko, CB, CE , EMC, LVD, RCM
2
62
70.5
75.2
1. Ceiling (drill hole 65mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Fit detection blind (if required) and
desired lens.
6. Clip fascia to body.
7. Bend back springs and insert into ceiling.
2

3. Functions

3.1 On/ off Control
This sensor is a motion switch, which turns on the light upon detection of motion,
and turns off after a pre-selected hold-time when there is no movement. A daylight sensor is
also built in to prevent the light from switching on when there is sufficient natural light.
3.2 Lux Off Function
The built-in daylight sensor can measure ambient natural light and switch off the fixture
automatically whenever artificial light is not required (natural light lux level exceeds daylight
threshold).
3.3
Manual Override
With the help of push-switch, this sensor can be over-ridden by the end-user to manually switch
on/off the light, which makes the product more user-friendly and offers more options to fit some
extra-ordinary demands:
* Short Push (<1s): on/off function;
On → Off: the light turns off immediately and cannot be triggered ON by motion until the expiration
of pre-set hold-time. After this period, the sensor goes back to normal sensor mode.
Off → On: the light turns on and goes to sensor mode, no matter if ambient Lux level exceeds the
daylight threshold or not.
Note: if end-user do not want this manual override function, just leave the "push" terminal
unconnected to any wire.
3.4 Semi-auto Mode (Absence Detection)
It is easy to forget to switch off the light, in office, corridor, even at home. And in many other cases,
people do not want to have a sensor to switch on the light automatically, for example, when people
just quickly pass-by, there is no need to have the light on. The solution is to apply this "absence
detector": motion sensor is employed, but only activated on the manual press of the push-switch, the
light keeps being ON in the presence, and switches off in the long absence.
Note: end-user can choose either function 3.3 or function 3.4 for application.
Default function is manual override.
Zero-cross Relay Operation
3.5
Designed in the software, sensor
switches on/off the load right at the
zero-cross point, to ensure that the
in-rush current is minimised, enabling
the maximum lifetime of the relay.
Wire Preparation
Pluggable screw terminal. It is recommended to make
connections to the terminal before fitting to the sensor.
HIR28 HIR28/R
HIR28/H HIR28/RH
zero-cross point
Alternating current
0.75 - 2.5mm
8mm
(min 6mm, max 11mm)
HIR28-20190326-A1
