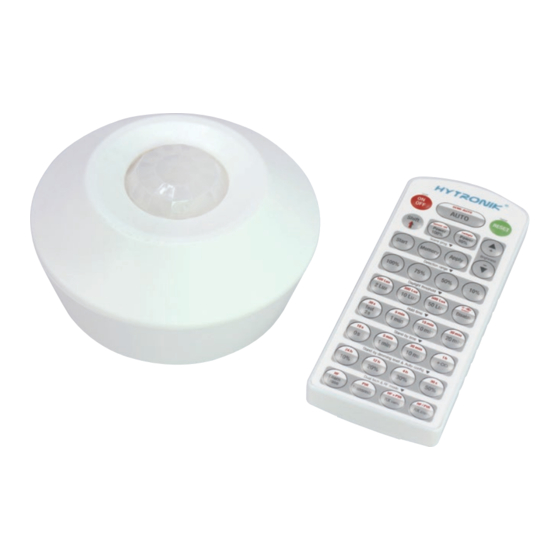

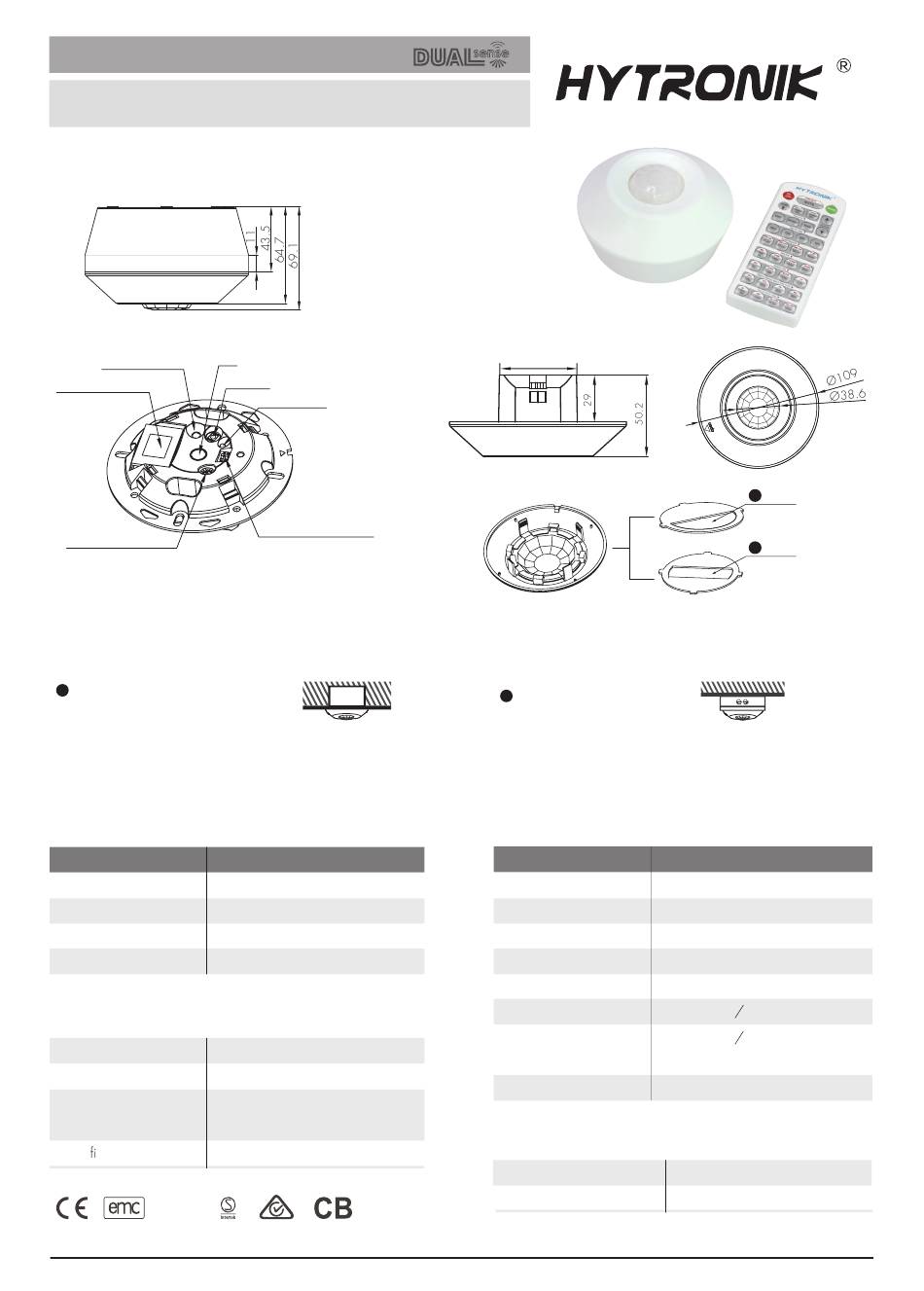

Stand-alone Dual Sense Motion Sensor
HIM14
HF and PIR, Daylight harvest Control for lndependent DALL
Mechanical Structure
C - Surface box
B - Facia Cover
PIR
Infrared receiver
HF Sensor module
A - Control Board
Installation:
For more details, please refer to user manual.
Direct junction "J" box mounting
1
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Switched power
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
RED
Subject to change without notice.
Photocell
LED indicator
Sensor mode selection
HIM14
120~277VAC 50/60Hz
<1W
Max. 20pcs devices, 40mA
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
IP20
TM
56
Note: the blinds are optional, they may be inserted
behind the lens for focussing the detection range.
Surface mount assembly
2
Sensor Data
Model No.
Sensor principle
High Frequency (microwave), PIR
Operation frequency
Transmission power
Sensor mode
4 modes: PIR, HF, PIR+HF, PIR/HF
HIM14
HIM54 (2 lens)
Max. (L x W x H ) 16m x 6m x 12m
Detection angle
Environment
Operation temperature
IP rating
Edition: 26 Feb. 2020
A
Blind
B
Blind
HIM14
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
Max. (O x H) 12m x 6m
Max. (O x H) 16m x 12m
360
O
Ta: -20
O
C ~ +55
O
C
IP20
Ver. A0
Page 1/6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik Dual Sense HIM14
Summary of Contents for Hytronik Dual Sense HIM14
- Page 1 Stand-alone Dual Sense Motion Sensor HIM14 HF and PIR, Daylight harvest Control for lndependent DALL Mechanical Structure C - Surface box B - Facia Cover Infrared receiver Photocell HF Sensor module LED indicator Blind Sensor mode selection Rotary switch preset Blind A - Control Board Note: the blinds are optional, they may be inserted...
- Page 2 Dual Sense Introduction It’s commonly known Microwave and Infrared are main detecting technologies in lighting controls. Both have the advantage and disadvantage for industrial applications. Advantage Advantage * sensitive to minor motion. * no penetration, con ned detection area. * sensitive to radial movement. * sensitive to tangential movement.
- Page 3 Note: The Light automatically dims down and eventually turns off if the natural light lux level exceeds the daylight threshold. However, if the stand-by period is preset at “+∞”, the xture never switches off but dim to minimum level, even the natural light is suf cient.
- Page 4 Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters. 3. Press button “Memory” to save all the settings programmed in the remote control. 4.
- Page 5 Rotary Switch Preset A rotary switch is built inside the sensor for scene Detection Daylight Stand-by Stand-by Channel Hold-time selection / fast programming. Total 16 channels range sensor time dim level are available: 100% Disable 100% 1min 50Lux 5min 100% 5min 50Lux 10min...
- Page 6 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
