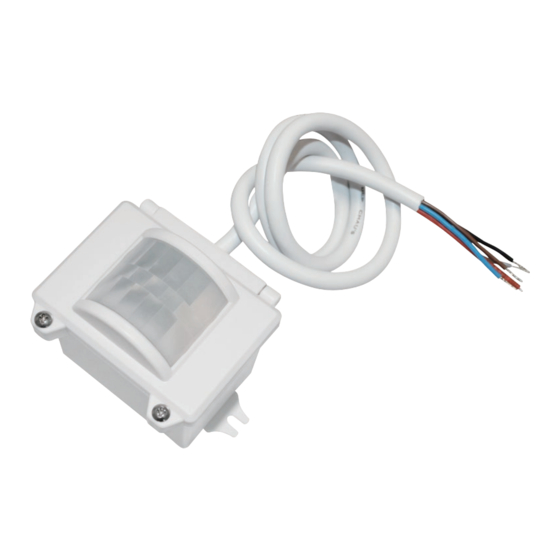

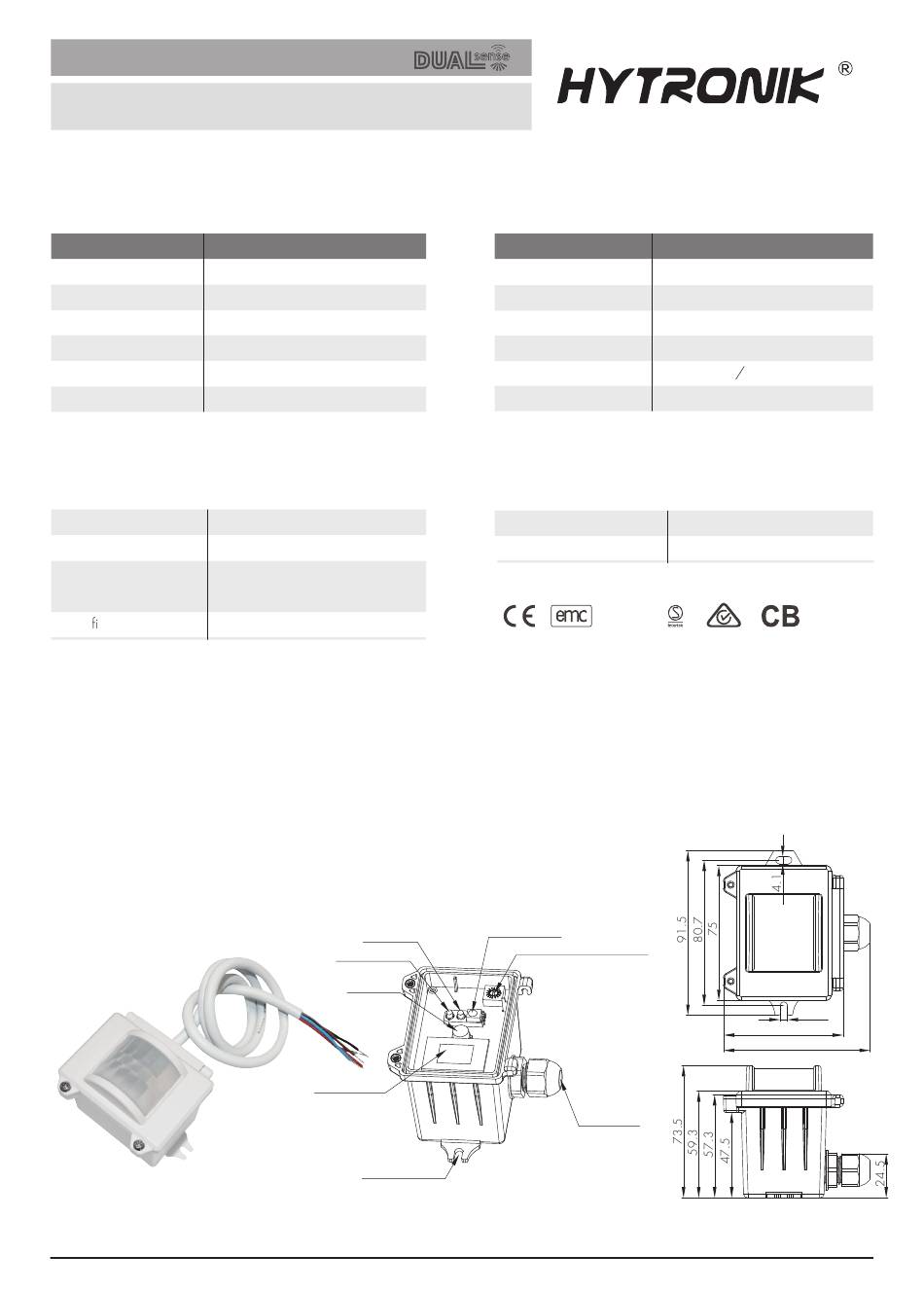

IP65 High Bay Dual Sense Sensor
HIM31
HF and PIR, 1-10V Dimming with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Subject to change without notice.
HIM31
220-240VAC 50/60Hz
<1W
800VA
1000W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED
LED indicator
Daylight sensor
PIR
Sensor module
Installation rack
TM
Sensor Data
Model No.
Sensor principle
High Frequency (microwave), PIR
Operation frequency
Transmission power
Sensor mode
4 modes: PIR, HF, PIR+HF, PIR/HF
Detection angle
Environment
Operation temperature
IP rating
RED
Infrared receiver
Rotary switch for programing
Cable entry
Edition: 26 Feb. 2020
HIM31
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
Max. ( O x H) 18m x 15m
O
360
O
O
Ta: -20
C ~ +50
C
IP65
IP65
4.1
66.6
81.5
Ver. A0
Page 1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik Dual Sense HIM31
Summary of Contents for Hytronik Dual Sense HIM31
- Page 1 IP65 High Bay Dual Sense Sensor HIM31 HF and PIR, 1-10V Dimming with Remote Control Technical Data Sensor Data Input Characteristics Model No. Model No. HIM31 HIM31 Sensor principle High Frequency (microwave), PIR Mains voltage 220-240VAC 50/60Hz Stand-by power Operation frequency <1W 5.8GHz +/- 75MHz (HF) Load ratings:...
- Page 2 59.6 0.825” B. Screw to the Luminaire by conduit Infrared receiver LED indicator Rotary switch for programing Daylight sensor 66.6 89.9 Sensor module Cable entry C. Attach to the shade by clamp Rotary switch for programing LED indicator Infrared receiver 28.5 Daylight sensor Angle adjustment...
- Page 3 Tri-level Control (Corridor Function) Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insuf cient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period;...
- Page 4 Rotary Switch Preset A rotary switch is built inside the sensor for scene Detection Daylight Stand-by Stand-by Channel Hold-time selection / fast programming. Total 16 channels range sensor time dim level are available: 100% Disable 5min 100% 1min 2Lux 100% 5min 10Lux 10min...
- Page 5 Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters. 3. Press button “Memory” to save all the settings programmed in the remote control. 4.
- Page 6 Wiring Diagram Brown Blue Grey LED driver Black 1-10V+ 1-10V HIM31 Detection Pattern End user can choose the suitable PIR lens in real application to ful ll various requirements. Three options are offered for selection: PIR detection: L x W x H:18 x 5 x 15m (max.) PIR detection: L x W x H:5 x 18 x 15m (max.) PIR detection: H x D:15 x 18m (max.) HF detection: H x D:15 x 14m (max.)
- Page 7 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
