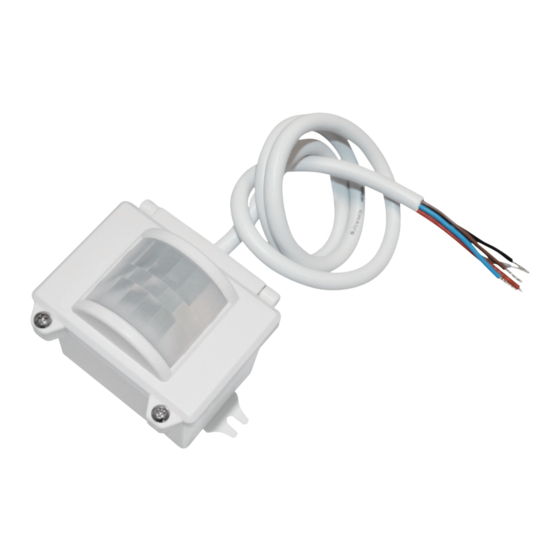

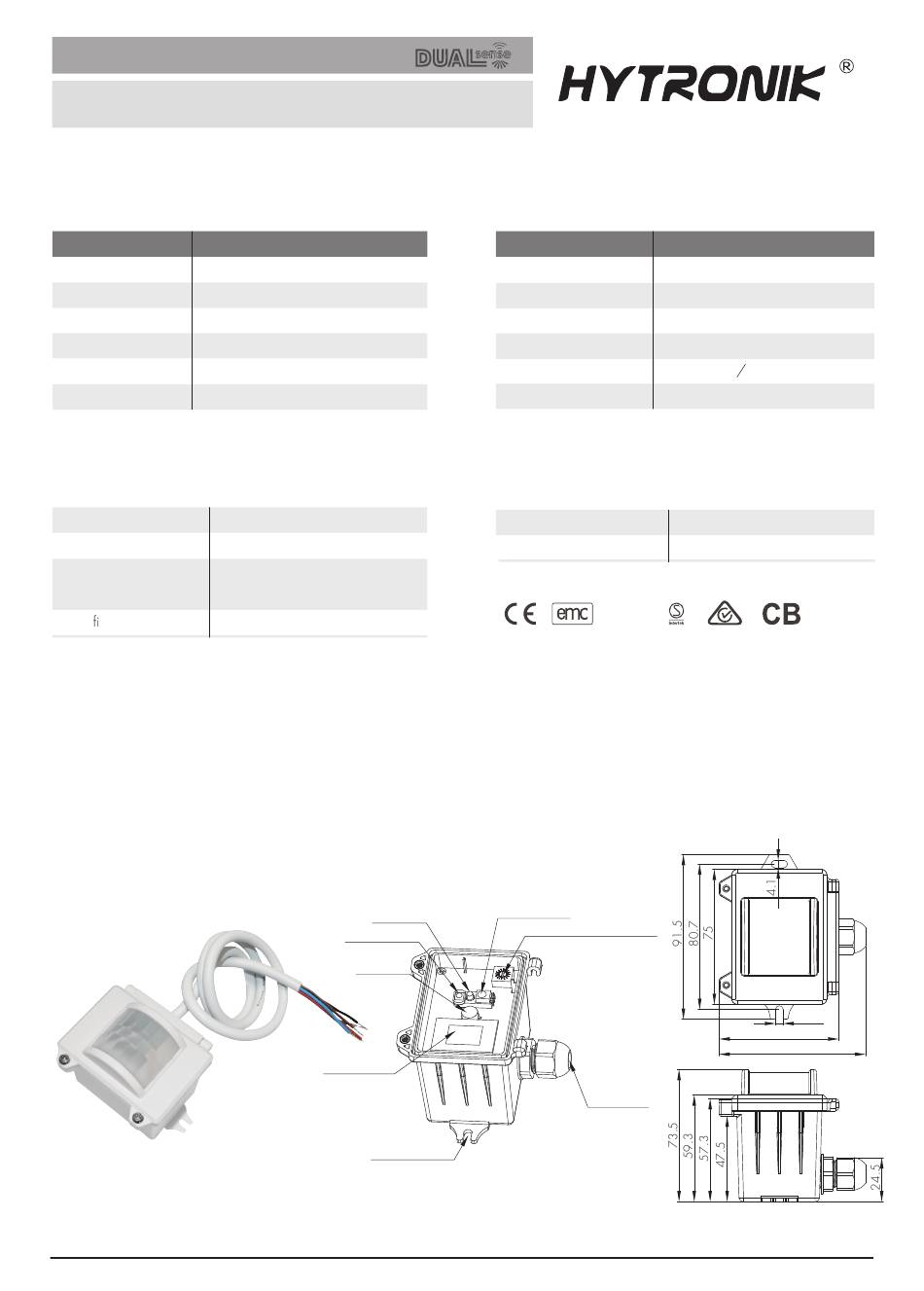

IP65 High Bay Dual Sense Sensor
HIM32
HF and PIR, Daylight Harvest with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Semko, CB, CE , EMC, RED, RCM
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Subject to change without notice.
HIM32
220-240VAC 50/60Hz
<1W
800VA
1000W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
LED indicator
Photocell
PIR
Sensor module
Installation rack
TM
Sensor Data
Model No.
Sensor principle
High Frequency (microwave), PIR
Operation frequency
Transmission power
Sensor mode
4 modes: PIR, HF, PIR+HF, PIR/HF
Detection range
Detection angle
Environment
Operation temperature
IP rating
RED
Infrared receiver
Rotary switch for programing
Cable entry
Edition: 11 Aug. 2023
HIM32
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
Max. ( O x H) 18m x 15m
360
O
Ta: -20
O
C ~ +50
O
C
IP65
IP65
4.1
66.6
81.5
Ver. A0
Page 1/7
Advertisement
Table of Contents
Related Manuals for Hytronik DUAL sense HIM32
Summary of Contents for Hytronik DUAL sense HIM32
- Page 1 IP65 High Bay Dual Sense Sensor HIM32 HF and PIR, Daylight Harvest with Remote Control Technical Data Sensor Data Input Characteristics Model No. Model No. HIM32 HIM32 Sensor principle High Frequency (microwave), PIR Mains voltage 220-240VAC 50/60Hz Stand-by power Operation frequency <1W 5.8GHz +/- 75MHz (HF) Load ratings:...
- Page 2 B. Screw to the Luminaire by conduit 59.6 0.825” Infrared receiver LED indicator Rotary switch for programing Photocell 66.6 89.9 Sensor module Cable entry C. Attach to the shade by clamp Infrared receiver LED indicator Rotary switch for programing 28.5 Photocell Angle adjustment 66.6...
- Page 3 4 optional detection modes via remote control: * HF: Microwave only * PIR: PIR mode only * HF+PIR: both PIR and microwave mode, to decrease the detection capability and detection area. Only when both detections are activated, the motion is considered valid. This is to prevent the sensor from false trigger by heat source, air conditioner, ventilation fans, water pipe and elevators etc...
- Page 4 Rotary Switch Preset A rotary switch is built inside the sensor for scene Detection Daylight Stand-by Stand-by Channel Hold-time selection / fast programming. Total 16 channels range sensor time dim level are available: 100% Disable 100% 1min 50Lux 5min 100% 5min 50Lux 10min...
- Page 5 Settings (Remote Control HRC-11) Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”/ “RESET” to exit this mode. Press button “RESET”, perform DIP Switch/Rotary Switch settings. *The default settings are: Detection range 100%; Hold-time 5min; Stand-by time +∞; threshold Stand-by dimming level 10%;...
- Page 6 Daylight threshold 2 Lux 100 Lux Press buttons in zone “Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux 10 Lux 300 Lux / 100Lux / 300Lux/500Lux / Disable. Shift Send SEMI-AUTO 50 Lux 500 Lux Note: To set daylight sensor at 100Lux / 300Lux/500Lux , press “Shift” button rst. RESET Disable AUTO...
- Page 7 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
