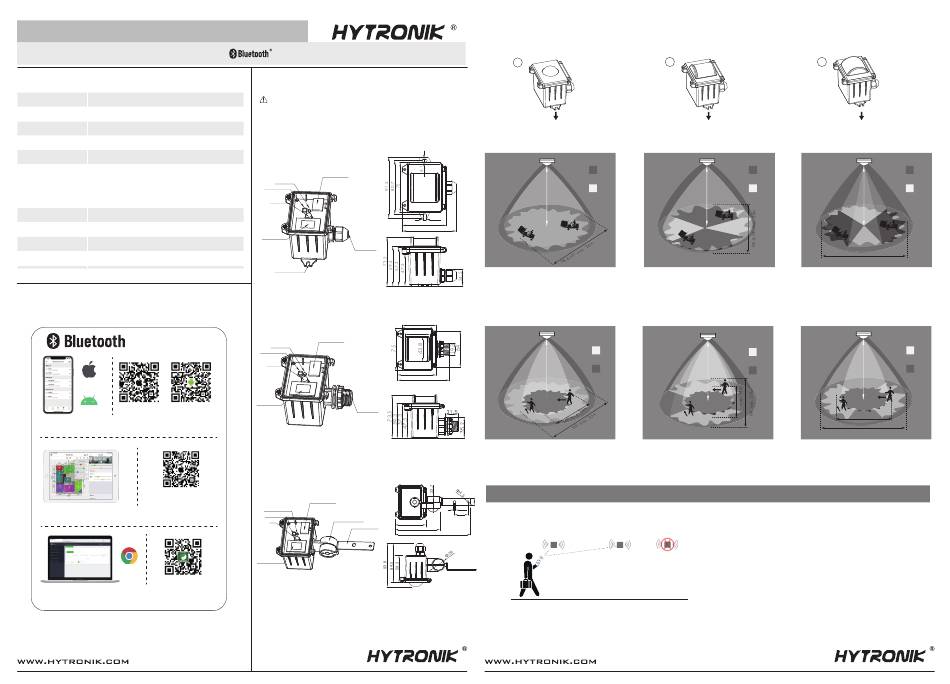

Hytronik HIM84 Installation And Instruction Manual

Installation and Instruction Manual
IP65 HIGH BAY DUAL SENSE SENSOR with
1. Technical Specifications
Product type Tri-level control & Daylight Harvest for Independent DALI
Operating voltage 220-240VAC 50/60Hz
Power supply I guaranteed:64 mA I max.: 80mA U rated:16VDC
Power consumption < 1.5 W
o
Detection angle 360
Max installation height：15m (forklift)/12m (human)
Max detection range：
Detection area (Max.)*
HF: Ø = 24m (forklift)/14m (human)
PIR: Ø = 24m (forklift)/20m (human)
Warmming up time 20s
o o
Operating temperature -20 C ~ +50 C
IP rating IP65
Sensor mode HF, PIR, HF+PIR, HF / PIR

2. Download the App

Free App for set-up and commissioning
5.0 SIG mesh
iOS
for iOS for Android
Android
Smartphone app for both iOS & Android platform
for iPad
Koolmesh Pro app for iPad
Web
for Web
Web app/platform: www.iot.koolmesh.com
HIM84
5.0 SIG Mesh

4. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Bluetooth module
LED indicator
Photocell
PIR
4.1
66.6
81.5
Sensor module
Cable entry
Installation rack
B. Screw to the Luminaire by conduit
59.6
43
Bluetooth module
LED indicator
Photocell
PIR
68.1
91.4
Sensor module
Cable entry
C. Attach to the shade by clamp
Bluetooth module
LED indicator
Photocell
Angle adjustment
PIR
66.6
Luminaire clamp
96.8
163.2
Sensor module
Note:We recommend the mounting distance between sensor to sensor
should be more than 2m to prevent sensors from false-triggering.
HIM84-20230524-A0

5. Three Options for PIR Lens and Detection Patterns

* For single person walking across, the detection range is reduced by 1/3.
1
Detection pattern for forklift
PIR
HF
15m(forklift)
PIR detection: Ø = 24m (max.)
HF detection: Ø = 24m (max.)
Detection pattern for human
PIR
HF
12m(human)
HF detection: Ø = 14m (max.)
PIR detection: Ø = 20m (max.)
Placement Guide and Typical Range
15
4.5
28.5 Smart Phone to Device Range
6-10m
(End user can choose the suitable lens in real application for various requirements)
2 3
PIR
HF
15m(forklift)
PIR detection: Ø = 24m (max.) PIR detection: Ø = 24m (max.)
HF detection: Ø = 24m (max.) HF detection: Ø = 24m (max.)
PIR
HF
12m(human)
HF detection: Ø = 14m (max.) HF detection: Ø = 14m (max.)
PIR detection: Ø = 20m (max.) PIR detection: Ø = 20m (max.)
The smart device with the App installed will have a typical range
of 10m, but varies from device to device. During commissioning,
the installer will need to be in range of the devices when searching
for devices to add to the network.
＞10m
Once the devices have been added to the network via the App,
the devices will start communicating within the wireless mesh.
This means that once the network is complete, all devices are
accessible from the smart device when in a 20m range of a
single point.
PIR
HF
15m(forklift)
PIR & HF: max. 24m
PIR
HF
12m(human)
HF : max. 14m
PIR: max. 20m
HIM84-20230524-A0
