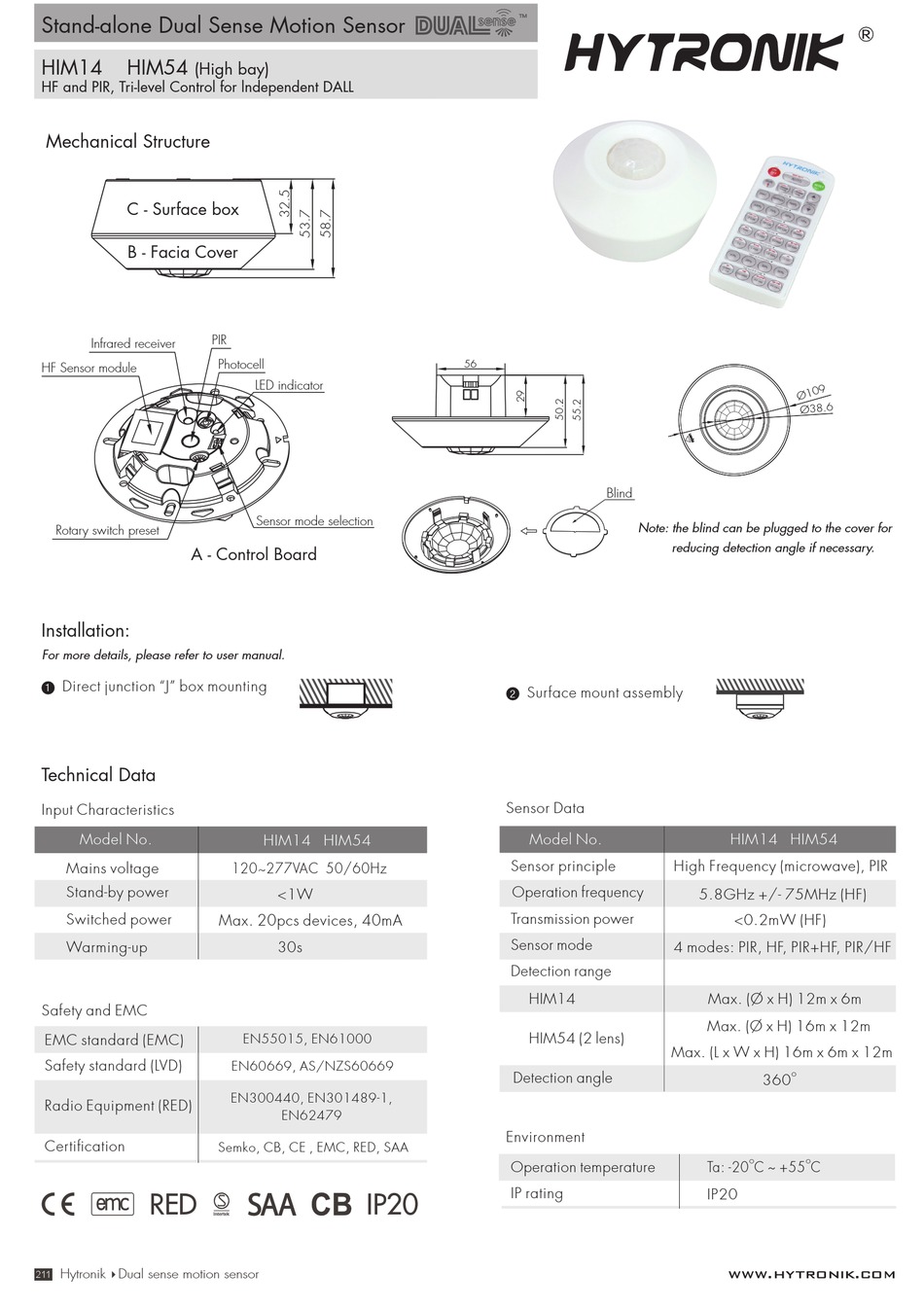

Stand-alone Dual Sense Motion Sensor
HIM14
HIM54
(High bay)
HF and PIR, Tri-level Control for lndependent DALL
Mechanical Structure
C - Surface box
B - Facia Cover
Infrared receiver
HF Sensor module
A - Control Board
Installation:
For more details, please refer to user manual.
Direct junction "J" box mounting
1
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Switched power
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certification
RED

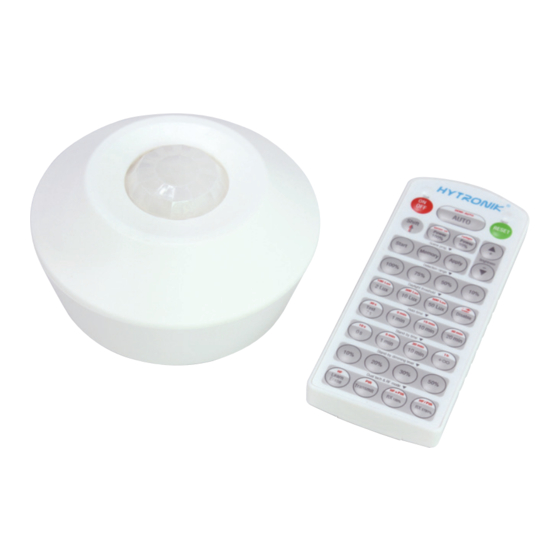

Hytronik Dual sense motion sensor
211
PIR
Photocell
LED indicator
Sensor mode selection
HIM14 HIM54
120~277VAC 50/60Hz
<1W
Max. 20pcs devices, 40mA
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, SAA
IP20
TM
56
Blind
Note: the blind can be plugged to the cover for
Surface mount assembly
2
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Sensor mode
HIM14
HIM54 (2 lens)
Detection angle
Environment
Operation temperature
IP rating
reducing detection angle if necessary.
HIM14 HIM54
High Frequency (microwave), PIR
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
4 modes: PIR, HF, PIR+HF, PIR/HF
Max. (O x H) 12m x 6m
Max. (O x H) 16m x 12m
Max. (L x W x H) 16m x 6m x 12m
O
360
O
O
Ta: -20
C ~ +55
C
IP20
www.hytronik.com
Advertisement
Table of Contents
Related Manuals for Hytronik HIM54
Summary of Contents for Hytronik HIM54
- Page 1 Max. (L x W x H) 16m x 6m x 12m Safety standard (LVD) EN60669, AS/NZS60669 Detection angle EN300440, EN301489-1, Radio Equipment (RED) EN62479 Environment Certification Semko, CB, CE , EMC, RED, SAA Operation temperature Ta: -20 C ~ +55 IP rating IP20 IP20 www.hytronik.com Hytronik Dual sense motion sensor...
- Page 2 The light turns on at full or dims to maintain the lux level. The light output when natural light is automatically with regulates accroding to the level of natural light available. sufficient, even there is presence when natural motion detected. light is insufficient. www.hytronik.com Hytronik Dual sense motion sensor...
- Page 3 Press the buttons to select light output at 80% (at initial 10,000 hours) or 100%. Note: “Sensor off” and “Twilight” functions are disabled. Brightness +/- Press the buttons to adjust the light brightness to reset the target lux level. www.hytronik.com Hytronik Dual sense motion sensor...
- Page 4 HF+PIR: the light is on when both HF and PIR sensors are activated. HF/PIR: the light is on when HF or PIR sensors are activated. 2. Learn / Erase, Transmit, RX100% and RX STBY% are disabled. www.hytronik.com Hytronik Dual sense motion sensor...
- Page 5 200Lux +∞ HRC-11. The last action controls. 100% 30min 400Lux +∞ 100% 100Lux Wiring Diagram LED+ LED+ LED Driver LED Driver LED _ DALI+ DALI+ DALI DALI HIM15 HIM15 DALI DALI Detection Pattern (HIM14) www.hytronik.com Hytronik Dual sense motion sensor...
- Page 6 End user can choose the suitable PIR lens in real application to fulfill various requirements. Two options are offered for selection: H x D: 12 x 16m (max. ) PIR detection: L x W x H:16 x 6 x 12m (max.) HF detection: H x D:12 x 16m (max. ) www.hytronik.com Hytronik Dual sense motion sensor...
