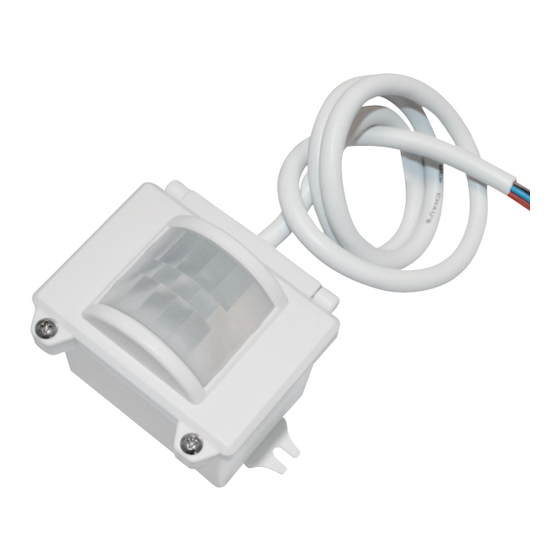

IP65 High Bay Dual Sense Sensor
HIM32
HF and PIR, Daylight Harvest with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certification
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
www.hytronik.com
HIM32
220-240VAC 50/60Hz
<1W
800VA
1000W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
LED indicator
Photocell
PIR
Sensor module
Installation rack
TM
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Sensor mode
Detection range
Detection angle
Environment
Operation temperature
IP rating
RED
Infrared receiver
Rotary switch for programing
Cable entry
HIM32
High Frequency (microwave), PIR
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
4 modes: PIR, HF, PIR+HF, PIR/HF
Max. ( O x H) 18m x 15m
O
360
O
O
Ta: -20
C ~ +50
C
IP65
IP65
4.1
66.6
81.5
Hytronik Dual sense motion sensor
238
