Installing The Internal Sim-Card - Logic IO RTCU LX2 pro Technical Manual

RTCU LX2 pro Technical Manual V1.00
Advanced Automotive M2M/IoT Gateway

Installing the Internal SIM-card

In order to gain access to the internal SIM-card reader, it is necessary to disassemble the device, as
described in Appendix A.
The SIM card reader is lid-based with a mechanical lock to secure a safe installation.
1. Open the hinged lid of the reader and orientate the SIM card as shown below.
2. Insert the SIM card into the lid of the card reader.
3. Close the lid and slide the metal locking mechanism into the locked position
4. Assemble the unit again.
To remove the card, slide the metal locking mechanism to the unlocked position, as shown with an
arrow and text on the lid, and open the lid. The SIM-card can now be removed.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark

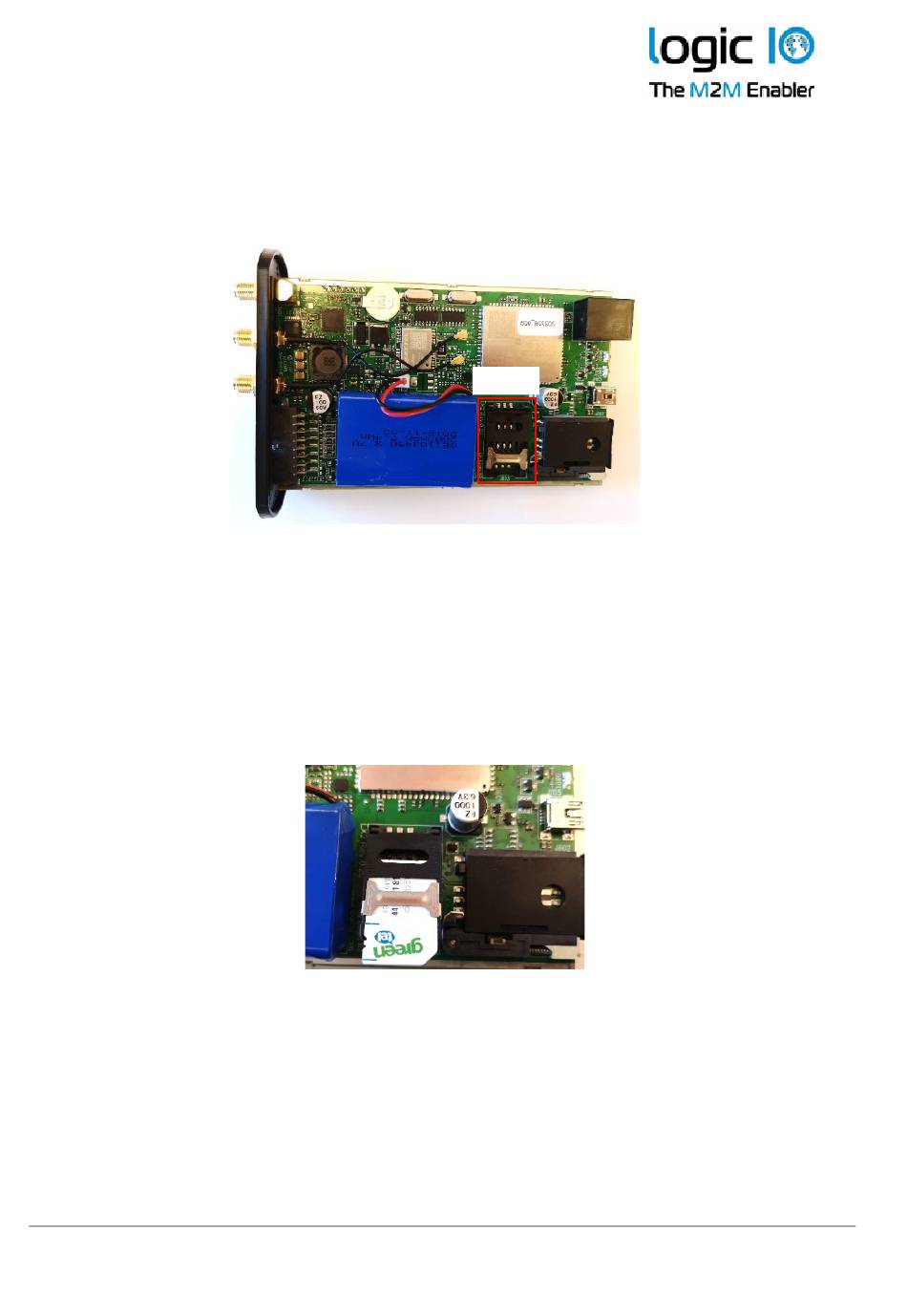

Internal SIM-
