Sim-Card Readers; Internal / External Sim-Card Readers; Installing The External Sim-Card - Logic IO RTCU LX2 pro Technical Manual

RTCU LX2 pro Technical Manual V1.00
Advanced Automotive M2M/IoT Gateway

SIM-Card Readers

Internal / External SIM-Card Readers

The RTCU LX2 pro contains an internal and an external standard mini-SIM card reader.
The external reader is located on the front panel (please see the graphical view) and is easily accessed.
The internal reader is located on the top side of the baseboard. Installing a SIM card in both readers
simultaneously and switching programmatically between them from the application is possible. The
RTCU LX2 pro is also prepared for an M2M chip internally, which shares the SIM card signals with
the internal SIM-card reader. Please contact Logic IO for information on this option.

Installing the External SIM-card

The SIM card reader has a tray to insert the SIM card into, which is then pushed into the SIM card
reader, until it is locked securely in place.

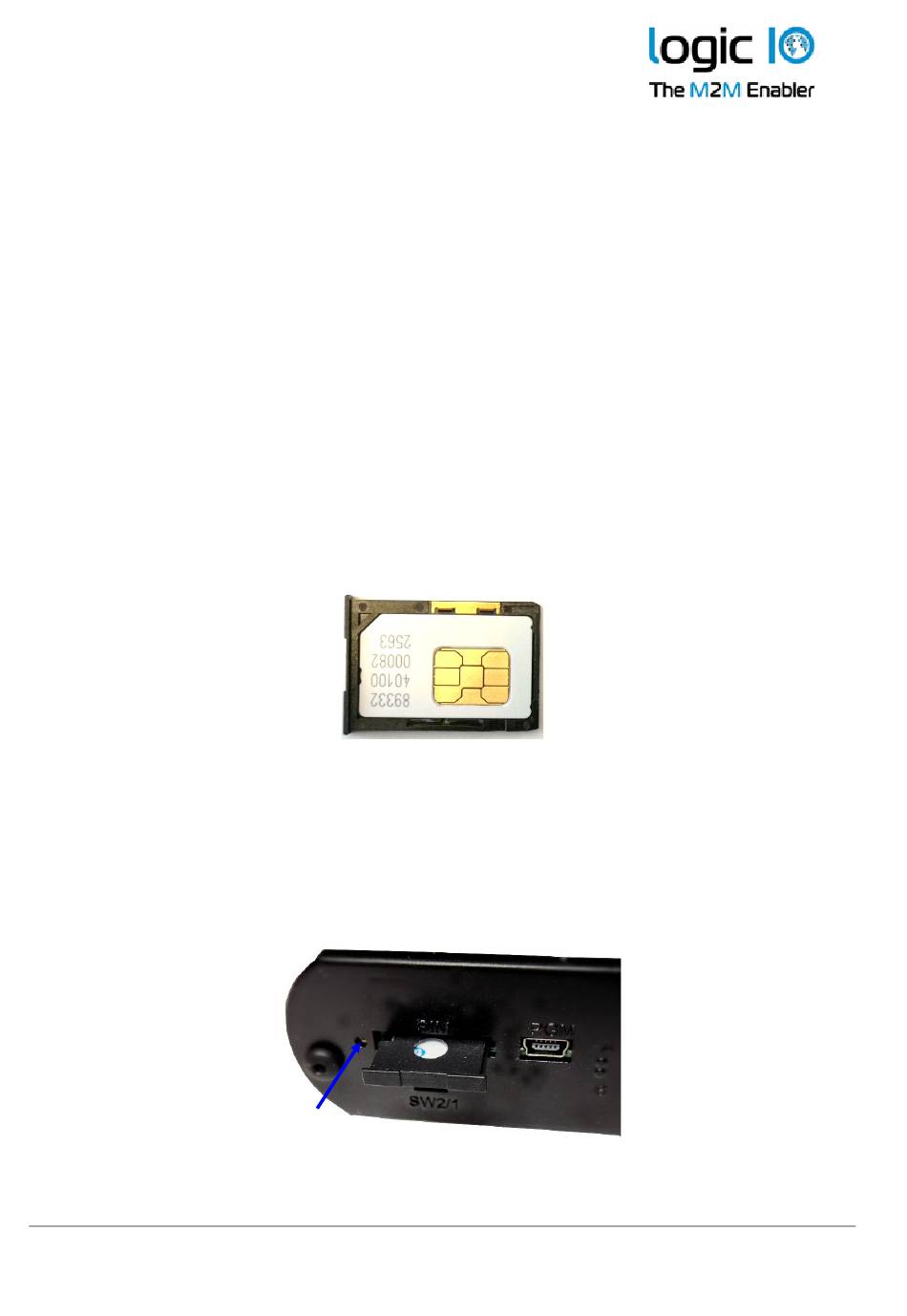

Below is the SIM-card inserted in the tray:
SIM-card orientation in the tray
To remove the card, push the ejection lever inside the hole next to the SIM card with a paper clip or
other small tool until the tip of the tray is outside the front end-cap. The tray can then be pulled out
without much resistance.
Eject
