Appendix B - Configuration Dip-Switches - Logic IO RTCU LX2 pro Technical Manual

RTCU LX2 pro Technical Manual V1.00
Advanced Automotive M2M/IoT Gateway
Appendix B – Configuration DIP-switches

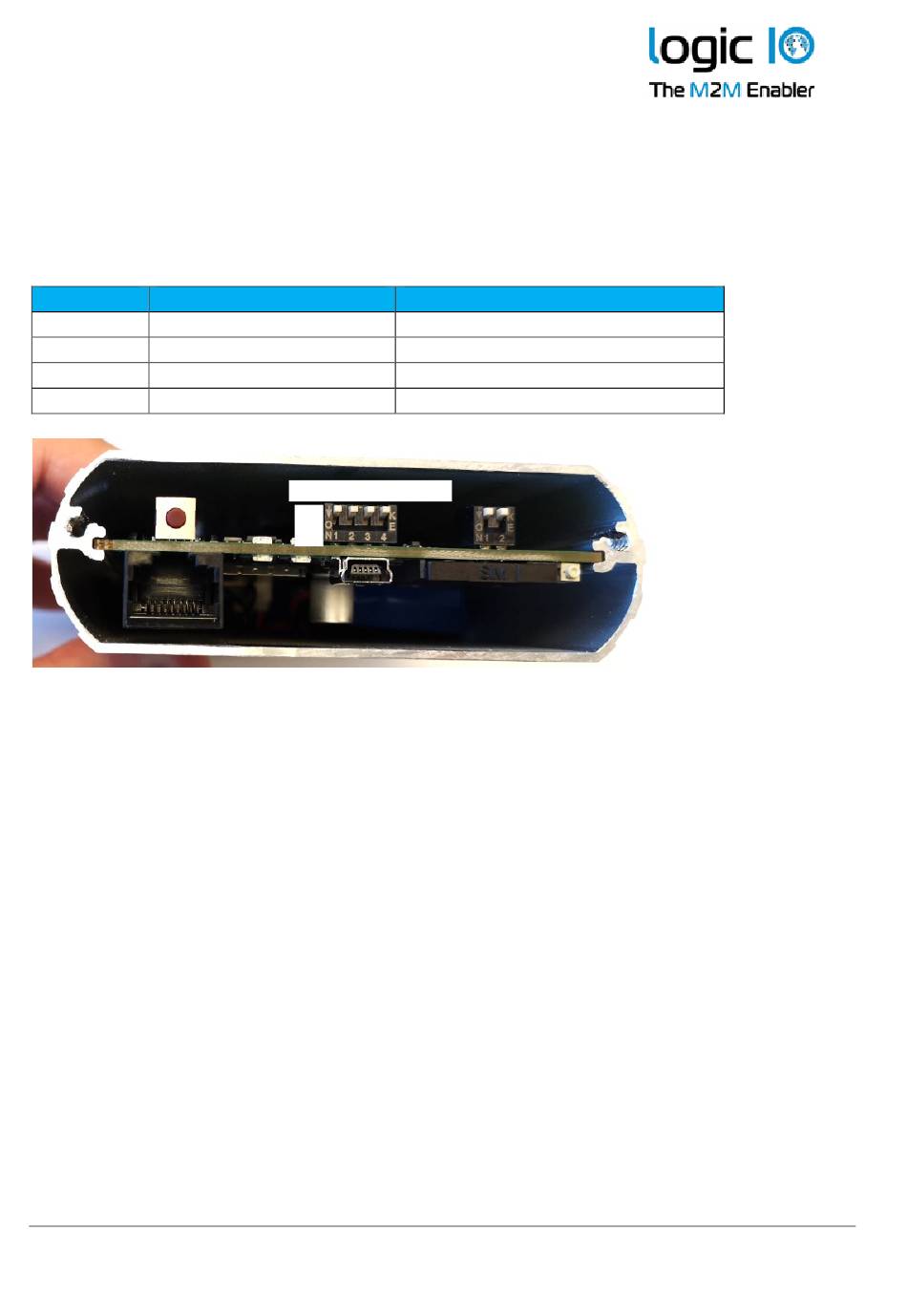

The configuration jumper DIP-switch is located near the front side of the board, behind the front
panel. To gain access it is necessary to remove the front end-cap using a Torx TX10 screwdriver.
The DIP switch enabled the following configuration options:
DIP-switch Function
1 CAN bus 1 write enable
2 CAN bus 2 write enable
3 CAN bus 2 line termination
4 RS485 port line termination
The DIP-switches can be accessed by removing the front end-cap. It is, however, not necessary to
remove the board from the encapsulation.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
Configuration
ON: write enabled
ON: write enabled
ON: 120 ohm line termination enabled
ON: 120 ohm line termination enabled
Configuration DIP-Switch
OFF
ON
Page 36 of 39
