RTCU LX2 pro Technical Manual V1.00
Advanced Automotive M2M/IoT Gateway

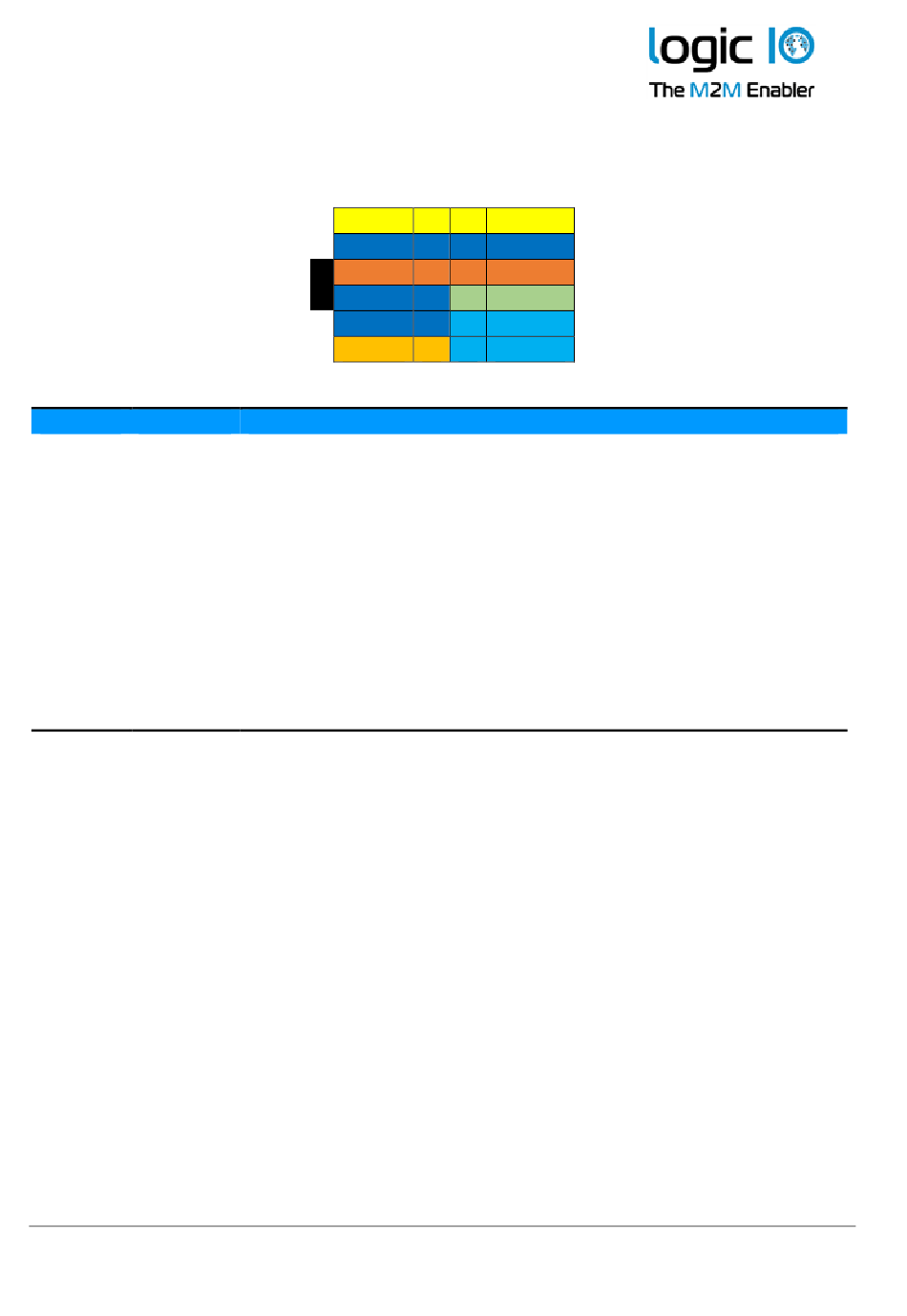

Connector X2: 12 pin COM connector

Pin Name
1 1WIRE
2 GND
3 CAN1-H
4 DIN6
5 RS485A
6 RS485B
7 1W-LED
8 GND
9 CAN1-L
10 GND
11 GND
12 DC-Out
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
1W-LED
GND
CAN1-L
GND
GND
DC-Out
Description
1-Wire bus
Signal Ground
CAN-bus 1 H-signal
Digital input 6
RS485 non-inverting signal
RS485 inverting signal
1-Wire ID-Button LED
Signal Ground
CAN-bus 1 L-signal
Signal Ground
Signal Ground
5V/300mA DC-Out for external equipment.
Page 11 of 39
7 1 1WIRE
8 2 GND
9 3 CAN1-H
10 4 DIN6
11 5 RS485A
12 6 RS485B
